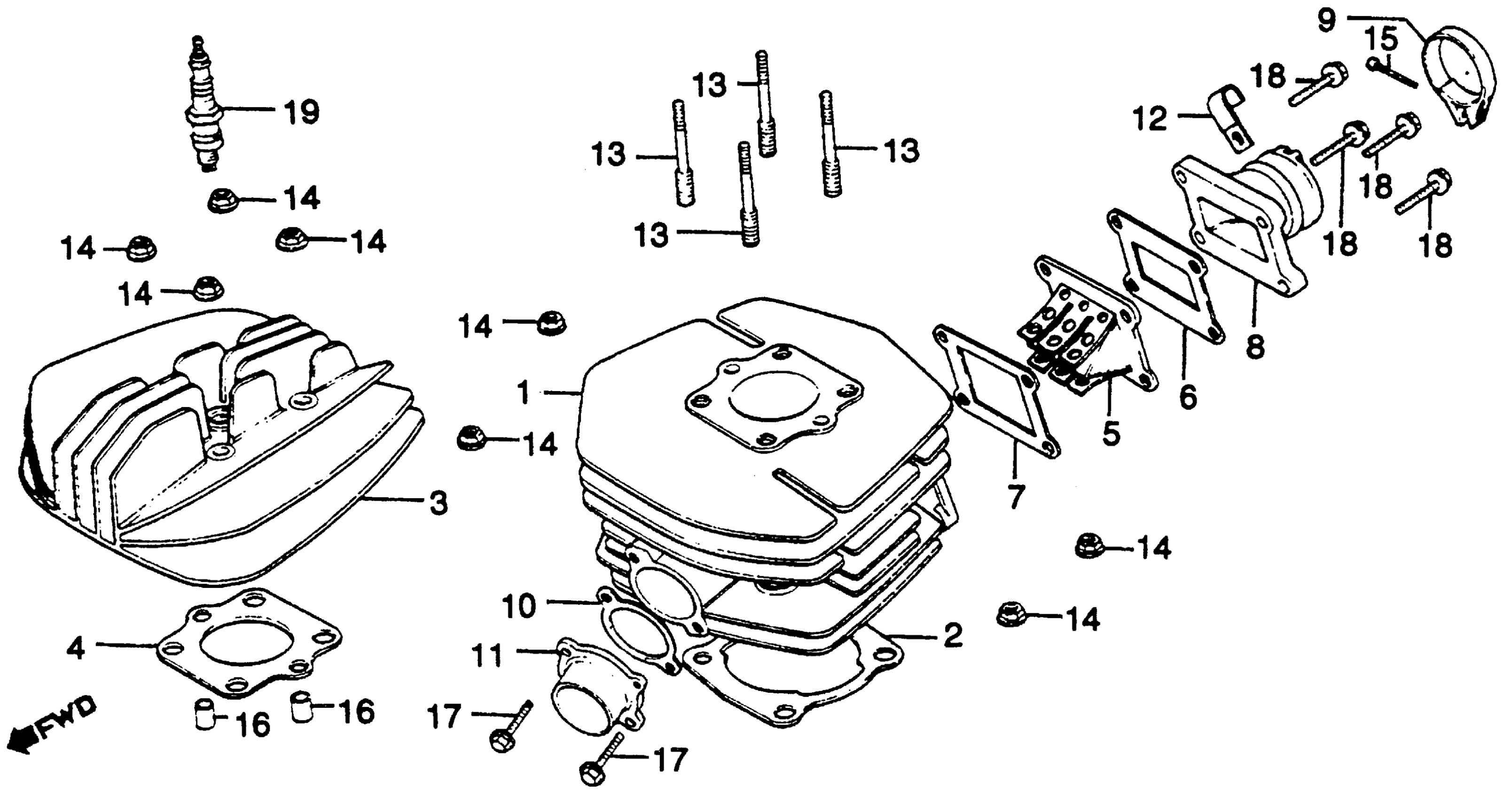

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 CYLINDER HEAD + CYLINDER Diagram

CYLINDER (NOT AVAILABLE)

12100-466-000

Unavailable

GASKET, CYLINDER This part replaces 12191-444-000.

12191-444-306

$11.36

GASKET, CYLINDER

12191-444-306

$11.36

CYLINDER HEAD (NOT AVAILABLE)

12200-466-000

Unavailable

GASKET, CYLINDER HEAD (NOT AVAILABLE)

12251-466-000

Unavailable

VALVE, REED

14100-466-003

Unavailable

GASKET A, REED VALVE This part replaces 14131-444-000.

14131-444-306

Unavailable

GASKET B, REED VALVE This part replaces 14132-444-000.

14132-444-306

Unavailable

INSULATOR, CARBURETOR (NOT AVAILABLE)

16210-466-000

Unavailable

BAND, INSULATOR (NOT AVAILABLE)

16223-444-000

Unavailable

GASKET, EX. JOINT This part replaces 18291-466-000.

18291-466-306

Unavailable

JOINT, EX. PIPE (NOT AVAILABLE)

18351-466-000

Unavailable

CLAMP, CABLE

32111-323-000

$3.98

BOLT, CYLINDER STUD (NOT AVAILABLE)

90031-444-000

Unavailable

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

SCREW, PAN (5X20)

93500-05020-0A

$1.49

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59644.

98079-59679

$5.80

SPARK PLUG (BR9EG) (NGK)

98079-59679

$5.80

SPARK PLUG (B10EV) (NGK) (NOT AVAILABLE) This part replaces 98079-60560.

98079-60644

Unavailable

SPARK PLUG (B10EV) (NGK) (NOT AVAILABLE)

98079-60644

Unavailable
