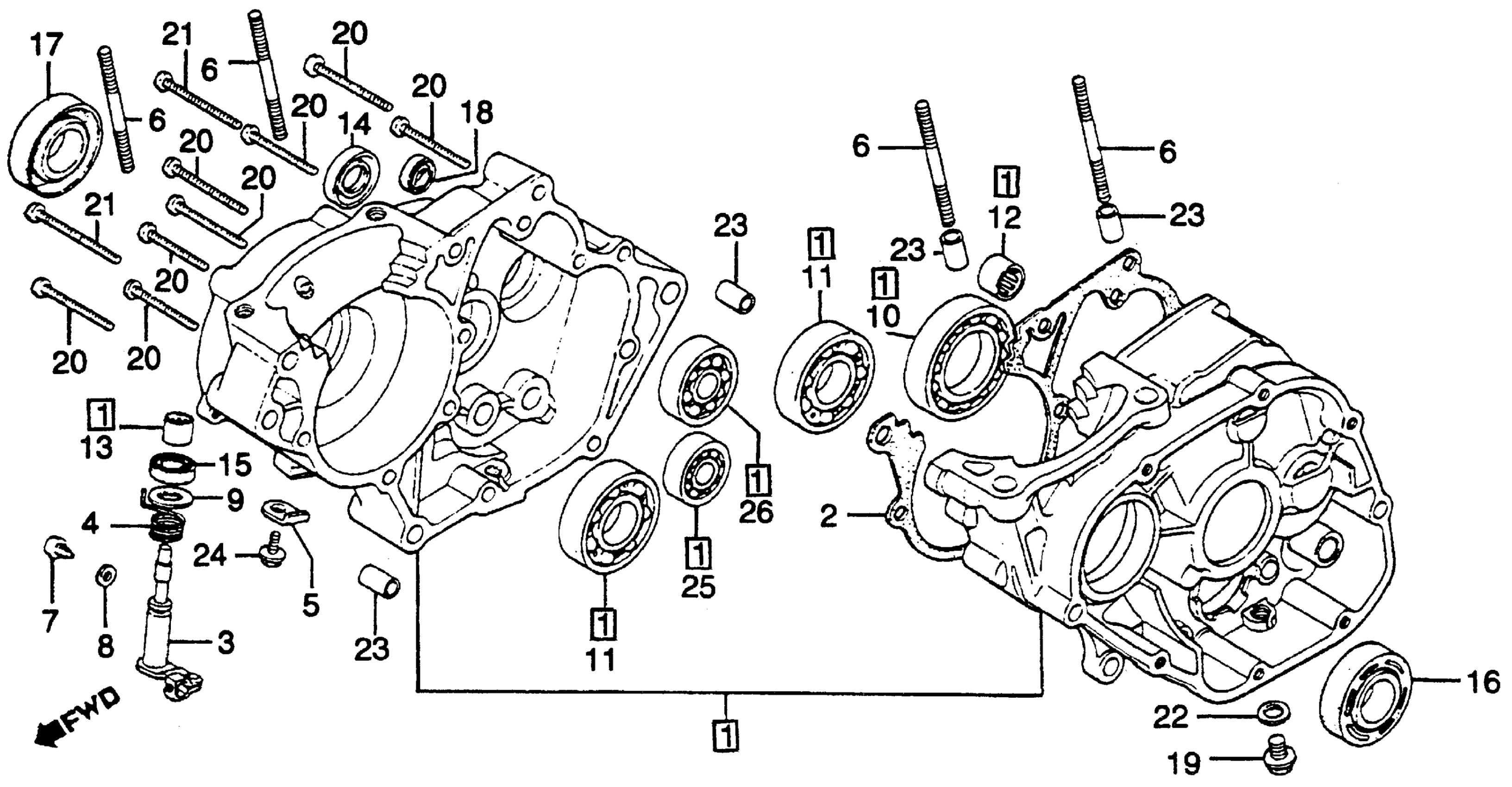

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-466-305

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-444-000.

11191-444-306

Unavailable

3

LIFTER, CLUTCH (NOT AVAILABLE) This part replaces 22810-444-000.

22810-444-010

Unavailable

3

LIFTER, CLUTCH (NOT AVAILABLE)

22810-444-010

Unavailable

4

SPRING, LEVER (NOT AVAILABLE)

22815-444-000

Unavailable

5

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22861-444-000

Unavailable

6

BOLT, CYLINDER STUD (NOT AVAILABLE)

90031-444-000

Unavailable

7

BOLT, SPECIAL (6MM)

90035-360-000

Unavailable

8

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

9

WASHER, PLAIN (14MM) (NOT AVAILABLE)

90549-444-000

Unavailable

10

BEARING, BALL (16006) (KOYO) (NOT AVAILABLE)

91001-612-004

Unavailable

10

BEARING, BALL (16006) (KOYO) (NOT AVAILABLE) This part replaces 91001-612-008.

91001-612-004

Unavailable

11

BEARING, RADIAL BALL (63/22) This part replaces 91002-KE1-014.

91002-KY4-901

$24.38

11

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

11

BEARING, RADIAL BALL (63/22) This part replaces 91002-466-008.

91002-KY4-901

$24.38

12

BEARING, NEEDLE (15X23X12) (TOMUSON)

91016-360-006

Unavailable

13

BEARING, NEEDLE (14MM) (TOYO) This part replaces 91101-121-690.

91101-121-691

$27.17

13

BEARING, NEEDLE

91101-121-691

$27.17

14

OIL SEAL (20X32X6) (NOK)

91201-360-005

$4.87

14

OIL SEAL (20X32X6) (NOK) This part replaces 91201-444-000.

91201-360-005

$4.87

15

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-003.

91202-444-023

$3.78

15

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-005.

91202-444-023

$3.78

15

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.78

15

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.78

15

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

16

OIL SEAL (30X45X8) (ARAI) This part replaces 91203-KS6-003.

91203-KS6-004

$15.27

16

OIL SEAL (30X45X8) (ARAI)

91203-KS6-004

$15.27

16

OIL SEAL (30X45X8) (ARAI) This part replaces 91203-466-003.

91203-KS6-004

$15.27

17

OIL SEAL (20X35X8)

91204-444-005

Unavailable

18

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

18

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

19

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

20

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

20

SCREW, PAN (6X45)

93500-06045-0A

$1.49

21

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

21

SCREW, PAN (6X80)

93500-06080-0A

$1.49

22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

23

PIN A, DOWEL (10X16)

94301-10160

$2.28

24

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

24

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

25

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35

26

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
