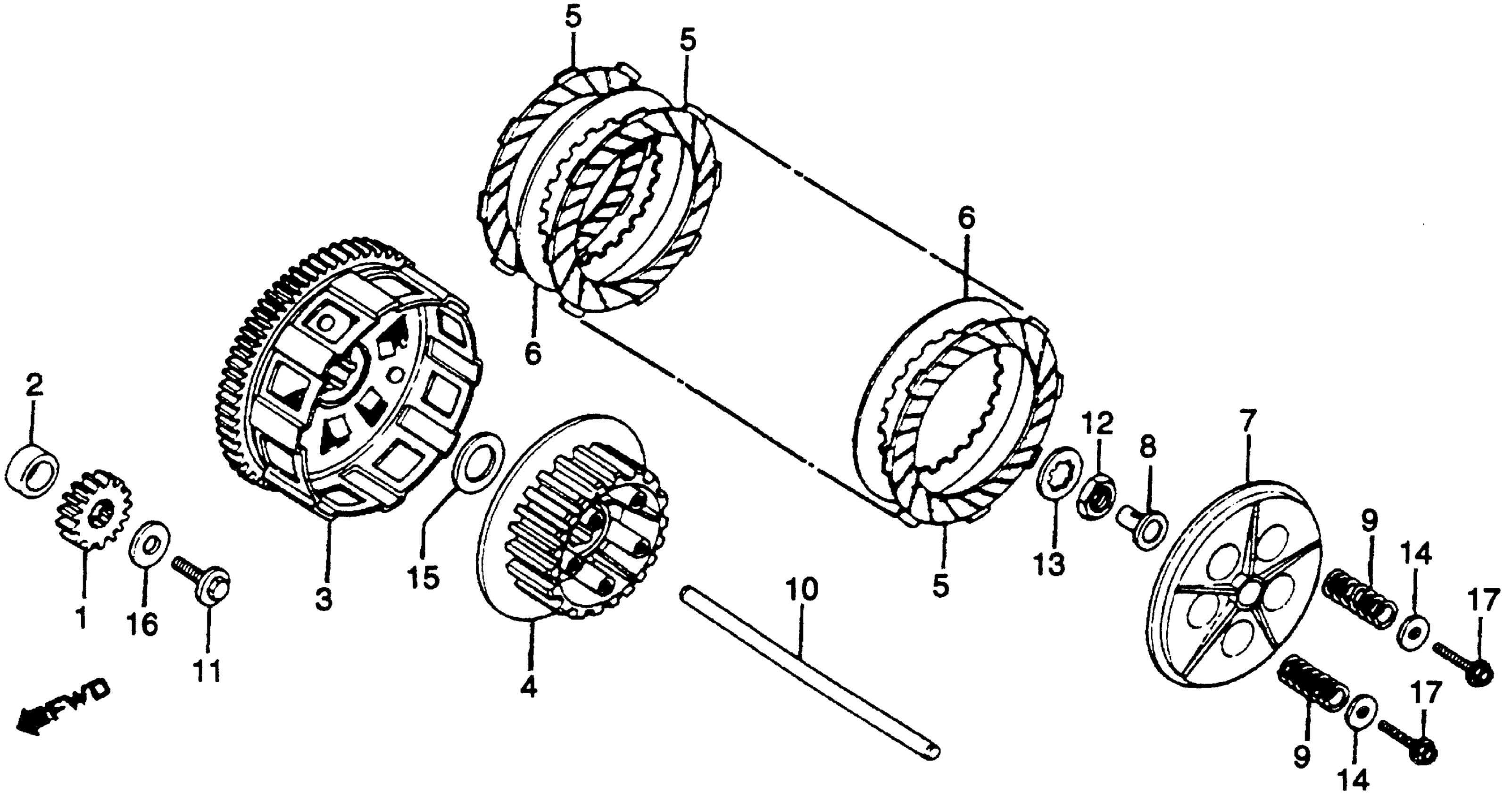

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE (NOT AVAILABLE)
13615-444-000
Unavailable
2
COLLAR, DRIVE GEAR (NOT AVAILABLE)
13617-466-000
Unavailable
3
CLUTCH (OUTER) (NOT AVAILABLE)
22100-444-010
Unavailable
4
CENTER, CLUTCH (NOT AVAILABLE)
22120-444-000
Unavailable
5
DISK, CLUTCH FRICTION This part replaces 22201-444-000.
22201-444-306
Unavailable
5
DISK, CLUTCH FRICTION
22201-444-306
Unavailable
6
PLATE B, CLUTCH
22321-360-000
Unavailable
7
PLATE, CLUTCH PRESSURE (NOT AVAILABLE)
22351-444-000
Unavailable
8
PIECE, CLUTCH LIFTER
22352-444-000
Unavailable
9
SPRING, CLUTCH
22401-430-000
Unavailable
10
ROD, CLUTCH LIFTER
22850-444-000
Unavailable
12
NUT, LOCK (18MM)
90235-428-000
Unavailable
12
NUT, LOCK (18MM) This part replaces 90235-444-000.
90235-428-000
Unavailable
13
WASHER, LOCK (18MM) (NOT AVAILABLE)
90411-444-000
Unavailable
15
WASHER (18MM) (NOT AVAILABLE)
90456-444-000
Unavailable
