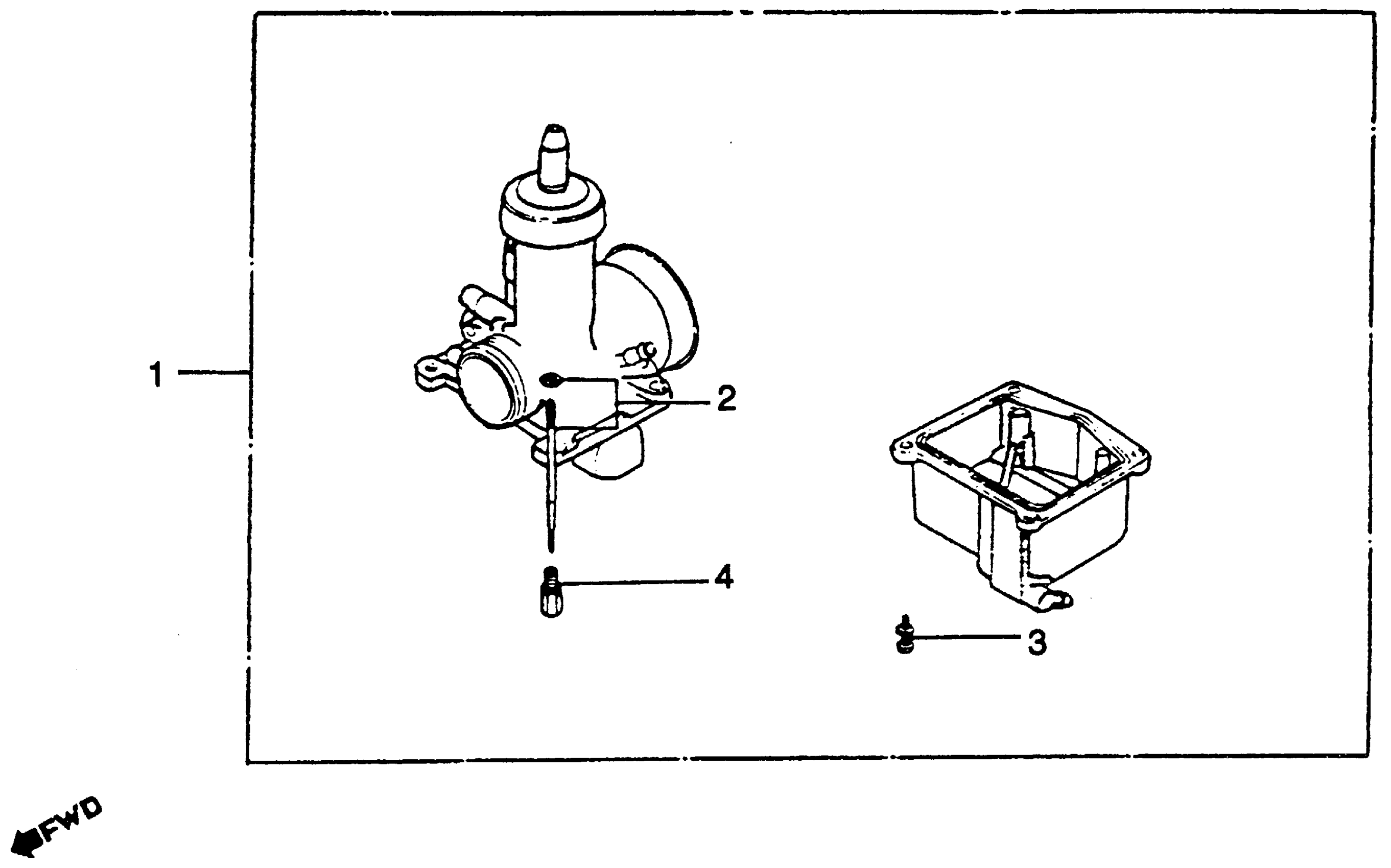

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 CARBURETOR + OPTIONAL PARTSKIT Diagram

#

Description
Price

1

PARTS KIT, CARBURETOR (NOT AVAILABLE)

16020-466-004

Unavailable

2

NEEDLE SET, JET (31A) (NOT AVAILABLE)

16201-430-000

Unavailable

2

NEEDLE SET, JET (31B) (NOT AVAILABLE)

16202-430-000

Unavailable

2

NEEDLE SET, JET (31D) (NOT AVAILABLE)

16204-430-000

Unavailable

2

NEEDLE SET, JET (31E) (NOT AVAILABLE)

16205-430-000

Unavailable

2

NEEDLE SET, JET (31K) (NOT AVAILABLE)

16207-444-004

Unavailable

2

NEEDLE SET, JET (31L) (NOT AVAILABLE)

16208-444-004

Unavailable

2

NEEDLE SET, JET (31M) (NOT AVAILABLE) NEEDLE SET, JET (31G)

16209-444-004

Unavailable

2

NEEDLE SET, JET (31G) (NOT AVAILABLE) NEEDLE SET, JET (31H)

16207-430-000

Unavailable

2

NEEDLE SET, JET (31H) (NOT AVAILABLE)

16208-430-000

Unavailable

3

SCREW-WASHER (4X14)

93892-04014-08

$1.49

4

JET, MAIN (#162) This part replaces 99101-357-1620.

99113-GHB-1620

$9.41

4

JET, MAIN (#165) This part replaces 99101-357-1650.

99113-GHB-1650

$9.41

4

JET, MAIN (#168) This part replaces 99101-357-1680.

99113-GHB-1680

$9.41

4

JET, MAIN (#170)

99101-357-1700

$9.41

4

JET, MAIN (#165)

99113-GHB-1650

$9.41

4

JET, MAIN (#170) This part replaces 99113-GHB-1700.

99101-357-1700

$9.41

4

JET, MAIN (#160) This part replaces 99101-357-1600.

99113-GHB-1600

$9.44

4

JET, MAIN (#172) JET, MAIN (#178)

99101-357-1720

$9.41

4

JET, MAIN (#178) This part replaces 99101-357-1780.

99113-GHB-1780

$9.41

4

JET, MAIN (#180) This part replaces 99101-357-1800.

99113-GHB-1800

$9.41

4

JET, MAIN (#182) This part replaces 99101-357-1820.

99113-GHB-1820

$9.44

4

JET, MAIN (#185) This part replaces 99101-357-1850.

99113-GHB-1850

$9.44

4

JET, MAIN (#188) This part replaces 99101-357-1880.

99113-GHB-1880

$9.41

4

JET, MAIN (#190) This part replaces 99101-357-1900.

99113-GHB-1900

$9.98

4

JET, MAIN (#160) JET, MAIN (#172)

99113-GHB-1600

$9.44

4

JET, MAIN (#172) JET, MAIN (#155) This part replaces 99113-GHB-1720.

99101-357-1720

$9.41

4

JET, MAIN (#178) JET, MAIN (#180)

99113-GHB-1780

$9.41

4

JET, MAIN (#180) JET, MAIN (#182)

99113-GHB-1800

$9.41

4

JET, MAIN (#182) JET, MAIN (#185)

99113-GHB-1820

$9.44

4

JET, MAIN (#185) JET, MAIN (#188)

99113-GHB-1850

$9.44

4

JET, MAIN (#188)

99113-GHB-1880

$9.41
