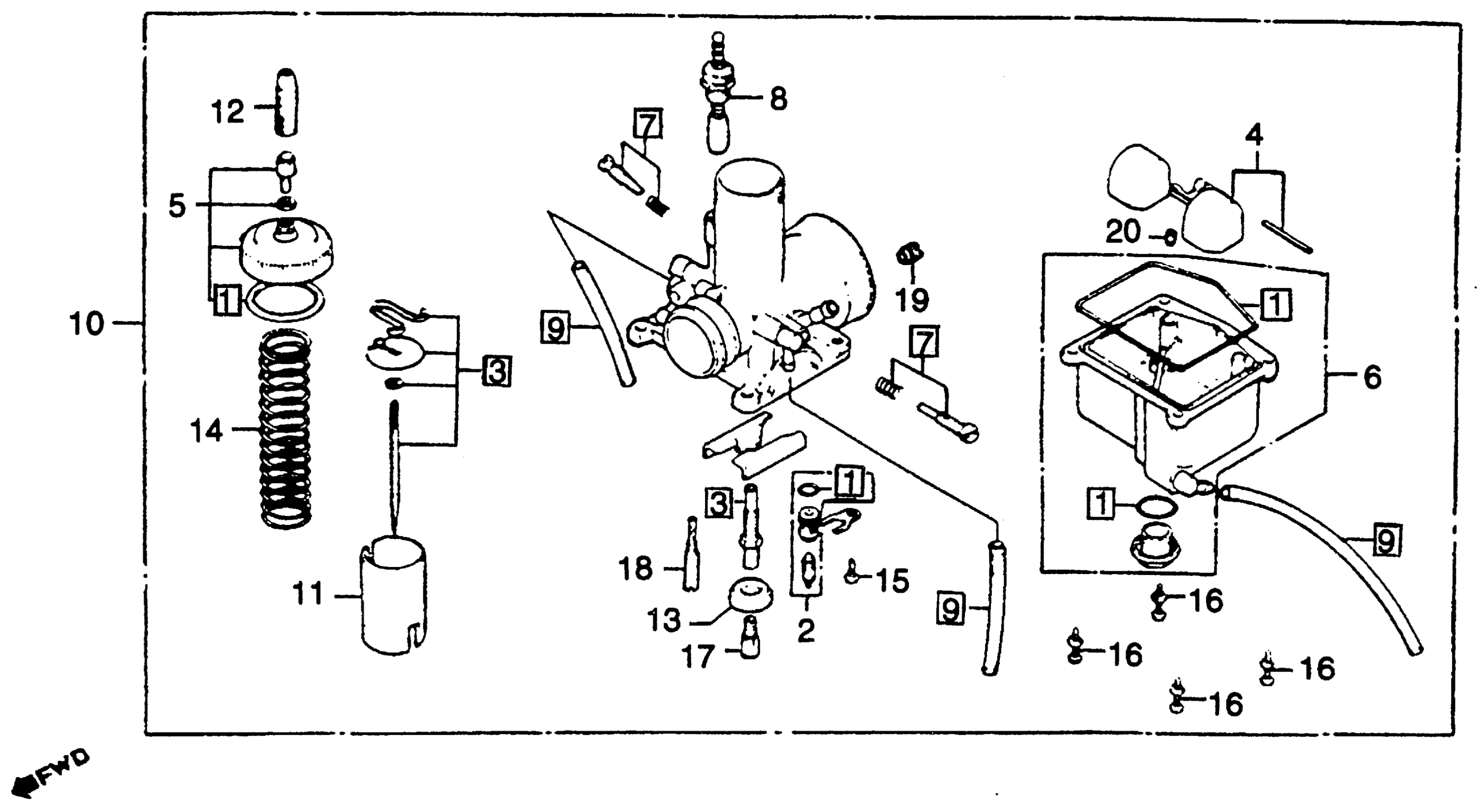

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 CARBURETOR + OPTIONAL PARTS Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-444-004.

16010-430-305

Unavailable

2

VALVE SET, FLOAT

16011-356-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-360-004.

16011-356-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-360-700.

16011-356-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-444-004

Unavailable

4

FLOAT SET

16013-360-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-444-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-430-010

Unavailable

7

SCREW SET (NOT AVAILABLE) This part replaces 16016-360-004.

16016-400-004

Unavailable

8

VALVE SET, STARTER (NOT AVAILABLE)

16046-430-020

Unavailable

9

TUBE SET, FUEL (NOT AVAILABLE)

16048-430-000

Unavailable

10

CARBURETOR ASSY.

16100-444-811

Unavailable

11

VALVE, THROTTLE

16112-444-811

Unavailable

11

VALVE, THROTTLE | (Optional).

16112-444-831

Unavailable

11

VALVE, THROTTLE (NOT AVAILABLE) | (Optional).

16112-444-841

Unavailable

12

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

12

CAP, CABLE SEALING

16118-166-004

$8.08

13

HOLDER, JET (NOT AVAILABLE)

16168-395-004

Unavailable

14

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16211-444-004

Unavailable

15

SCREW, PAN (4X10)

93500-04010-0A

$1.49

16

SCREW-WASHER (4X14)

93892-04014-08

$1.49

17

JET, MAIN (#160) This part replaces 99101-357-1600.

99113-GHB-1600

$9.44

17

JET, MAIN (#160)

99113-GHB-1600

$9.44

18

JET, SLOW (#55) | (Optional).

99103-358-0550

Unavailable

18

JET, SLOW (#60) (NOT AVAILABLE)

99103-358-0600

Unavailable

18

JET, SLOW (#65) (NOT AVAILABLE) | (Optional).

99103-358-0650

Unavailable

19

JET, AIR (#200)

99105-357-2000

Unavailable

20

JET, STARTER (#100) (NOT AVAILABLE)

99164-601-1000

Unavailable
