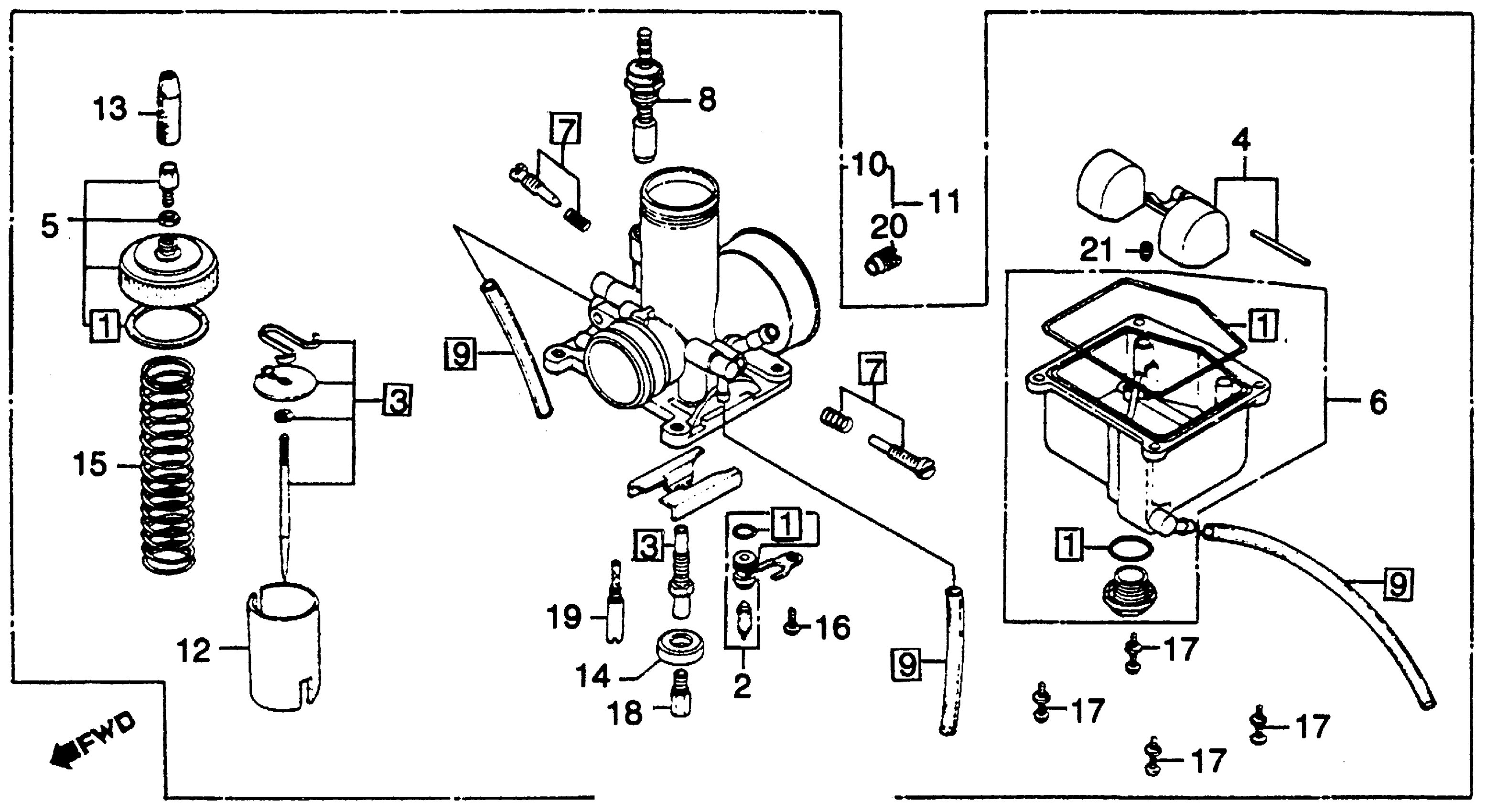

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 CARBURETOR Diagram
#
Description
Price
1
GASKET SET This part replaces 16010-444-004.
16010-430-305
Unavailable
2
VALVE SET, FLOAT
16011-356-004
Unavailable
2
VALVE SET, FLOAT This part replaces 16011-360-004.
16011-356-004
Unavailable
2
VALVE SET, FLOAT This part replaces 16011-360-700.
16011-356-004
Unavailable
3
NEEDLE SET, JET (NOT AVAILABLE)
16012-444-004
Unavailable
4
FLOAT SET
16013-360-004
Unavailable
5
TOP SET (NOT AVAILABLE)
16014-444-004
Unavailable
6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-430-010
Unavailable
7
SCREW SET (NOT AVAILABLE) This part replaces 16016-360-004.
16016-400-004
Unavailable
8
VALVE SET, STARTER (NOT AVAILABLE)
16046-430-020
Unavailable
9
TUBE SET, FUEL (NOT AVAILABLE)
16048-430-000
Unavailable
11
CARBURETOR ASSY. (NOT AVAILABLE)
16100-466-004
Unavailable
12
VALVE, THROTTLE
16112-444-811
Unavailable
12
VALVE, THROTTLE | (Optional).
16112-444-831
Unavailable
12
VALVE, THROTTLE (NOT AVAILABLE) | (Optional).
16112-444-841
Unavailable
14
HOLDER, JET (NOT AVAILABLE)
16168-395-004
Unavailable
15
SPRING, COMPRESSION COIL (NOT AVAILABLE)
16211-444-004
Unavailable
19
JET, SLOW (#55) | (Optional).
99103-358-0550
Unavailable
19
JET, SLOW (#60) (NOT AVAILABLE)
99103-358-0600
Unavailable
19
JET, SLOW (#65) (NOT AVAILABLE) | (Optional).
99103-358-0650
Unavailable
20
JET, AIR (#200)
99105-357-2000
Unavailable
21
JET, STARTER (#100) (NOT AVAILABLE)
99164-601-1000
Unavailable
