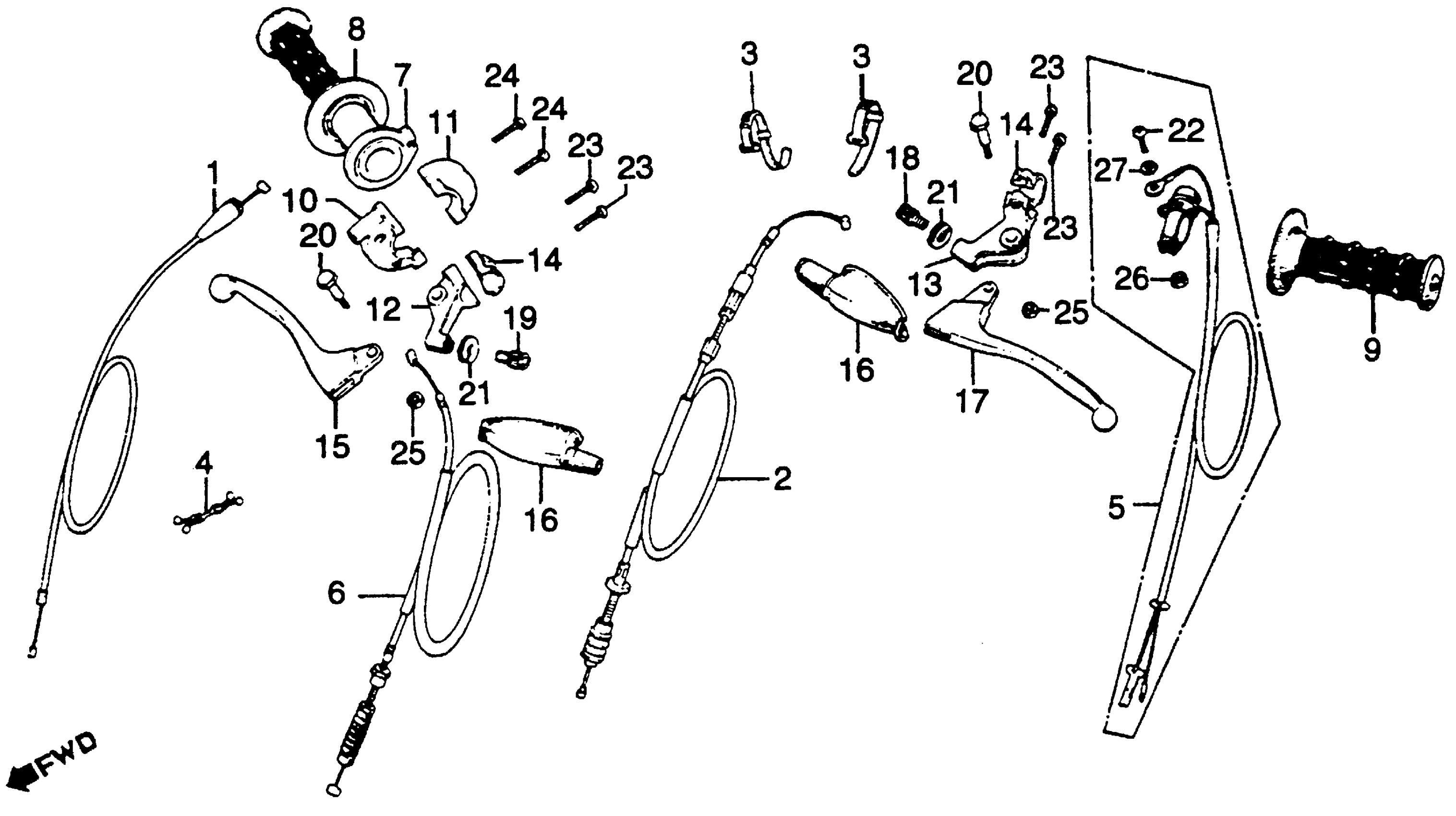

Honda CR125RA (79) ELSINORE, JPN, VIN# JE01-2000010 TO JE01-2010778 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-434-810

Unavailable

1

CABLE, THROTTLE (NOT AVAILABLE) This part replaces 17910-444-000.

17910-434-810

Unavailable

2

CABLE, CLUTCH (NOT AVAILABLE) This part replaces 22870-444-000.

22870-466-000

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

CLAMP, CABLE (NOT AVAILABLE)

32162-444-003

Unavailable

5

SWITCH ASSY., STOP

35130-KZ3-860

$44.30

5

SWITCH ASSY., STOP This part replaces 35130-444-000.

35130-KZ3-860

$44.30

6

CABLE, FR. BRAKE This part replaces 45450-430-000.

45450-467-000

Unavailable

6

CABLE, FR. BRAKE

45450-467-000

Unavailable

7

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-430-000

Unavailable

8

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

9

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

10

HOUSING A, GRIP (NOT AVAILABLE)

53167-430-003

Unavailable

11

HOUSING B, GRIP (NOT AVAILABLE)

53168-430-003

Unavailable

12

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-430-003

Unavailable

13

BRACKET, L. HANDLEBAR

53172-430-003

Unavailable

14

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.95

14

HOLDER, LEVER BRACKET

53173-376-000

$10.95

15

LEVER, R. HANDLEBAR This part replaces 53175-360-700.

53175-KY0-980

$31.02

15

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

16

COVER, R. HANDLEBAR This part replaces 53176-430-000.

53176-428-010

$10.00

16

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$10.00

17

LEVER, L. HANDLEBAR This part replaces 53178-360-700.

53178-401-651

Unavailable

17

LEVER, L. HANDLEBAR This part replaces 53190-401-681.

53178-401-651

Unavailable

17

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

17

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

17

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

18

BOLT, CLUTCH CABLE ADJUSTING

53192-203-000

$9.10

19

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

20

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

21

NUT, FIXING

90321-315-670

$7.31

21

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

22

SCREW, PAN (4X10) SCREW, PAN (4X12)

93500-04010-0A

$1.49

23

SCREW, PAN (5X16)

93500-05016-0H

$1.49

24

SCREW, PAN (5X20)

93500-05020-0H

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (4MM)

94002-04000-0S

$1.49

27

WASHER, SPRING (4MM)

94111-04000

$1.49
