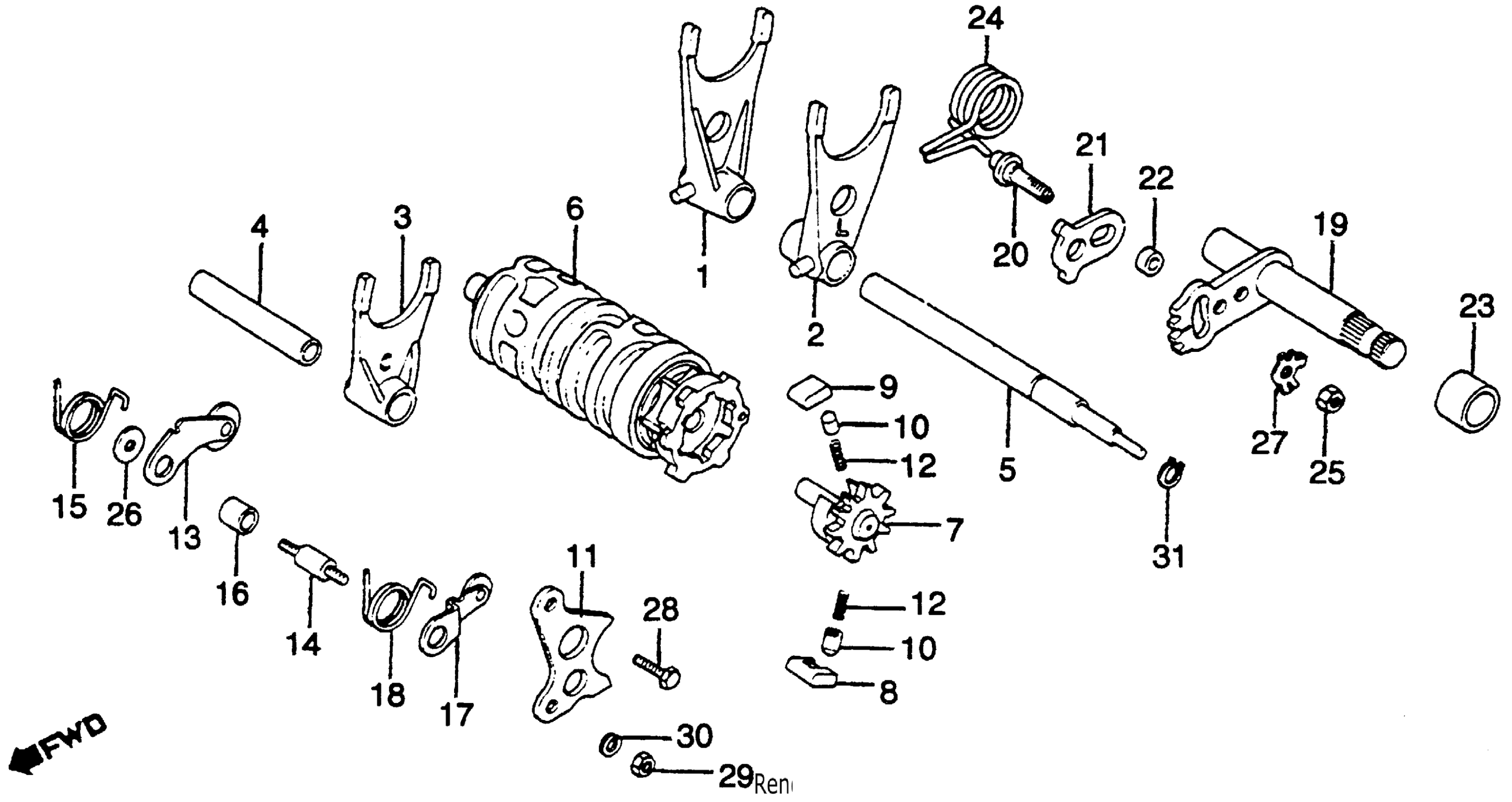

Honda CR125RA (79) ELSINORE, JPN, VIN# JE01-2000010 TO JE01-2010778 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 2003779 This part replaces 24211-444-000.

24211-444-010

Unavailable

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-444-010

Unavailable

2

FORK, L. GEARSHIFT | Use up to Engine SN 2003779

24221-444-000

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 2003780

24221-444-010

Unavailable

3

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24231-444-000

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24265-444-000

Unavailable

5

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24266-444-000

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24310-444-000

Unavailable

7

SHIFTER, DRUM (NOT AVAILABLE)

24321-KA3-000

Unavailable

7

SHIFTER, DRUM (NOT AVAILABLE) This part replaces 24321-360-700.

24321-KA3-000

Unavailable

8

PAWL A, RATCHET (NOT AVAILABLE)

24324-360-000

Unavailable

9

PAWL B, RATCHET (NOT AVAILABLE)

24325-360-000

Unavailable

10

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

10

PLUNGER, PAWL

24326-360-010

$5.19

11

PLATE, GUIDE (NOT AVAILABLE)

24328-444-000

Unavailable

12

SPRING, PAWL PLUNGER

24329-360-000

$2.90

13

STOPPER, DRUM (NOT AVAILABLE)

24430-444-000

Unavailable

14

BOLT, DRUM STOPPER (NOT AVAILABLE)

24434-430-010

Unavailable

15

SPRING, DRUM STOPPER (NOT AVAILABLE)

24435-444-000

Unavailable

16

COLLAR, DRUM STOPPER (NOT AVAILABLE)

24437-430-000

Unavailable

17

STOPPER, NEUTRAL (NOT AVAILABLE)

24440-444-000

Unavailable

18

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24443-444-000

Unavailable

19

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-444-000

Unavailable

20

PIN, GEARSHIFT ARM

24614-430-000

Unavailable

21

PLATE, POSITIVE STOPPER (NOT AVAILABLE)

24616-430-000

Unavailable

22

COLLAR (6X12) (NOT AVAILABLE)

24617-444-000

Unavailable

23

COLLAR, GEARSHIFT SPINDLE (NOT AVAILABLE)

24620-444-000

Unavailable

24

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-444-000

Unavailable

25

NUT, TAPPET ADJ.

90206-250-000

$2.94

26

WASHER, DRUM STOPPER

90417-360-000

$1.74

27

WASHER, LOCK (6MM) (NOT AVAILABLE)

90436-430-000

Unavailable

28

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

WASHER, SPRING (6MM)

94111-06000

$1.49

31

CIRCLIP (OUTER) (11MM)

94510-11000

$1.49
