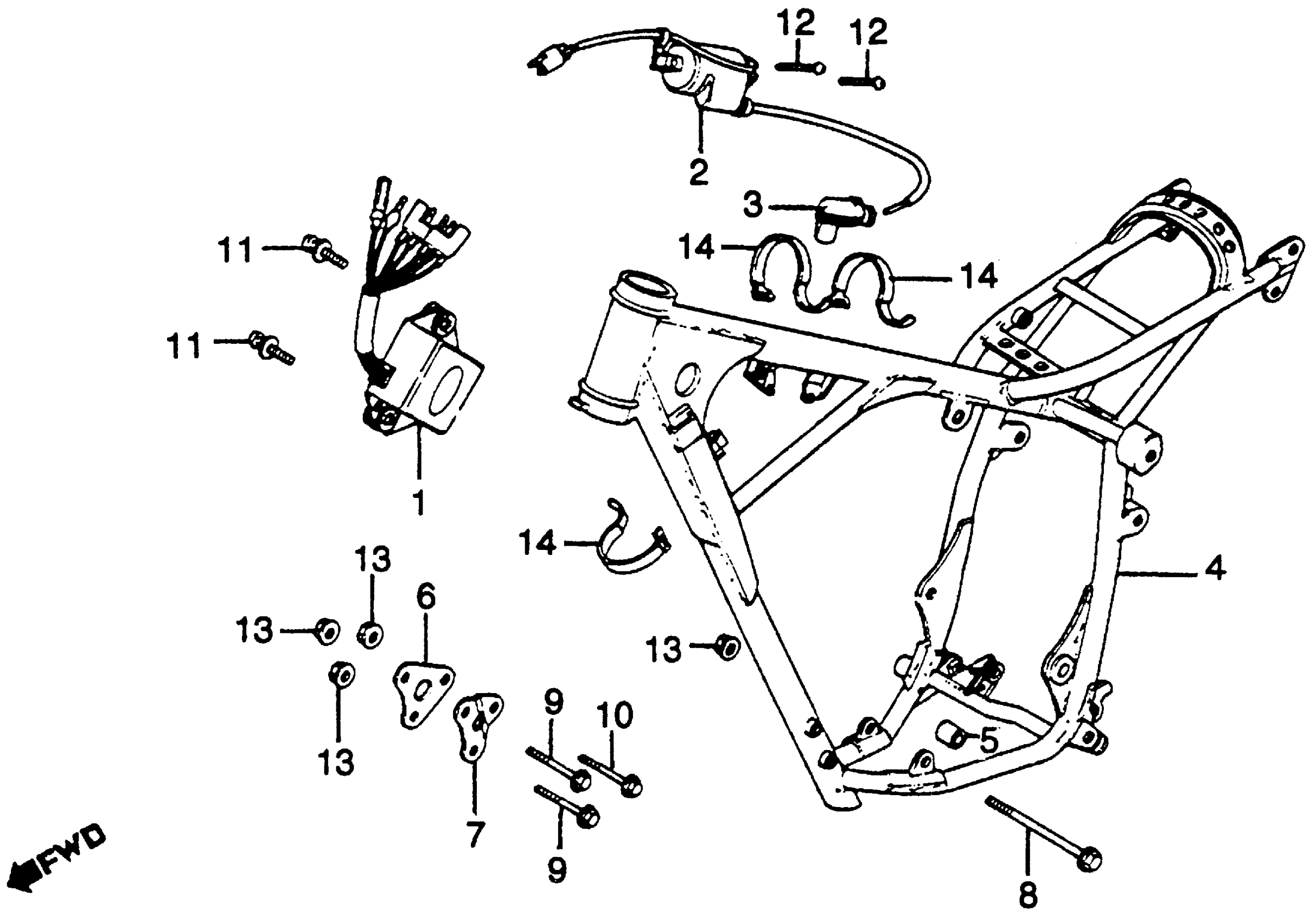

Honda CR125RA (79) ELSINORE, JPN, VIN# JE01-2000010 TO JE01-2010778 FRAME + IGNITION COIL 79 Diagram

MODULE, IGNITION CONTROL (CDI)

30400-444-003

Unavailable

COIL, IGNITION (NOT AVAILABLE)

30500-444-003

Unavailable

TERMINAL ASSY., COIL (NOT AVAILABLE)

30700-360-701

Unavailable

FRAME *R23* (TAHITIAN RED)

50100-444-010ZA

Unavailable

COLLAR (8.5X20) (NOT AVAILABLE)

50251-444-000

Unavailable

BRACKET, R. FR. ENGINE HANGER *R23* (TAHITIAN RED) (NOT AVAILABLE)

50351-444-000ZA

Unavailable

BRACKET, L. FR. ENGINE *R23* (TAHITIAN RED) (NOT AVAILABLE)

50352-444-000ZA

Unavailable

BOLT, FLANGE (8X95)

90102-444-000

Unavailable

BOLT, HEX. (8X70) (NOT AVAILABLE)

90103-430-000

Unavailable

BOLT, HEX. (8X63) (NOT AVAILABLE)

90105-361-000

Unavailable

BOLT-WASHER (6X16)

93404-06016-08

$1.55

BOLT-WASHER (6X16) This part replaces 93494-06016-08.

93404-06016-08

$1.55

SCREW, PAN (5X20)

93500-05020-0H

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

BAND A3, CABLE

95014-61300

$1.97
