- CR125RA (79) ELSINORE, JPN, VIN# JE01-2000010 TO JE01-2010778
CHANGE PEDAL + BRAKE PEDAL + KICK STARTER ARM

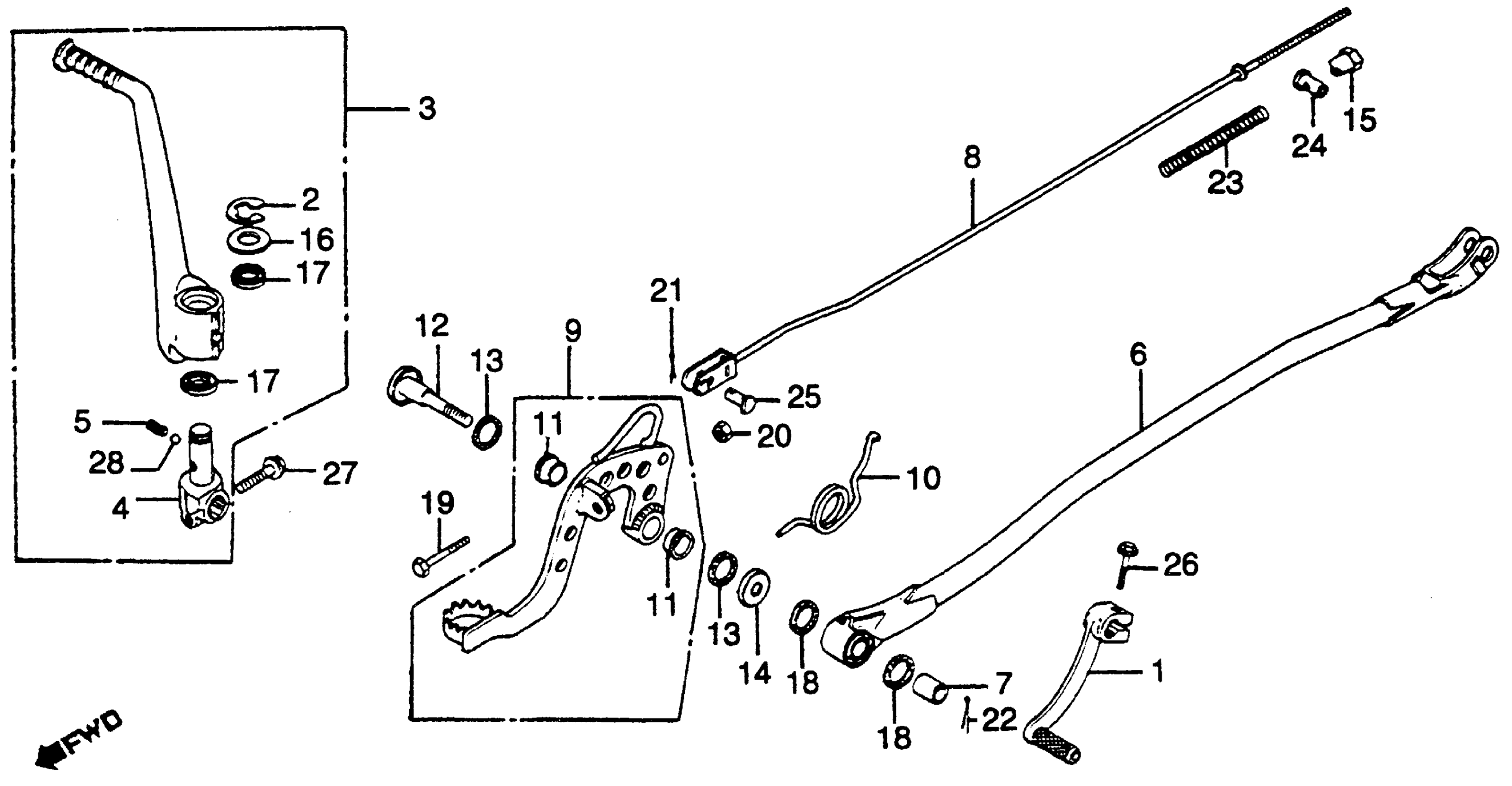

Honda CR125RA (79) ELSINORE, JPN, VIN# JE01-2000010 TO JE01-2010778 CHANGE PEDAL + BRAKE PEDAL + KICK STARTER ARM Diagram
#
Description
Price
1
PEDAL, GEARSHIFT (NOT AVAILABLE)
24701-444-000
Unavailable
2
CLIP, KICK STARTER (NOT AVAILABLE)
28293-444-000
Unavailable
3
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-444-000
Unavailable
4
JOINT, KICK ARM (NOT AVAILABLE)
28302-444-000
Unavailable
5
SPRING, KICK STARTER STOPPER (NOT AVAILABLE)
28333-357-000
Unavailable
6
ARM, RR. BRAKE STOPPER (NOT AVAILABLE) This part replaces 43431-444-010.
43431-466-000
Unavailable
6
ARM, RR. BRAKE STOPPER (NOT AVAILABLE)
43431-466-000
Unavailable
7
COLLAR, RR. STOPPER ARM DISTANCE
43433-444-000
Unavailable
8
ROD, RR. BRAKE
43451-444-000
Unavailable
9
PEDAL, BRAKE (NOT AVAILABLE)
46510-444-000
Unavailable
10
SPRING, BRAKE PEDAL (NOT AVAILABLE)
46511-444-000
Unavailable
12
SHAFT, BRAKE PIVOT (NOT AVAILABLE)
46513-444-010
Unavailable
13
DUST SEAL, BRAKE PEDAL
46516-430-000
Unavailable
14
WASHER, BRAKE PEDAL PIVOT (NOT AVAILABLE)
46518-444-000
Unavailable
15
NUT, BRAKE ADJUSTING
90339-430-000
Unavailable
16
WASHER, KICK JOINT (NOT AVAILABLE)
90415-444-000
Unavailable
18
O-RING (20X1.8) (NOT AVAILABLE)
91302-430-003
Unavailable
19
BOLT, HEX. (6X25) | Use up to Frame SN 2007331 This part replaces 92023-06025.
92025-06025-0A
$1.49
19
BOLT, HEX. (6X25) | Use up to Frame SN 2007331 This part replaces 92023-06025-0A.
92025-06025-0A
$1.49
19
BOLT, HEX. (6X30) (NOT AVAILABLE) BOLT, HEX. (6X28) | Use from Frame SN 2007332
92028-06030
Unavailable
