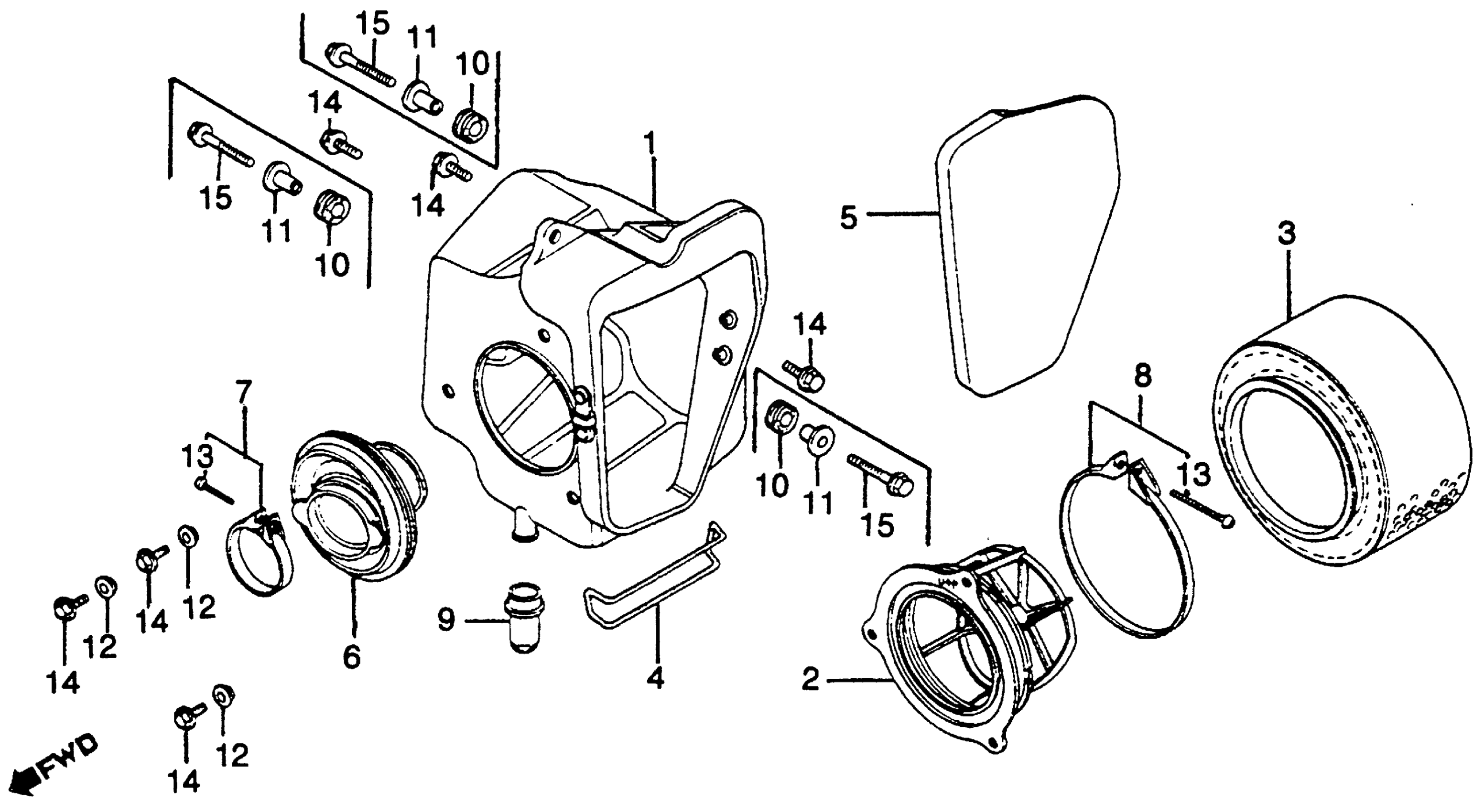

Honda CR125RA (79) ELSINORE, JPN, VIN# JE01-2000010 TO JE01-2010778 AIR CLEANER Diagram

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-444-000

Unavailable

BASE, AIR CLEANER ELEMENT (NOT AVAILABLE)

17212-444-000

Unavailable

ELEMENT, AIR CLEANER

17213-444-000

Unavailable

BAND, AIR CLEANER CAP (NOT AVAILABLE)

17215-444-000

Unavailable

CAP, AIR CLEANER HOUSING (NOT AVAILABLE)

17218-444-000

Unavailable

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-444-000

Unavailable

BAND, CONNECTING TUBE (NOT AVAILABLE)

17256-400-000

Unavailable

BAND, AIR CLEANER ELEMENT (NOT AVAILABLE)

17257-444-000

Unavailable

TUBE, DRAIN (NOT AVAILABLE)

17358-430-000

Unavailable

RUBBER, FR. FENDER SETTING

61103-430-000

$3.67

COLLAR, FENDER SETTING

61104-444-000

$7.61

WASHER (6X20)

90401-373-770

$5.16

SCREW, PAN (4X20)

93500-04020-0H

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
