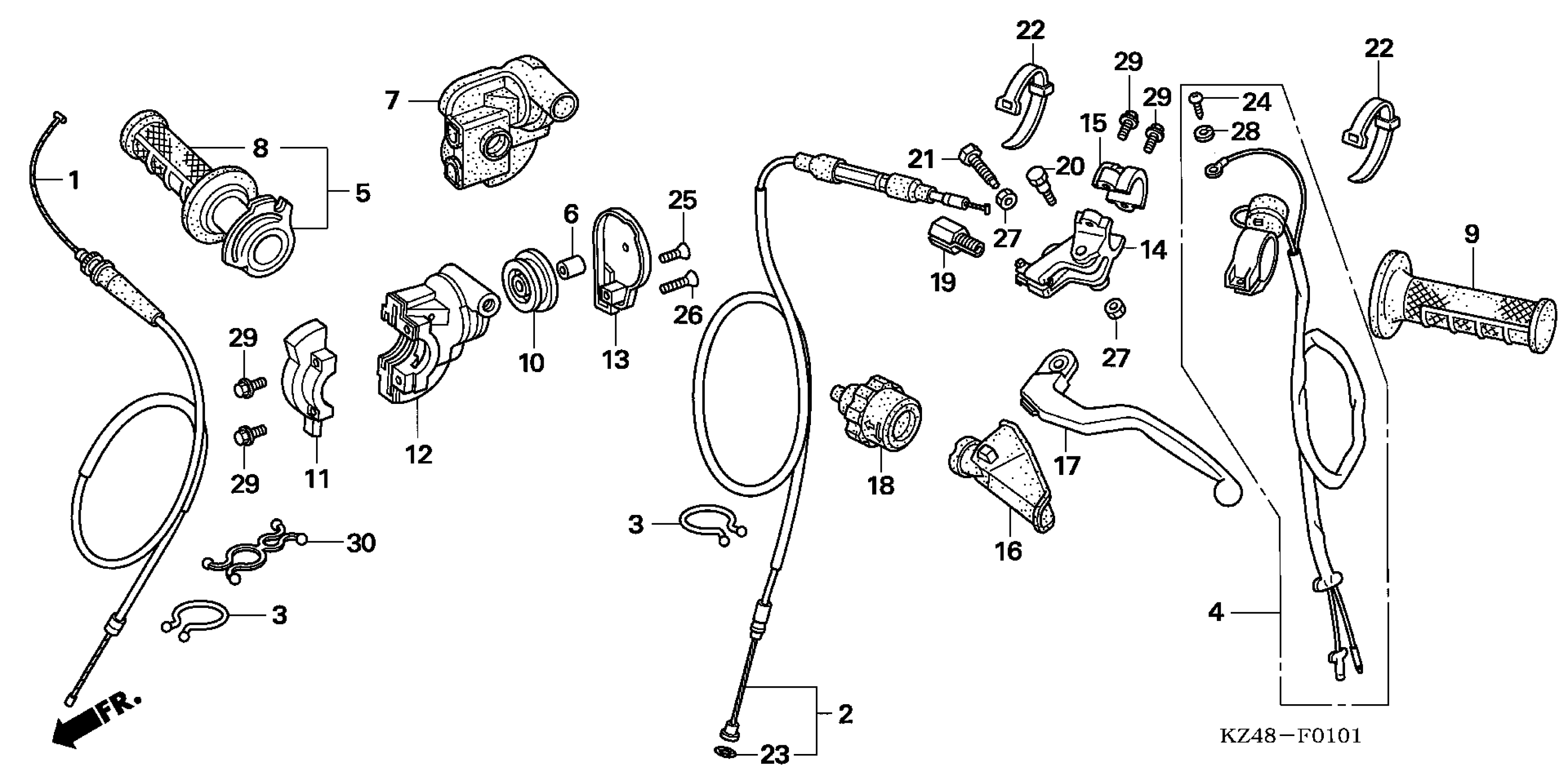

Honda CR125RA (07) MOTORCYCLE, JPN, VIN# JH2JE013-7M900001 HANDLE LEVER + SWITCH + CABLE ('04-'07) Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-KSR-J00

$26.92

2

CABLE, CLUTCH

22870-KSR-J01

$34.23

3

LOCK, PURSE

32171-GF9-621

$2.13

4

SWITCH ASSY., STOP This part replaces 35130-KSK-670.

35130-KZ3-L30

$27.28

5

GRIP, THROTTLE

53140-KZ4-J31

$24.53

6

COLLAR B, HOUSING

53163-MAC-670

$8.55

7

COVER, THROTTLE HOUSING

53164-MAC-680

$30.45

8

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$10.28

9

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$10.28

10

ROLLER, THROTTLE CABLE

53166-ML3-600

$7.61

11

HOUSING A, GRIP

53167-KZ4-J00

$31.00

12

HOUSING B, GRIP

53168-KZ4-J00

$33.92

13

COVER B, HOUSING

53169-KZ4-J00

$15.42

14

BRACKET, L. HANDLE LEVER

53172-KSK-670

$39.81

15

HOLDER, L. LEVER BRACKET

53174-KCE-670

$13.46

16

COVER, L. HANDLE LEVER

53177-KSK-670

$9.83

17

LEVER, L. HANDLEBAR

53178-MEN-670

$25.53

18

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$11.26

19

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.91

20

BOLT, HANDLE LEVER PIVOT

90113-429-770

$5.94

21

BOLT, LEVER PIVOT

90118-MEN-670

$3.89

22

BAND, WIRE

90650-KV6-003

$3.12

23

O-RING (5.8X1.9)

91357-KA4-004

$2.48

24

SCREW, PAN (4X12)

93500-04012-0A

$1.49

24

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

25

SCREW, OVAL (4X20)

93700-04020-0A

$1.49

26

SCREW, OVAL (4X25)

93700-04025-0A

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

28

WASHER, SPRING (4MM)

94111-04000

$1.49

29

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

30

CLIP, PURSE LOCK

90647-657-671

$5.67
