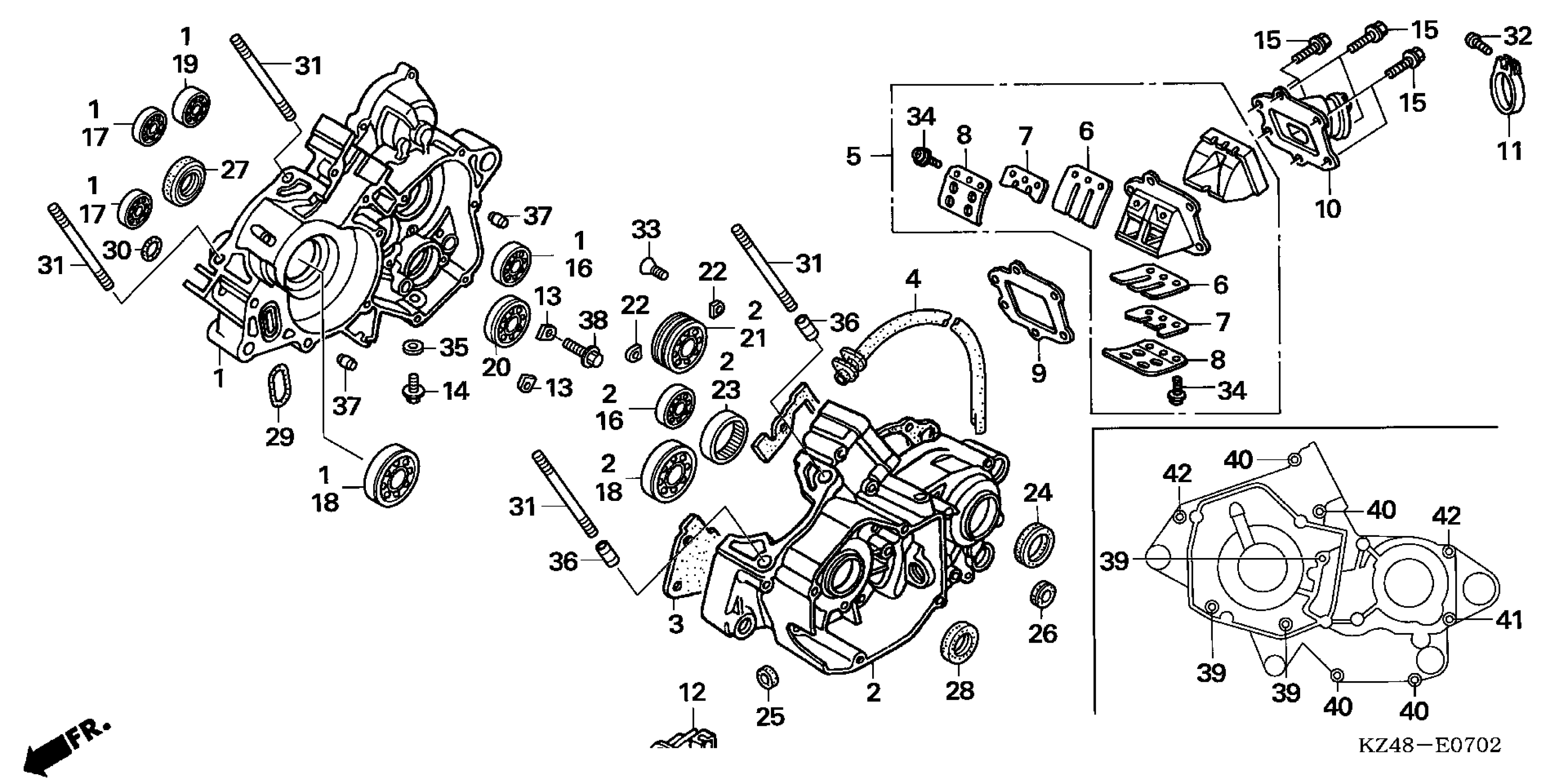

Honda CR125RA (07) MOTORCYCLE, JPN, VIN# JH2JE013-7M900001 CRANKCASE ('05-'07) Diagram

#

Description
Price

1

CRANKCASE, R.

04921-KSR-730

Unavailable

2

CRANKCASE, L.

04922-KSR-730

Unavailable

3

GASKET, CRANKCASE

11191-KSR-730

Unavailable

4

TUBE, BREATHER

11210-KSR-730

Unavailable

5

VALVE ASSY., REED

14100-KSR-731

Unavailable

6

REED VALVE ONLY

14111-KSR-731

$68.07

7

REED VALVE ONLY, SUB

14112-KSR-731

$58.15

8

STOPPER, REED VALVE

14121-KSR-731

$12.70

9

GASKET, REED VALVE

14132-KSR-730

Unavailable

10

INSULATOR, CARBURETOR

16221-KSR-730

Unavailable

11

BAND, INSULATOR

16223-KA5-690

$17.05

12

LIFTER, CLUTCH

22810-KS6-700

$66.65

13

PLATE A, BEARING SETTING

23521-KW3-000

$4.46

14

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

15

BOLT, SPECIAL (6X22)

90021-KSR-730

Unavailable

16

BEARING, RADIAL BALL (17X36X10)

91001-KSR-A01

$13.49

17

BEARING, RADIAL BALL (7X19X6) (TOYO)

91002-KA4-003

$21.67

18

BEARING, RADIAL BALL (63/22) This part replaces 91002-KE1-014.

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22) This part replaces 91002-466-008.

91002-KY4-901

$24.38

19

BEARING, RADIAL BALL (20X42X11) (KOYO)

91004-KZ4-A11

$23.62

20

BEARING, RADIAL BALL (6905Z)

91004-KZ4-L11

$15.75

21

BEARING, RADIAL BALL (22X47X14)

91005-KSR-A01

$18.35

22

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

23

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$17.87

24

OIL SEAL (28X37X7)

91201-KSR-A01

$8.05

25

OIL SEAL (10X17X4) This part replaces 91201-VB3-802.

91206-VA3-J02

$2.10

25

OIL SEAL (10X17X4) This part replaces 91202-KA3-711.

91206-VA3-J02

$2.10

25

OIL SEAL (10X17X4) This part replaces 91202-KA3-712.

91206-VA3-J02

$2.10

26

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

26

OIL SEAL (14X22X5) This part replaces 91203-KA4-772.

91203-KK3-830

$3.81

26

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

27

OIL SEAL (30X45X8) (ARAI)

91203-KS6-004

$15.27

28

OIL SEAL (20X32X7) (NOK) This part replaces 91205-GC4-711.

91205-166-004

$17.38

28

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

29

O-RING (49X24X2)

91301-KSR-731

Unavailable

30

O-RING A, TORQUE LINK (NOK)

91353-KM1-004

$2.33

31

BOLT, STUD (8X35)

92900-08035-3E

$2.25

32

SCREW, PAN (5X25)

93500-05025-0A

$1.49

33

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

34

SCREW-WASHER (3X6)

93892-03006-08

$1.49

35

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

36

PIN, DOWEL (10X16)

94301-10160

$2.28

37

PIN, DOWEL (12X20)

94301-12200

$2.29

38

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

39

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

40

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

41

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

42

BOLT, FLANGE (6X75)

96001-06075-00

$2.23
