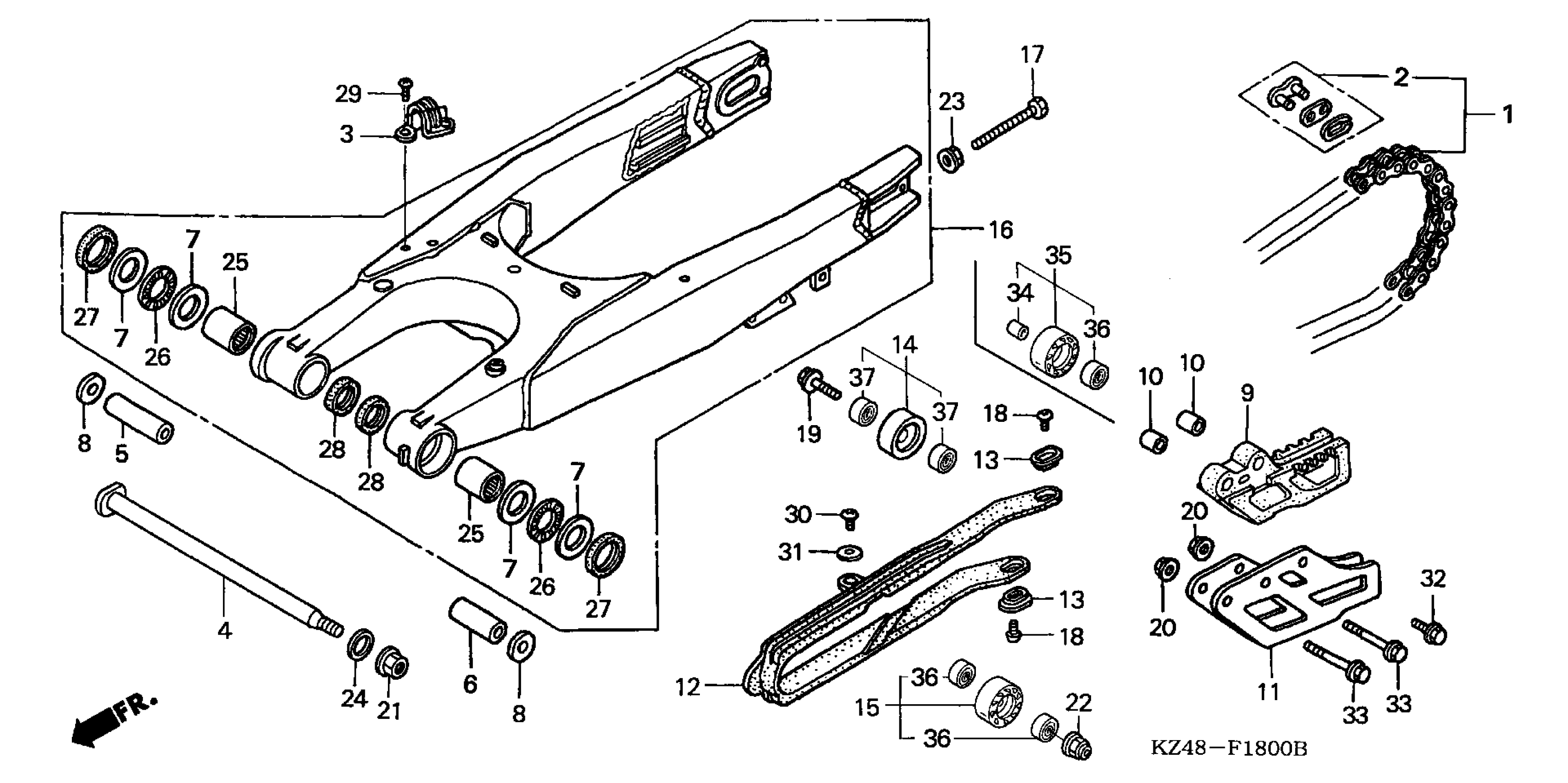

Honda CR125RA (04) MOTORCYCLE, JPN, VIN# JH2JE013-4M600001 TO JH2JE013-4M699999 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (RK520TXZ-116RJ) (RK EXCEL) This part replaces 40530-KZ4-J31.

40530-MEN-A32

$144.16

1

CHAIN, DRIVE (DID520DMA4-120RB) (DAIDO) (STANDARD LINK 114L) | (Optional). This part replaces 40540-MEN-003.

40540-KRN-A31

$198.19

2

MASTER LINK (DAIDO)

40531-KZ4-J31

Unavailable

3

GUIDE, RR. BRAKE HOSE

43468-KZ3-B00

$4.81

4

SHAFT, SWINGARM PIVOT

52101-KZ4-J40

$22.97

5

COLLAR, SWINGARM PIVOT (59MM)

52141-KZ4-J40

$15.18

6

COLLAR, SWINGARM SIDE (54MM)

52142-KZ4-J40

$15.18

7

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.00

8

COLLAR, SWINGARM PIVOT SIDE

52143-KZ4-J40

$3.82

9

GUIDE, CHAIN

52146-MEN-000

Unavailable

10

COLLAR, CHAIN GUIDE

52148-MEN-000

$3.67

11

PLATE, CHAIN GUIDE

52156-ML3-910

$52.86

12

SLIDER, CHAIN

52170-MEB-750

Unavailable

13

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

15

ROLLER, CHAIN (LOWER) (32MM)

52176-KZ4-J40

Unavailable

16

SWINGARM SUB-ASSY., RR.

52200-KSR-J00

Unavailable

17

BOLT, HEX. (8X47.5)

90105-MEN-000

$2.78

18

SCREW, PAN (5X8)

90115-KV3-700

$2.38

19

BOLT, FLANGE (8X32)

90124-MEB-770

$1.86

20

NUT, U (6MM)

90301-473-003

$3.79

21

NUT, U HEX. (14MM)

90305-KZ3-B01

$5.42

22

NUT, U (8MM)

90309-ML3-791

$4.06

23

NUT, HEX. (8MM)

90309-357-000

$3.16

24

WASHER (26X14X2.8)

90501-GAH-000

$6.18

24

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.18

25

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$33.09

26

BEARING, NEEDLE THRUST

91072-KZ3-861

$12.08

27

DUST SEAL (30X37X4)

91253-KZ3-861

$7.79

28

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.51

29

SCREW, PAN (5X8)

93500-05008-0A

$0.80

30

SCREW, PAN (5X8)

93500-05008-0G

$0.83

31

WASHER, PLAIN (5MM)

94103-05700

$0.86

32

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

33

BOLT, FLANGE (6X50)

96001-06050-00

$1.97

34

COLLAR, CHAIN TENSIONER

52160-MEN-000

$2.48

35

ROLLER, CHAIN (42)

52175-MEN-000

$32.43

36

BEARING, RADIAL BALL (608UU)

91011-GCT-003

$16.81
