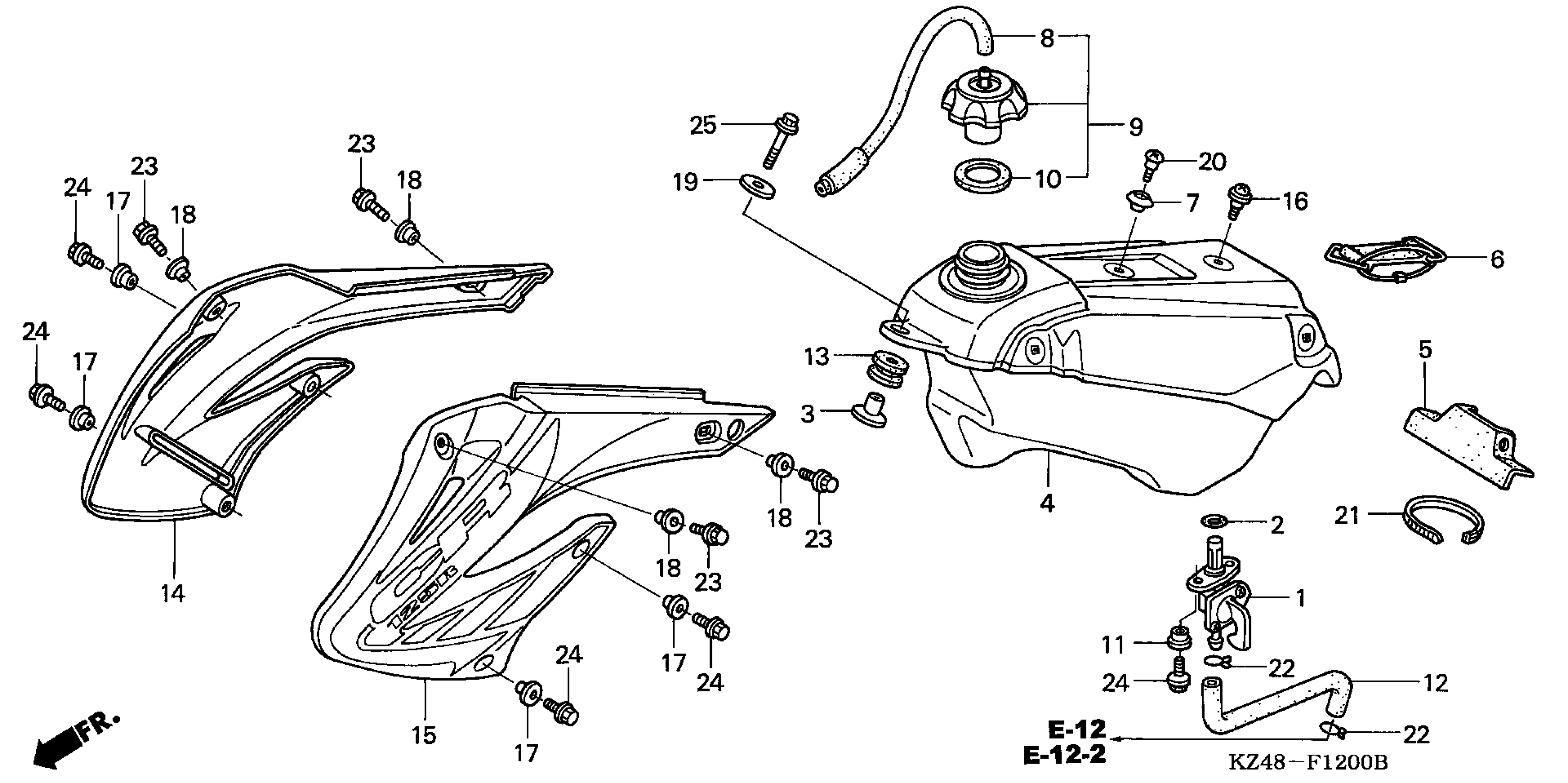

Honda CR125RA (04) MOTORCYCLE, JPN, VIN# JH2JE013-4M600001 TO JH2JE013-4M699999 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

4

TANK, FUEL This part replaces 17510-KSK-000.

17510-KSK-010

Unavailable

5

RUBBER A, FUEL TANK MOUNTING

17512-KZ4-J40

Unavailable

6

BAND, RR. TANK

17516-KZ3-B00

$16.29

7

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

8

TUBE, FUEL CAP BREATHER

17521-KZ4-J20

$4.83

9

CAP ASSY., FUEL TANK

17620-KZ4-J20

$47.22

10

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

11

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

12

TUBE, FUEL

17681-KZ3-J20

$4.63

13

RUBBER, MUFFLER

18334-ML3-680

$3.87

14

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-KSR-J00ZA

Unavailable

15

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-KSR-J00ZA

Unavailable

16

SCREW, PAN (5X13)

90108-MN0-000

$1.70

17

COLLAR A

90501-KZ4-J20

$3.67

18

COLLAR, MIDDLE COVER

90504-KBP-900

$1.49

19

WASHER, FENDER MOUNTING

90506-430-000

$2.92

20

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

21

TY-RAP, CABLE

91560-MS8-600

$2.38

22

CLIP, TUBE (B12)

95002-02120

$2.00

23

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

25

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
