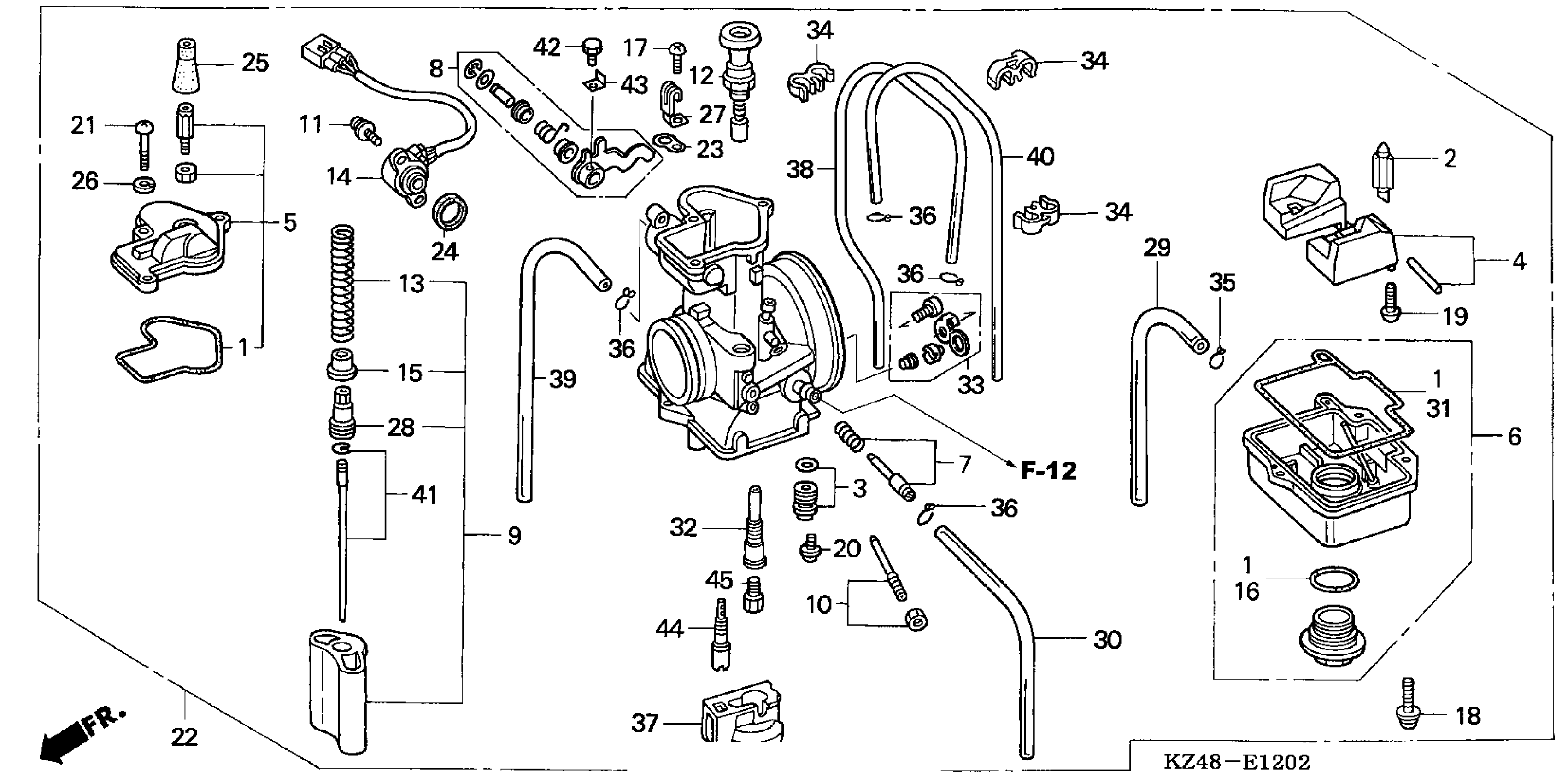

Honda CR125RA (04) MOTORCYCLE, JPN, VIN# JH2JE013-4M600001 TO JH2JE013-4M699999 CARBURETOR ('04-'07) Diagram

#

Description
Price

1

GASKET SET

16010-KSK-672

$22.08

2

VALVE, FLOAT

16011-KZ4-A92

$42.36

3

VALVE SET, SEAT

16012-KZ4-A92

$7.77

4

FLOAT SET

16013-KZ4-L22

Unavailable

5

TOP SET This part replaces 16014-KSK-672.

16014-KSK-673

Unavailable

5

TOP SET

16014-KSK-673

Unavailable

6

CHAMBER SET, FLOAT

16015-KSK-672

Unavailable

7

SCREW SET A

16016-KZ4-A92

Unavailable

8

LEVER SET, THROTTLE SENSOR

16017-KSR-A02

$74.72

9

VALVE SET, THROTTLE

16022-KSR-A02

Unavailable

10

SCREW SET B

16028-KZ4-A92

$6.72

11

SCREW

16041-KSK-672

Unavailable

12

VALVE SET, STARTER

16046-KZ4-A92

Unavailable

13

SPRING, COMPRESSION COIL

16050-KSK-672

Unavailable

14

SENSOR, THROTTLE

16060-KSK-672

Unavailable

14

SENSOR, THROTTLE This part replaces 16060-KSR-A02.

16060-KSK-672

Unavailable

15

COLLAR, SPRING SETTING

16066-KZ4-A92

Unavailable

16

O-RING

16075-KZ4-L22

Unavailable

17

SCREW

16080-KSK-672

Unavailable

18

SCREW-WASHER

16080-KZ4-L22

$1.49

19

SCREW, PAN

16081-KZ4-A92

Unavailable

20

SCREW

16082-KZ4-A92

Unavailable

21

SCREW

16083-KSK-673

$1.49

22

CARBURETOR ASSY. (TMX04A A)

16100-KSR-A02

Unavailable

23

CLAMP, TUBE

16106-KSK-672

Unavailable

24

DUST SEAL

16118-KSK-672

Unavailable

25

CAP, CABLE SEALING

16118-KZ4-A92

$4.75

26

WASHER

16132-KSK-672

Unavailable

27

PLATE

16134-KSK-672

Unavailable

28

HOLDER, CABLE

16137-KZ4-L22

Unavailable

29

TUBE, OVERFLOW

16143-KZ4-A92

$2.20

30

TUBE, AIR VENT

16144-KZ4-A92

$2.56

31

GASKET, FLOAT CHAMBER

16163-KZ4-L22

Unavailable

32

HOLDER, JET

16165-KZ4-L32

$25.83

33

FILTER SET

16170-KZ4-L32

Unavailable

34

BINDER

16179-KZ4-A92

$4.26

35

CLIP, TUBE

16181-KZ4-A92

$1.49

36

CLIP, TUBE

16182-KZ4-A92

$1.49

37

PLATE, BUFFER

16185-KZ4-L22

Unavailable

38

TUBE, AIR VENT

16197-KZ4-L22

$9.91

39

TUBE, AIR VENT

16198-KZ4-L22

$8.66

40

TUBE, AIR VENT

16199-KZ4-A92

$3.03

41

NEEDLE SET, JET (6DGY26-69)

16204-KSR-A02

Unavailable

42

SCREW

16544-KSK-672

Unavailable

43

PLATE

16732-KSK-672

Unavailable

44

JET, SLOW (#35) | (Optional).

99133-KZ3-0350

Unavailable

44

JET, SLOW (#37.5) | (Optional).

99133-KZ3-0370

Unavailable

44

JET, SLOW (#40)

99133-KZ4-0400

$12.08

44

JET, SLOW (#45) | (Optional).

99133-KZ4-0450

Unavailable

44

JET, SLOW (#50) | (Optional).

99133-KZ4-0500

Unavailable

45

JET, MAIN (#420)

99143-KZ4-4200

$14.51
