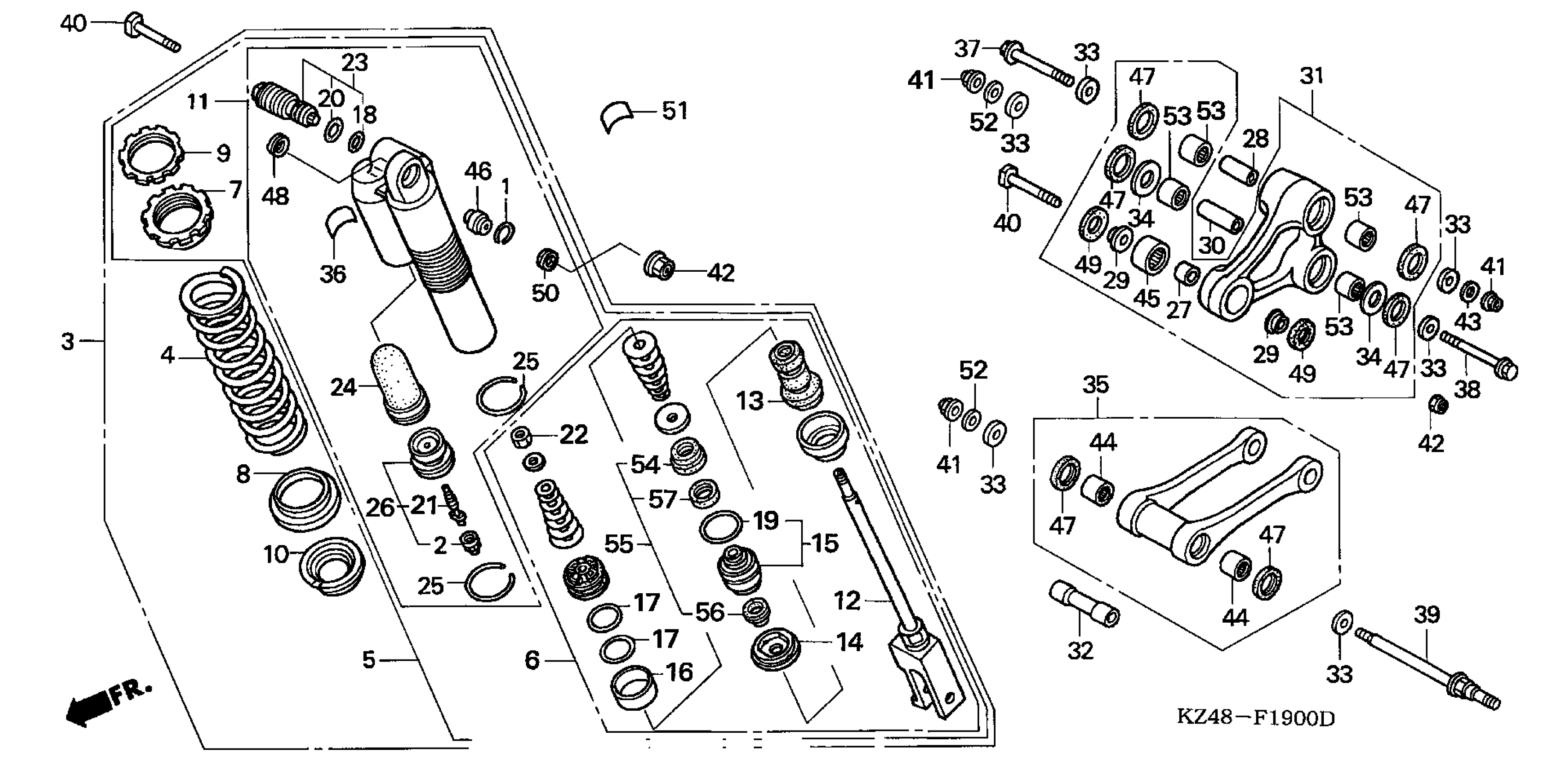

Honda CR125RA (03) MOTORCYCLE, JPN, VIN# JH2JE013-3M500001 TO JH2JE013-3M599999 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

RING, STOPPER

41405-HA7-670

$2.97

2

CAP, AIR VALVE

51453-KK0-004

$4.46

3

CUSHION ASSY., RR. (KAYABA)

52400-KZ4-L31

Unavailable

4

SPRING, RR. SHOCK ABSORBER (4.6)

52401-KZ4-J01

Unavailable

4

SPRING, RR. SHOCK ABSORBER (4.4KGF/MM) | (Optional).

52402-KZ4-J01

Unavailable

4

SPRING, RR. SHOCK ABSORBER (4.8) | (Optional).

52403-KZ4-J01

$201.90

4

SPRING, RR. SHOCK ABSORBER (5.0) | (Optional).

52404-KZ4-J01

Unavailable

5

DAMPER, RR.

52410-KZ4-L31

Unavailable

6

ROD, PISTON

52421-KZ4-L21

Unavailable

7

SEAT, SPRING (UPPER) (KAYABA)

52422-KS6-701

Unavailable

8

WASHER, SPRING SEAT

52422-KZ4-J31

Unavailable

9

NUT, ADJUSTER (KAYABA)

52423-KS6-701

Unavailable

10

SEAT, SPRING (LOWER)

52424-KZ4-J11

Unavailable

11

CASE, RR.

52425-KZ4-L21

Unavailable

12

ROD

52426-KZ4-J41

Unavailable

13

RUBBER, BUMPER

52427-KZ4-J31

$8.91

14

CAP, CASE

52428-KZ4-901

Unavailable

15

CASE, ROD GUIDE

52429-KZ4-901

$29.15

16

RING, PISTON

52431-MAC-681

$14.02

17

O-RING (37.5X2.0)

52432-KZ4-901

$4.46

18

O-RING (21.5X1.5)

52433-MAC-741

$3.48

19

O-RING (39.7X3.5)

52434-KZ4-901

Unavailable

20

O-RING (25.5X2.0)

52435-MAC-741

$5.64

21

CORE, VALVE

52437-KA3-731

Unavailable

22

NUT, HEX. (12MM)

52438-KA3-731

$3.10

23

ADJUSTER, COMPRESSION DAMPING FORCE

52440-KZ4-A91

Unavailable

24

BLADDER

52451-KZ4-901

$24.72

25

RING, SNAP (KAYABA)

52452-KZ4-003

Unavailable

26

CAP, BLADDER

52453-KZ4-003

Unavailable

27

COLLAR D, CUSHION

52463-KZ4-B00

$3.27

28

COLLAR C, CUSHION ARM

52463-KZ4-J40

$5.71

29

COLLAR D, CUSHION SIDE

52464-KZ4-B00

$3.83

30

COLLAR B, CUSHION

52464-KZ4-J20

$6.96

31

ARM SUB-ASSY., CUSHION

52465-KZ4-J40

Unavailable

32

COLLAR A, CONNECTING ROD

52473-KZ4-J20

$16.15

33

COLLAR, LINK SIDE

52475-KZ4-J20

$6.78

34

WASHER, THRUST

52476-KZ4-J20

$5.19

35

ROD SUB-ASSY., CUSHION CONNECTING

52479-KZ4-J40

Unavailable

36

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

37

BOLT, LINK (12X96)

90130-KZ4-J20

$9.71

38

BOLT, LINK (12X81.5)

90130-KZ4-J40

$9.07

39

BOLT, LINK (12X120)

90131-KZ4-J40

Unavailable

40

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$9.38

41

NUT, HEX. (12MM) This part replaces 90306-KBP-901.

90306-GAB-711

$9.10

42

NUT, U (10MM)

90306-KZ4-711

$3.74

43

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.23

44

BEARING, NEEDLE (20X26X14)

91053-KZ4-J21

$9.44

45

BEARING, NEEDLE (19X26X15)

91074-KZ4-B01

$21.68

46

BEARING, SPHERICAL (10)

91074-MAC-741

$35.03

47

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

48

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

49

DUST SEAL (17X26X3)

91351-KZ4-B01

$4.17

50

DUST SEAL (16X26X3)

91351-MAC-671

$5.78

52

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.23

53

BEARING, NEEDLE (20X26X14)

91053-KZ4-J21

$9.44
