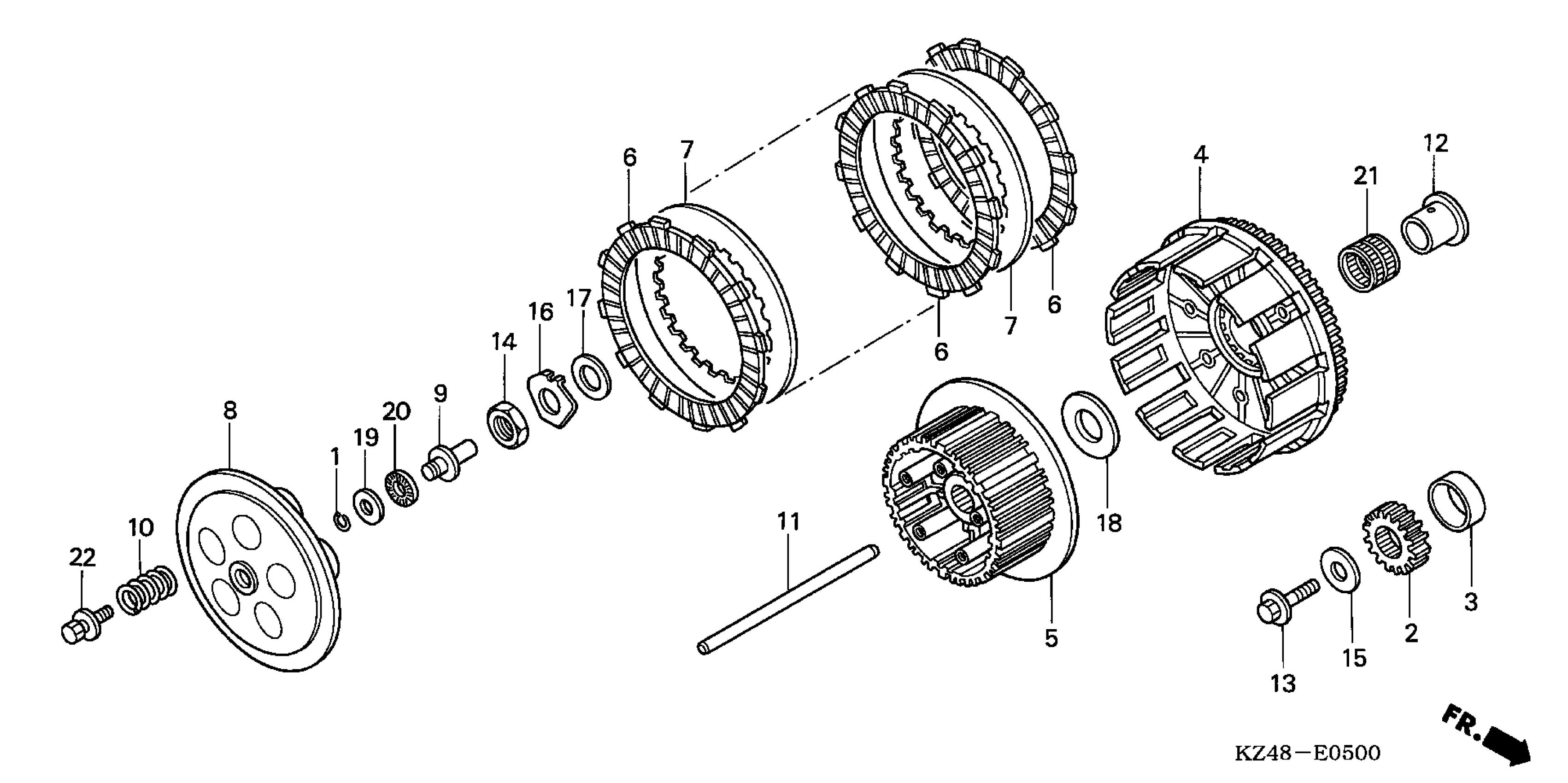

Honda CR125RA (03) MOTORCYCLE, JPN, VIN# JH2JE013-3M500001 TO JH2JE013-3M599999 CLUTCH Diagram

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

GEAR, PRIMARY DRIVE

13615-KS6-700

$64.79

COLLAR, DRIVE GEAR

13617-KS6-700

Unavailable

CLUTCH (OUTER)

22100-KZ4-L30

$289.03

CENTER, CLUTCH This part replaces 22120-KZ4-A90.

22120-KRN-A00

$111.90

DISK, CLUTCH FRICTION

22201-KS6-700

$17.68

PLATE, CLUTCH

22321-KA3-710

$19.18

PLATE, CLUTCH PRESSURE This part replaces 22351-KZ4-A90.

22351-KRN-A10

$54.87

PIECE, CLUTCH LIFTER

22352-KZ4-A90

$33.41

SPRING, CLUTCH

22401-KZ4-A90

$5.81

ROD, CLUTCH LIFTER

22850-KZ4-A90

$16.01

COLLAR, CLUTCH (OUTER)

28237-KZ4-A10

$35.79

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

NUT (18MM)

90235-KA4-000

$11.09

WASHER, PLAIN (10MM)

90401-ML3-790

$6.85

WASHER, LOCK (18MM) This part replaces 90441-HA2-670.

90445-KAE-000

$5.12

WASHER, THRUST (18X32)

90456-KA4-000

$4.76

WASHER, THRUST (20MM)

90456-KS6-000

$10.84

WASHER (12MM)

90608-072-000

$3.80

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

BEARING, NEEDLE (25X29X22) (TOYO)

91011-KS6-003

$31.47

BOLT-WASHER (6X20)

93404-06020-08

$1.62
