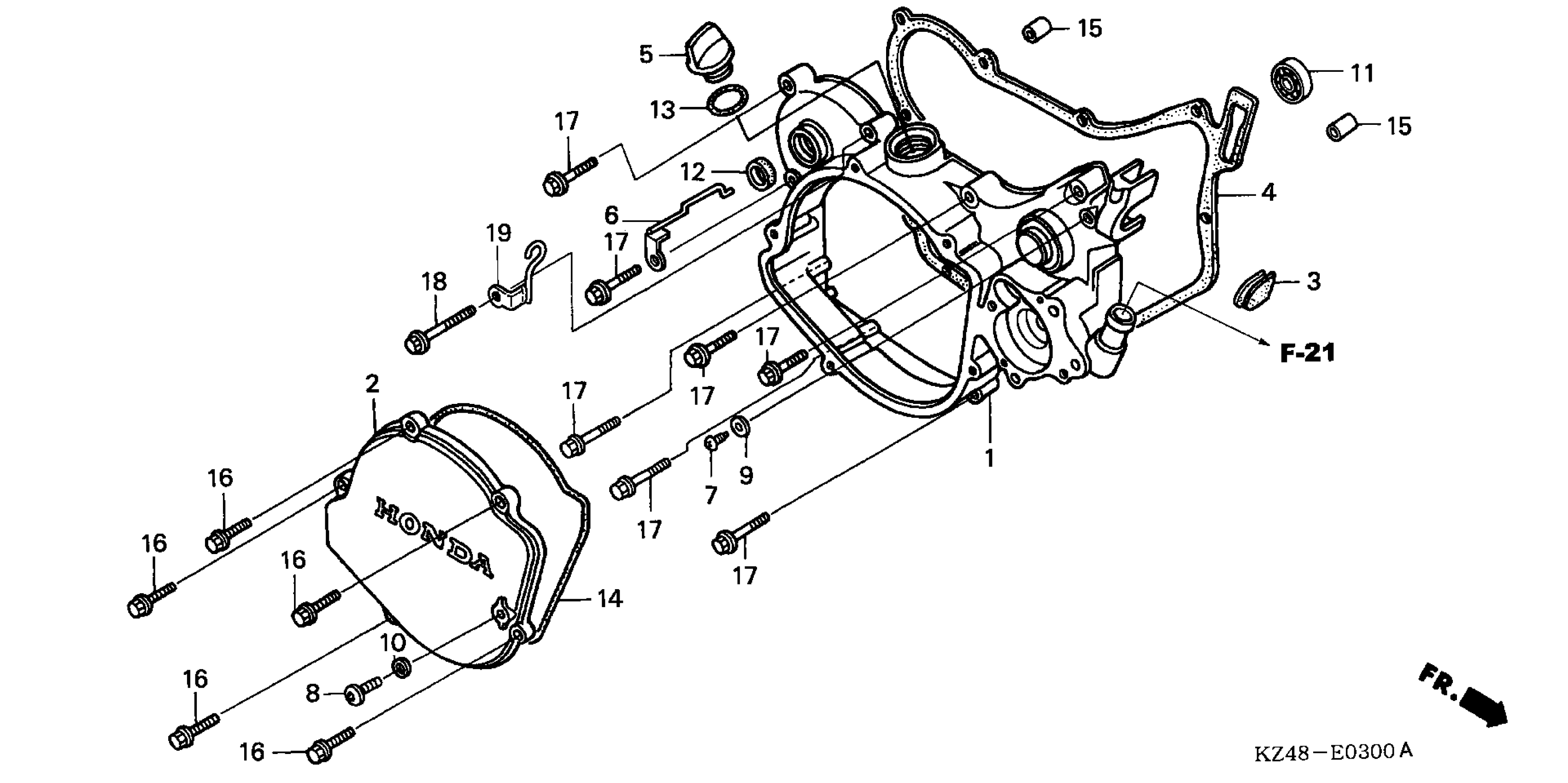

Honda CR125RA (02) MOTORCYCLE, JPN, VIN# JH2JE013-2M400001 TO JH2JE013-2M499999 RIGHT CRANKCASE COVER ('02-'04) Diagram

COVER, R. CRANKCASE

11340-KZ4-L10

Unavailable

COVER, CLUTCH

11342-KZ4-A90

Unavailable

GROMMET, R. COVER

11343-KZ4-A90

$2.68

GASKET, R. COVER

11394-KZ4-A90

$19.20

CAP, OIL FILLER

15611-KA4-710

$14.40

CLAMP, AIR VENT TUBE

16240-KZ4-L20

Unavailable

BOLT, SPECIAL (6MM)

90035-KZ4-620

Unavailable

SCREW, PAN (6X10)

90105-MM4-000

$2.21

WASHER, SEALING (6MM)

90430-PD6-003

$4.01

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

BEARING, RADIAL BALL (7X19X6) (TOYO)

91002-KA4-003

$21.67

OIL SEAL (16.5X25X5) (NOK)

91205-KA3-712

$6.16

O-RING (18X3)

91307-035-000

$2.92

O-RING, SPECIAL

91311-KS6-700

$10.15

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
