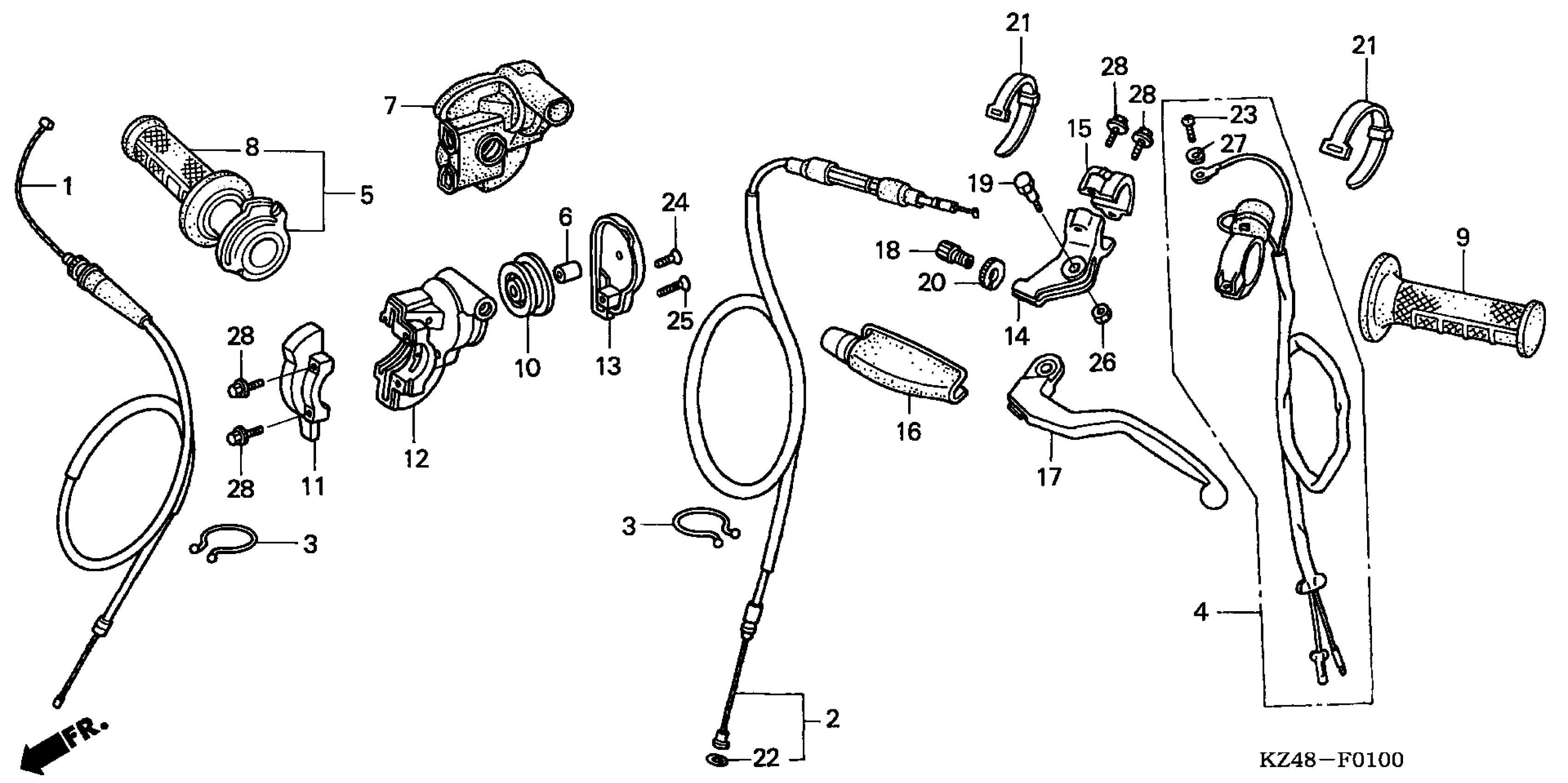

Honda CR125RA (02) MOTORCYCLE, JPN, VIN# JH2JE013-2M400001 TO JH2JE013-2M499999 HANDLE LEVER + SWITCH + CABLE ('02-'03) Diagram

CABLE, THROTTLE

17910-KZ4-J40

Unavailable

CABLE, CLUTCH This part replaces 22870-KZ4-J40.

22870-KZ4-J50

Unavailable

CABLE, CLUTCH

22870-KZ4-J50

Unavailable

LOCK, PURSE

32171-GF9-621

$2.13

SWITCH ASSY., STOP This part replaces 35130-KZ4-J21.

35130-KZ3-860

$44.30

GRIP, THROTTLE This part replaces 53140-KZ4-J30.

53140-KZ4-J31

$24.53

GRIP, THROTTLE

53140-KZ4-J31

$24.53

COLLAR B, HOUSING

53163-MAC-670

$8.55

COVER, THROTTLE HOUSING

53164-MAC-680

$30.45

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$10.28

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$10.28

ROLLER, THROTTLE CABLE

53166-ML3-600

$7.61

HOUSING A, GRIP

53167-KZ4-J00

$31.00

HOUSING B, GRIP

53168-KZ4-J00

$33.92

COVER B, HOUSING

53169-KZ4-J00

$15.42

BRACKET, L. HANDLE LEVER

53172-KAE-730

$34.90

HOLDER, L. LEVER BRACKET

53174-KCE-670

$13.46

COVER, L. HANDLE LEVER

53177-430-000

$11.00

LEVER, L. HANDLEBAR

53178-MAC-740

$19.97

BOLT, CLUTCH WIRE ADJUSTING

53192-KA3-700

$14.07

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$9.76

NUT, FIXING

90321-KF0-000

$9.76

BAND, WIRE

90650-KV6-003

$3.12

O-RING (5.8X1.9)

91357-KA4-004

$2.48

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

SCREW, OVAL (4X20)

93700-04020-0A

$1.49

SCREW, OVAL (4X25)

93700-04025-0A

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
