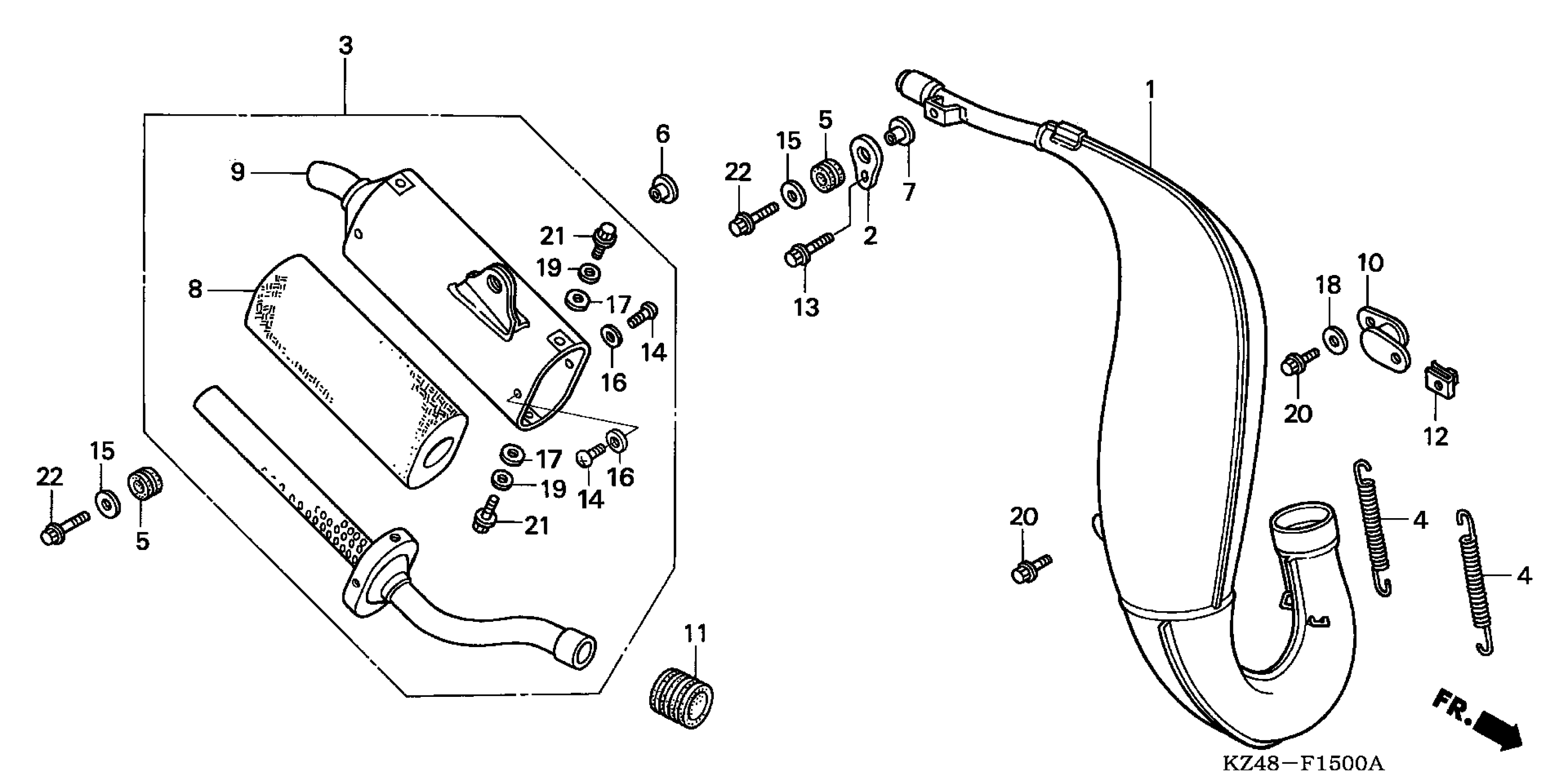

Honda CR125RA (02) MOTORCYCLE, JPN, VIN# JH2JE013-2M400001 TO JH2JE013-2M499999 EXPANSION CHAMBER Diagram

CHAMBER, EXPANSION

18300-KZ4-J40

Unavailable

STAY, RR. CHAMBER

18325-KS6-000

$20.23

MUFFLER This part replaces 18330-KZ4-L20.

18330-KZ4-L30

Unavailable

SPRING, EX. PIPE

18332-KS7-830

$10.35

RUBBER, MUFFLER

18334-KA3-830

$3.62

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.22

COLLAR, CHAMBER MOUNTING

18336-KZ3-J30

$7.19

WOOL, GLASS

18340-KZ4-860

Unavailable

BODY, MUFFLER This part replaces 18350-KZ4-L20.

18350-KZ4-L30

Unavailable

STAY, CHAMBER

18355-KS6-000

$20.94

RUBBER, MUFFLER CONNECTING PIPE

18365-KZ4-000

$17.20

NUT, CLIP (6MM)

80105-KC5-000

$4.84

BOLT-WASHER (6X16)

90102-KS6-000

$8.24

SCREW, TORUS (6X12)

90103-680-003

$3.87

WASHER, FENDER MOUNTING

90506-430-000

$2.71

WASHER, CRANK ARM

90545-044-000

$1.67

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94103-06000

$0.90

WASHER, SPRING (6MM)

94111-06000

$0.86

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

BOLT, FLANGE (6X25)

96001-06025-00

$1.91
