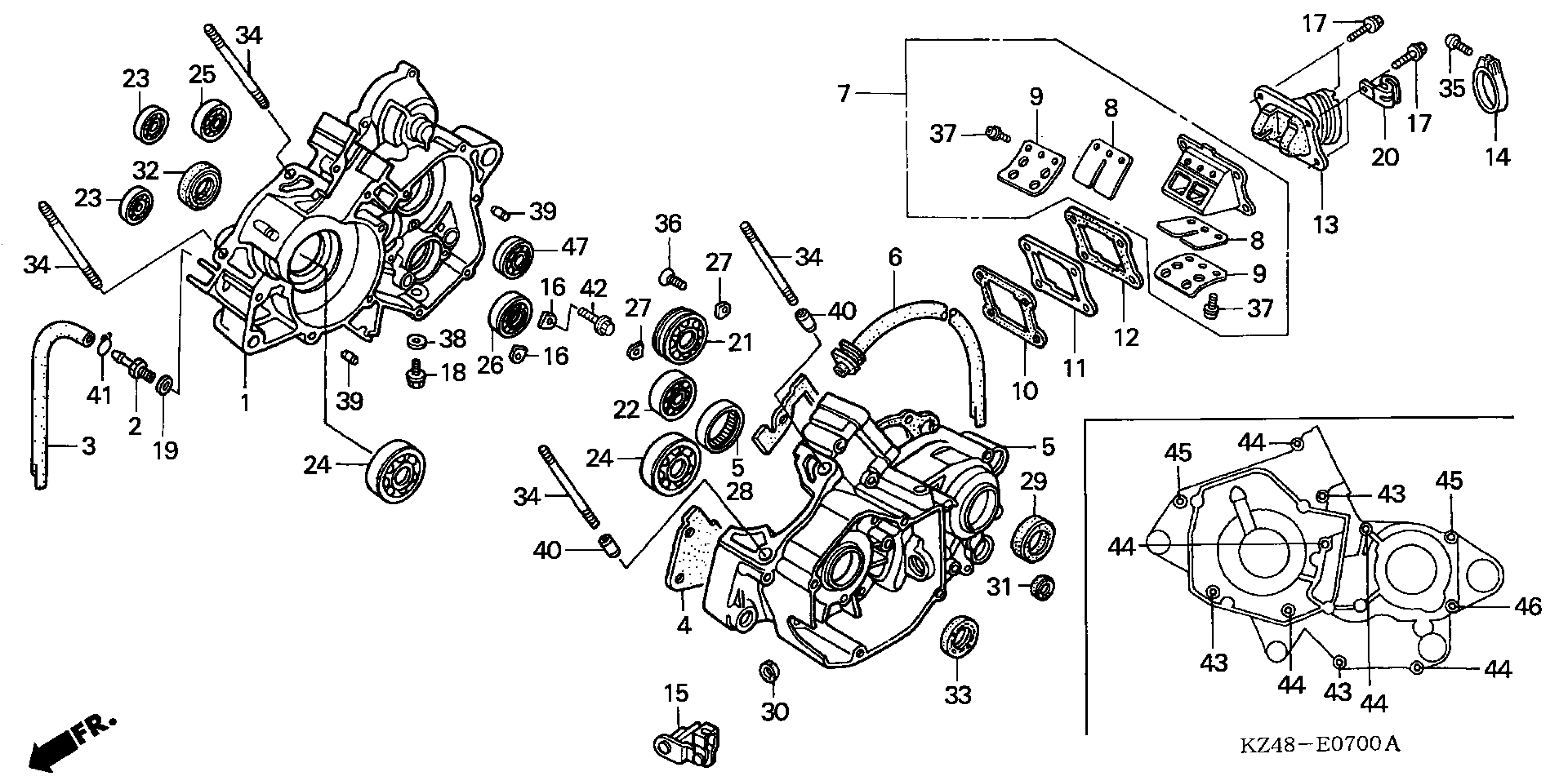

Honda CR125RA (02) MOTORCYCLE, JPN, VIN# JH2JE013-2M400001 TO JH2JE013-2M499999 CRANKCASE ('02) Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KZ4-L10

Unavailable

2

JOINT, EX. BREATHER

11105-KZ4-L20

Unavailable

3

TUBE, EX. BREATHER

11106-KZ4-L20

Unavailable

4

GASKET, CRANKCASE

11191-KZ4-L10

$17.30

5

CRANKCASE, L.

11200-KZ4-L10

Unavailable

6

TUBE, BREATHER

11210-KZ4-L20

Unavailable

7

VALVE ASSY., REED

14100-KZ4-L21

Unavailable

8

REED VALVE ONLY

14111-KZ4-L21

Unavailable

9

STOPPER, REED VALVE

14121-KZ4-L21

Unavailable

10

GASKET, REED VALVE

14132-KZ4-620

$6.11

11

SPACER, REED VALVE BODY

14133-KZ4-L20

Unavailable

12

GASKET B, REED VALVE BODY

14134-KZ4-L20

Unavailable

13

INSULATOR, CARBURETOR

16221-KZ4-L20

Unavailable

14

BAND, INSULATOR

16223-KA5-690

Unavailable

15

LIFTER, CLUTCH

22810-KS6-700

$61.19

16

PLATE A, BEARING SETTING

23521-KW3-000

$4.26

17

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

18

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.20

19

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

20

CLIP (4X50)

90601-KJ9-000

$2.95

21

BEARING, BALL (6204)

91001-KA3-711

$27.54

22

BEARING, RADIAL BALL (17X35X10)

91001-KZ4-J11

$14.84

23

BEARING, RADIAL BALL (7X19X6) (TOYO)

91002-KA4-003

$19.89

24

BEARING, RADIAL BALL (63/22) This part replaces 91002-KE1-014.

91002-KY4-901

$22.37

24

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$22.37

24

BEARING, RADIAL BALL (63/22) This part replaces 91002-466-008.

91002-KY4-901

$22.37

25

BEARING, RADIAL BALL (20X42X11) (KOYO)

91004-KZ4-A11

$21.70

26

BEARING, RADIAL BALL (6905Z)

91004-KZ4-L11

$14.56

27

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.66

28

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$16.41

29

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$10.44

30

OIL SEAL (10X17X4) This part replaces 91201-VB3-802.

91206-VA3-J02

$1.88

30

OIL SEAL (10X17X4) This part replaces 91202-KA3-711.

91206-VA3-J02

$1.88

30

OIL SEAL (10X17X4) This part replaces 91202-KA3-712.

91206-VA3-J02

$1.88

31

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.65

31

OIL SEAL (14X22X5) This part replaces 91203-KA4-772.

91203-KK3-830

$3.65

31

OIL SEAL (14X22X5)

91203-KK3-830

$3.65

32

OIL SEAL (30X45X8) (ARAI)

91203-KS6-004

$14.02

33

OIL SEAL (20X32X7) (NOK) This part replaces 91205-GC4-711.

91205-166-004

$15.97

33

OIL SEAL (20X32X7) (NOK)

91205-166-004

$15.97

34

BOLT, STUD (8X35)

92900-08035-3E

$2.07

35

SCREW, PAN (5X25)

93500-05025-0A

$1.28

36

SCREW, FLAT (6X12)

93600-06012-0A

$0.97

37

SCREW-WASHER (3X6)

93892-03006-08

$1.09

38

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

39

PIN, DOWEL (8X14)

94301-08140

$2.76

40

PIN, DOWEL (10X16)

94301-10160

$2.80

41

CLIP, TUBE (C8)

95002-45000

$1.15

42

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

43

BOLT, FLANGE (6X45)

96001-06045-00

$1.81

44

BOLT, FLANGE (6X50)

96001-06050-00

$2.69

45

BOLT, FLANGE (6X75)

96001-06075-00

$2.06

46

BOLT, FLANGE (6X85)

96001-06085-00

$3.40

47

BEARING, RADIAL BALL (6003)

96100-60030-00

$8.61
