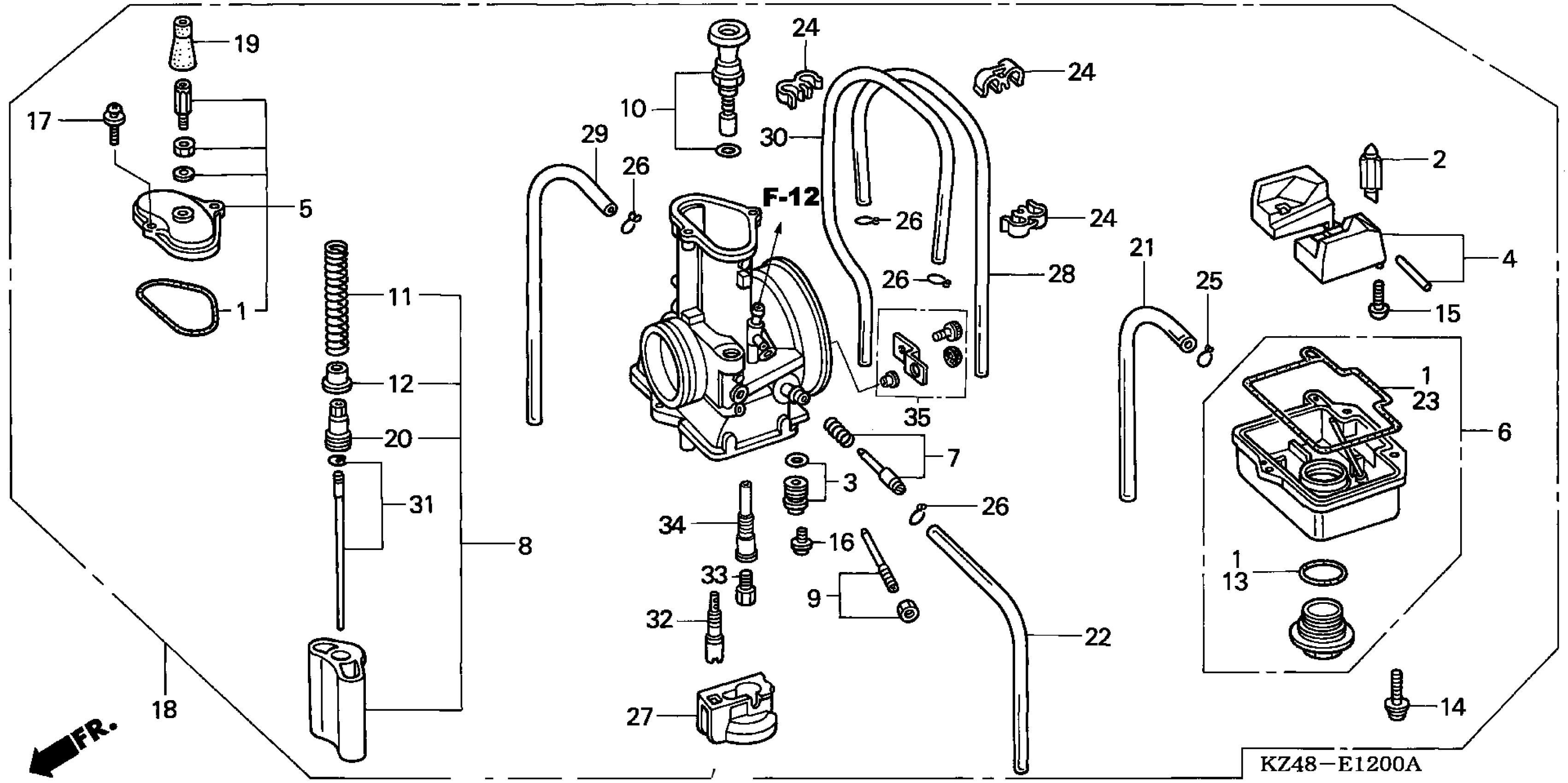

Honda CR125RA (02) MOTORCYCLE, JPN, VIN# JH2JE013-2M400001 TO JH2JE013-2M499999 CARBURETOR ('02-'03) Diagram

#

Description
Price

1

GASKET SET

16010-KZ4-L22

Unavailable

2

VALVE, FLOAT

16011-KZ4-A92

$42.36

3

VALVE SET, SEAT

16012-KZ4-A92

$7.77

4

FLOAT SET

16013-KZ4-L22

Unavailable

5

TOP SET

16014-KZ4-L22

Unavailable

6

CHAMBER SET, FLOAT

16015-KZ4-L22

Unavailable

7

SCREW SET A

16016-KZ4-A92

Unavailable

8

VALVE SET, THROTTLE

16022-KZ4-L22

Unavailable

9

SCREW SET B

16028-KZ4-A92

$6.72

10

VALVE SET, STARTER

16046-KZ4-A92

Unavailable

11

SPRING, COMPRESSION COIL

16050-KZ4-A92

Unavailable

12

COLLAR, SPRING SETTING

16066-KZ4-A92

Unavailable

13

O-RING

16075-KZ4-L22

Unavailable

14

SCREW-WASHER

16080-KZ4-L22

$1.49

15

SCREW, PAN

16081-KZ4-A92

Unavailable

16

SCREW

16082-KZ4-A92

Unavailable

17

SCREW-WASHER

16083-KZ4-L22

Unavailable

18

CARBURETOR ASSY. (TMX02A A)

16100-KZ4-L22

Unavailable

19

CAP, CABLE SEALING

16118-KZ4-A92

$4.75

20

HOLDER, CABLE

16137-KZ4-L22

Unavailable

21

TUBE, OVERFLOW

16143-KZ4-A92

$2.20

22

TUBE, AIR VENT

16144-KZ4-A92

$2.56

23

GASKET, FLOAT CHAMBER

16163-KZ4-L22

Unavailable

24

BINDER

16179-KZ4-A92

$4.26

25

CLIP, TUBE

16181-KZ4-A92

$1.49

26

CLIP, TUBE

16182-KZ4-A92

$1.49

27

PLATE, BUFFER

16185-KZ4-L22

Unavailable

28

TUBE, AIR VENT

16197-KZ4-L22

$9.91

29

TUBE, AIR VENT

16198-KZ4-L22

$8.66

30

TUBE, AIR VENT

16199-KZ4-A92

$3.03

31

NEEDLE SET, JET (6DFY5-74)

16204-KZ4-L22

Unavailable

32

JET, SLOW (#30) | (Optional).

99133-KZ3-0300

$11.41

32

JET, SLOW (#32.5)

99133-KZ3-0320

Unavailable

32

JET, SLOW (#37.5) | (Optional).

99133-KZ3-0370

Unavailable

32

JET, SLOW (#45) | (Optional).

99133-KZ4-0450

Unavailable

32

JET, SLOW (#50) | (Optional).

99133-KZ4-0500

Unavailable

32

JET, SLOW (#35) | (Optional).

99133-KZ3-0350

Unavailable

32

JET, SLOW (#27.5) | (Optional).

99133-KZ4-0270

Unavailable

33

JET, MAIN (#400)

99143-KZ4-4000

$13.08
