Description

Price

1

CLIP, PISTON PIN (10MM)

13115-147-000

$2.04

2

GEAR, PRIMARY DRIVE

13615-KS6-700

$59.87

3

COLLAR, DRIVE GEAR

13617-KS6-700

$30.10

4

CLUTCH (OUTER) This part replaces 22100-KZ4-A90.

22100-KZ4-L30

$267.07

5

CENTER, CLUTCH This part replaces 22120-KZ4-A90.

22120-KRN-A00

$102.75

6

DISK, CLUTCH FRICTION

22201-KS6-700

$16.23

7

PLATE, CLUTCH

22321-KA3-710

$18.79

8

PLATE, CLUTCH PRESSURE This part replaces 22351-KZ4-A90.

22351-KRN-A10

$50.38

9

PLATE, CLUTCH LIFTER

22352-KZ4-A90

$30.87

10

SPRING, CLUTCH

22401-KZ4-A90

$5.56

11

ROD, CLUTCH LIFTER

22850-KZ4-A90

$14.70

12

COLLAR, CLUTCH (OUTER)

28237-KZ4-A10

$33.07

13

BOLT, SPECIAL (10X25)

90013-430-000

$6.17

14

NUT (18MM)

90235-KA4-000

$10.18

15

WASHER, PLAIN (10MM)

90401-ML3-790

$6.34

16

WASHER, LOCK (18MM) This part replaces 90441-HA2-670.

90445-KAE-000

$4.56

17

WASHER, THRUST (18X32)

90456-KA4-000

$4.26

18

WASHER, THRUST (20MM)

90456-KS6-000

$9.95

19

WASHER (12MM)

90608-072-000

$3.63

20

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.56

21

BEARING, NEEDLE (25X29X22) (TOYO)

91011-KS6-003

$28.89

22

BOLT-WASHER (6X20)

93404-06020-08

$1.50

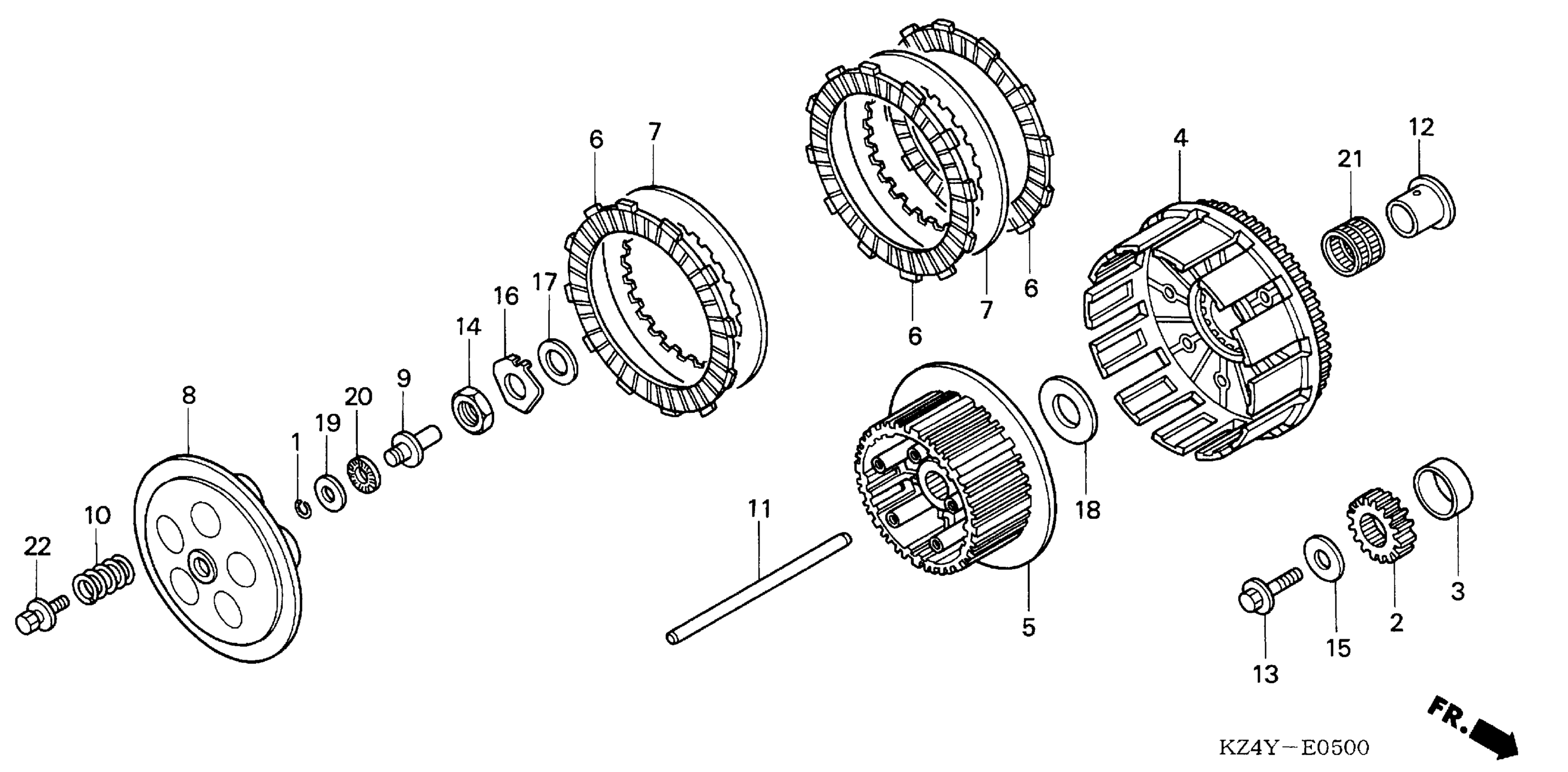

Honda CR125RA (01) MOTORCYCLE, JPN, VIN# JH2JE013-1M300001 CLUTCH Diagram
