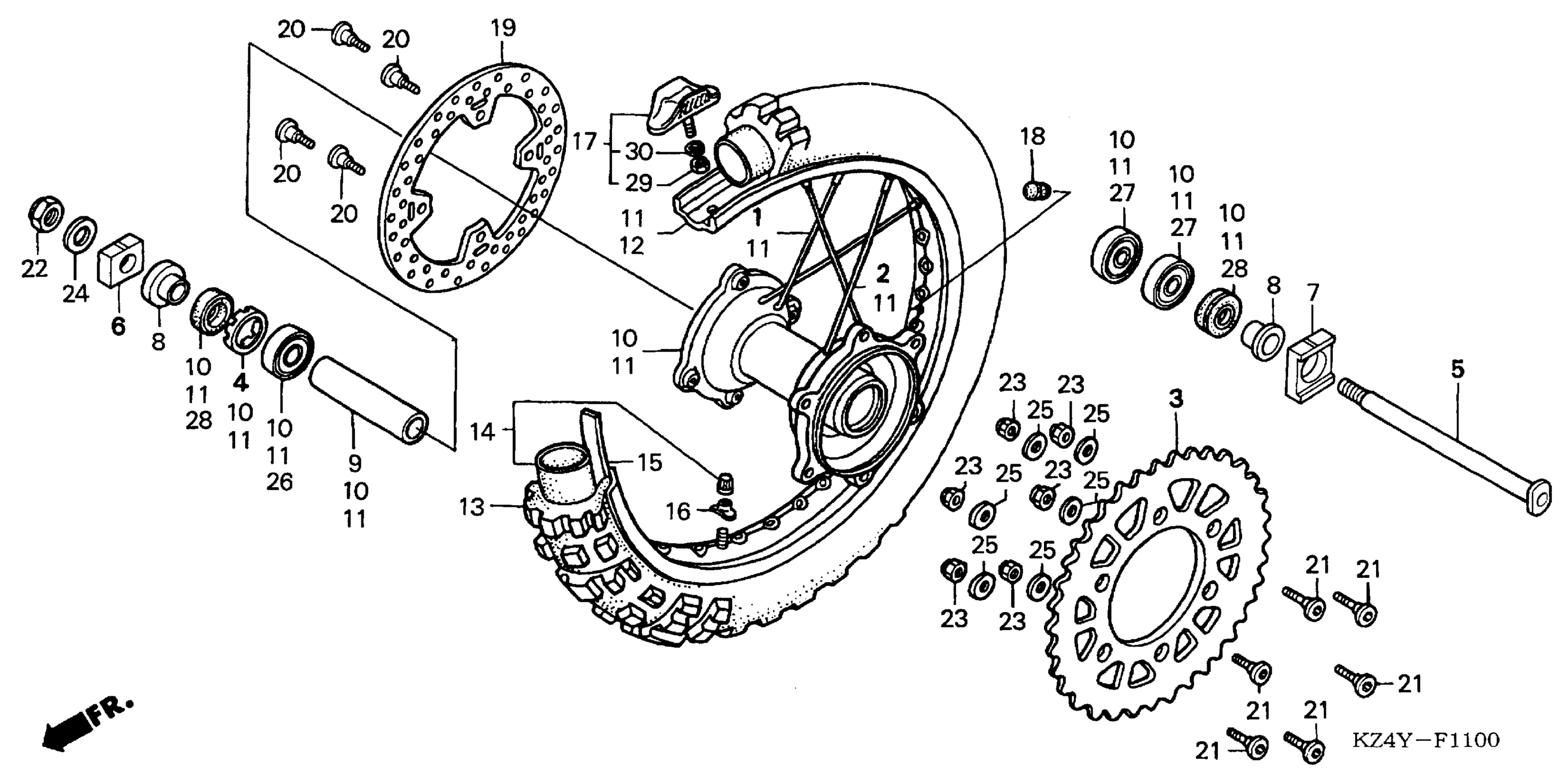

Honda CR125RA (00) MOTORCYCLE, JPN, VIN# JH2JE013-YM200001 REAR WHEEL Diagram

SPOKE SET A, RR. (210.00MM)

06420-KZ4-B00

$5.37

SPOKE SET B, RR. (207.0MM)

06421-KZ4-B00

$5.37

SPROCKET, FINAL DRIVEN (52T) SPROCKET, FINAL DRIVEN (53T)

41203-KZ4-J20

Unavailable

SPROCKET, FINAL DRIVEN (53T) | (Optional).

41204-KZ4-J20

$141.80

SPROCKET, FINAL DRIVEN (51T) | (Optional). This part replaces 41202-KZ4-J20.

41201-MEY-000

$115.77

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$19.28

AXLE, RR. WHEEL This part replaces 42301-KZ4-J20.

42301-KZ4-J40

$52.11

AXLE, RR. WHEEL

42301-KZ4-J40

$52.11

COLLAR, R. RR. AXLE

42306-KZ4-J20

$19.28

COLLAR, L. RR. AXLE

42305-KZ4-J20

Unavailable

COLLAR, RR. WHEEL SIDE

42311-KZ4-J20

$26.43

COLLAR, RR. WHEEL DISTANCE

42620-KZ4-J20

$27.72

HUB SUB-ASSY., RR.

42635-KZ4-J20

Unavailable

WHEEL SUB-ASSY., RR.

42650-KZ4-J20

Unavailable

RIM, RR. WHEEL

42701-KZ4-J01

Unavailable

TIRE, RR. (100/90-19) (57M K695) (DUNLOP)

42711-KZ4-611

Unavailable

TUBE, TIRE (DUNLOP) (NOT AVAILABLE) This part replaces 42712-KZ4-611.

44712-300-004

$65.43

TUBE, TIRE (DUNLOP)

44712-300-004

$65.43

FLAP, TIRE (DUNLOP) This part replaces 42713-KZ4-611.

42713-KZ3-611

$5.90

FLAP, TIRE (DUNLOP) This part replaces 44713-300-004.

42713-KZ3-611

$5.90

CAP, VALVE

42714-KA3-710

$10.46

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

CAP, RIM HOLE

42717-329-000

$4.21

DISK, RR. BRAKE

43351-KZ3-B00

Unavailable

BOLT, DISK (8X22)

90105-MK5-010

$4.94

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

NUT, U (22MM)

90305-KZ4-J20

$8.96

NUT, U (8MM)

90309-ML3-791

$4.35

WASHER (22X35X2)

90401-KZ4-J20

$2.89

WASHER (8MM)

90465-MC4-000

$2.51

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$18.42

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.94

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
