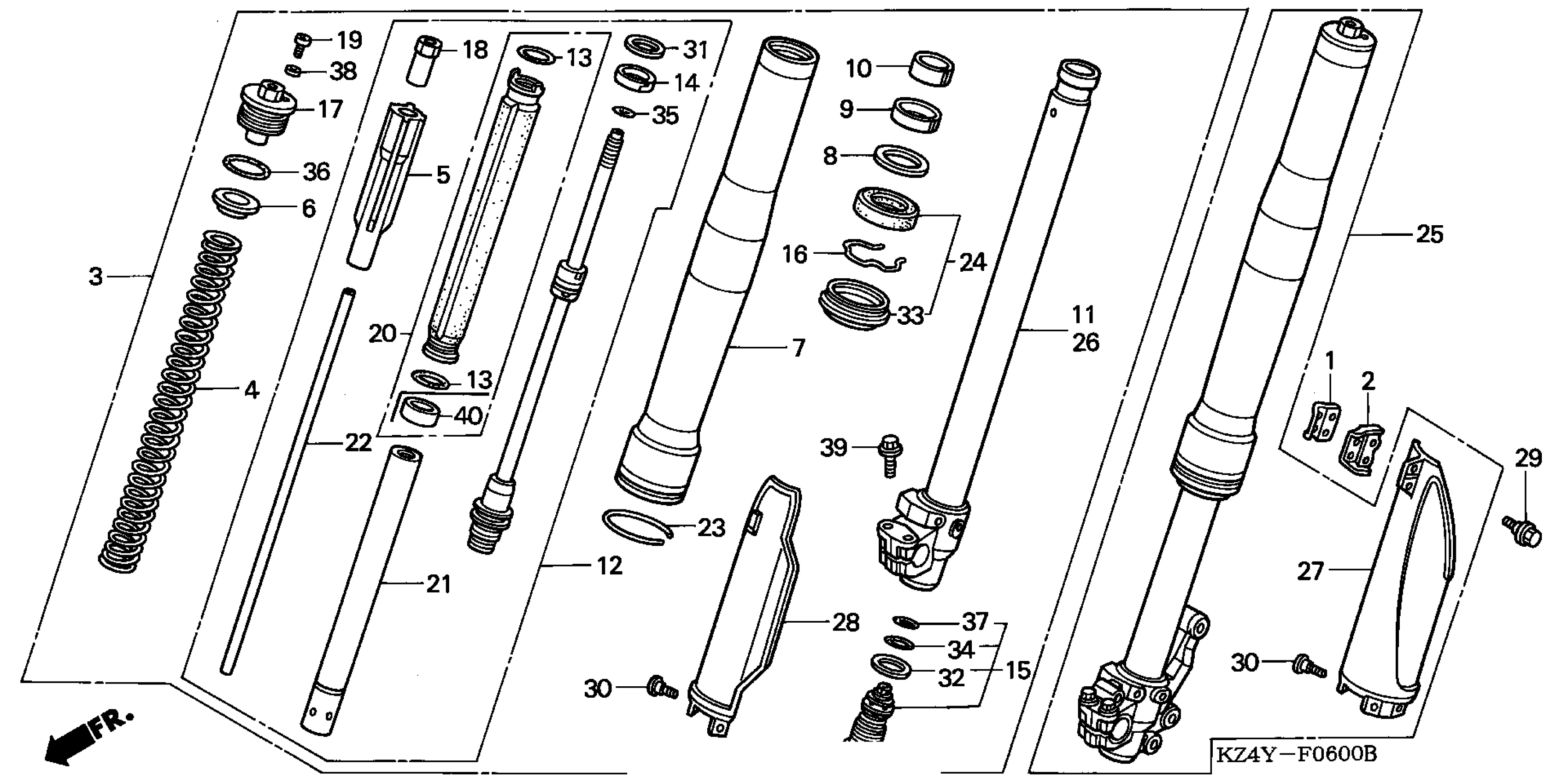

Honda CR125RA (00) MOTORCYCLE, JPN, VIN# JH2JE013-YM200001 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-GBF-J00

$10.73

2

CLAMP B, FR. BRAKE HOSE

45462-GBF-J00

$9.37

3

FORK ASSY., R. FR. *TNATURAL* (KAYABA) (NATURAL)

51400-KZ4-J21ZA

Unavailable

4

SPRING, FR. FORK (4.1N/MM,0.42KGF/MM)

51401-KZ4-J21

Unavailable

4

SPRING, FR. FORK (3.90N/MM,0.40KGF/MM) | (Optional).

51402-KZ4-J21

Unavailable

4

SPRING, FR. FORK (4.30N/MM,0.44KGF/MM) | (Optional).

51403-KZ4-J21

Unavailable

5

GUIDE, SPRING

51404-KZ4-J21

Unavailable

6

SEAT, SPRING

51408-MAC-741

Unavailable

7

TUBE (OUTER)

51410-KZ4-J21

Unavailable

8

RING, BACK-UP

51412-MAC-741

Unavailable

9

BUSH, GUIDE

51414-KZ4-J11

$13.65

10

BUSH, SLIDER

51415-KZ4-J11

$12.97

11

PIPE, R. SLIDE

51420-KZ4-J21

Unavailable

12

DAMPER, FR.

51430-KZ4-J21

Unavailable

13

SUSPENDER

51432-KZ4-J21

$7.30

14

RING, BAND

51433-KZ4-J21

Unavailable

15

BOLT, CENTER

51441-KZ4-J21

Unavailable

16

RING, OIL SEAL STOP

51447-MAC-741

$6.95

17

BOLT ASSY., FR. FORK This part replaces 51450-KZ4-J01.

51450-KZ4-J51

Unavailable

18

NUT, LOCK

51451-KZ4-J21

Unavailable

19

BOLT, PLUG

51456-KZ4-711

Unavailable

20

BLADDER SET

51460-KZ4-J21

Unavailable

21

TUBE, CYLINDER

51461-KZ4-J21

Unavailable

22

COLLAR, REBOUND NEEDLE

51467-KZ4-J21

Unavailable

23

RING, WEAR

51476-KZ4-711

$7.62

24

SEAL SET, FR. FORK

51490-KZ4-J21

$23.92

25

FORK ASSY., L. FR. *TNATURAL* (KAYABA) (NATURAL)

51500-KZ4-J21ZA

Unavailable

26

PIPE, L. SLIDE

51520-KZ4-J21

Unavailable

27

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51610-MAC-781ZA

Unavailable

28

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51620-MAC-781ZA

Unavailable

29

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

30

BOLT, PROTECTOR

90113-MAC-780

$3.53

31

WASHER

90544-KZ4-J21

Unavailable

32

WASHER, SPECIAL

90544-MAC-741

Unavailable

33

DUST SEAL

91254-KZ4-J21

$8.20

34

O-RING (24.7X2.4)

91256-MAC-741

Unavailable

35

O-RING (12.3X2.4)

91257-KZ4-711

$2.70

36

O-RING (41.7X3.5)

91258-MAC-741

$8.03

37

O-RING (21.9X2.0)

91259-MAC-741

Unavailable

38

O-RING (2.8X1.9)

91260-KZ4-711

$2.92

39

BOLT, FLANGE (8X40)

95701-08040-08

$2.28

39

BOLT, FLANGE (8X40) This part replaces 96300-08040-08.

95701-08040-08

$2.28
