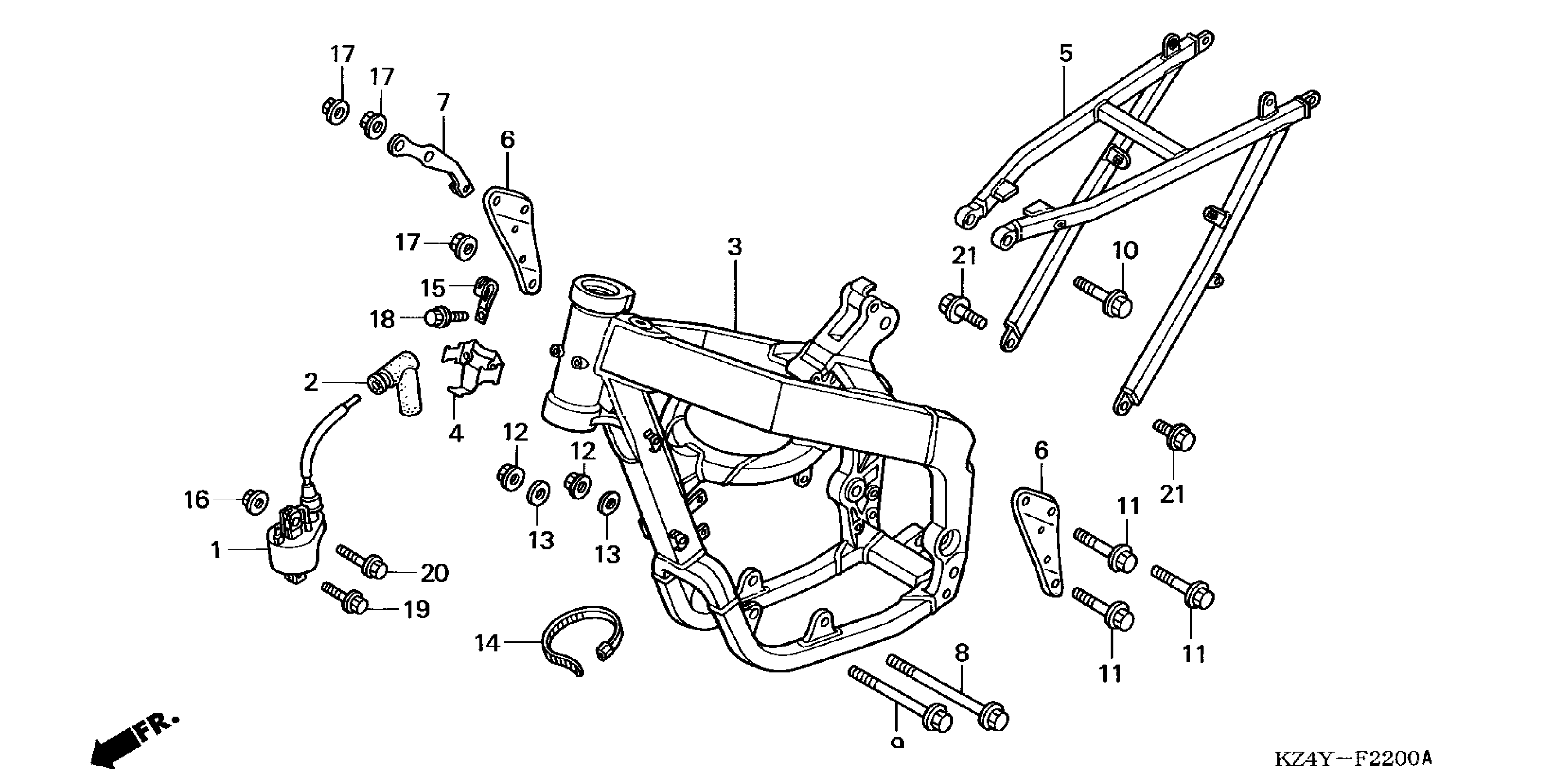

Honda CR125RA (00) MOTORCYCLE, JPN, VIN# JH2JE013-YM200001 FRAME Diagram

#

Description
Price

1

COIL ASSY., IGNITION This part replaces 30500-KZ4-J21.

30500-MEB-671

$57.86

2

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$28.50

3

FRAME

50100-KZ4-J20

Unavailable

4

BRACKET, IGNITION CONTROL MODULE (CDI)

50124-KZ4-J20

Unavailable

5

FRAME, RR.

50200-KZ3-J30

Unavailable

5

FRAME, RR. This part replaces 50200-KZ4-J20.

50200-KZ3-J30

Unavailable

6

BRACKET, HEAD HANGER

50407-KZ4-J20

Unavailable

7

STAY, OIL CUP

50409-KZ4-J20

Unavailable

8

BOLT, FLANGE (10X142)

90101-KZ4-J10

$9.78

9

BOLT, FLANGE (10X115)

90102-KZ3-J10

Unavailable

10

BOLT, FLANGE (8X73)

90103-KZ4-J20

Unavailable

11

BOLT, FLANGE (8X55)

90119-VM6-003

$6.51

12

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.43

12

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.43

12

NUT, FLANGE (10MM)

94050-10000

$1.43

13

WASHER (10MM)

90410-HC4-000

$3.65

14

BAND, WIRE

90651-KV6-003

$3.40

15

CLIP (2X70)

91413-679-000

$8.51

16

NUT, FLANGE (6MM)

94050-06000

$0.60

17

NUT, FLANGE (8MM)

94050-08000

$0.87

18

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

19

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

20

BOLT, FLANGE (6X25)

96001-06025-00

$2.49

21

BOLT, FLANGE (8X25)

96300-08025-00

$1.50
