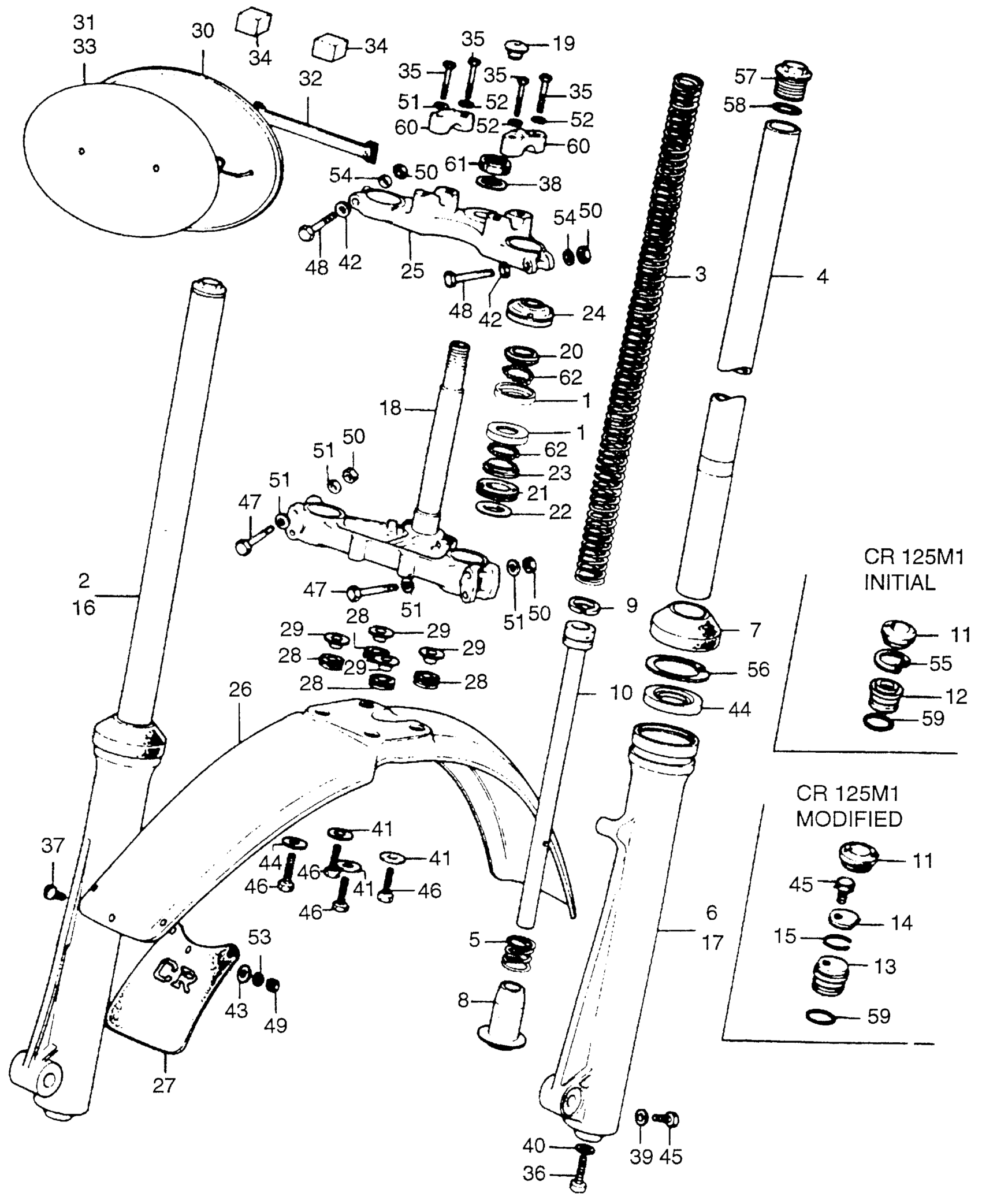

Honda CR125MA MOTORCYCLE, JPN, VIN# CR125M-1000001 TO CR125M-1025519 STEERING STEM + FRONT FORK + FENDER Diagram

#

Description
Price

1

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

1

RACE, STEERING TOP BALL

50301-041-010

$12.39

2

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-360-000

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-360-000

Unavailable

4

PIPE, FR. FORK (NOT AVAILABLE)

51410-360-000

Unavailable

5

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

6

CASE, R. FR. FORK (LOWER) | Use up to Frame SN 1012254 This part replaces 51421-360-000.

51421-360-305

Unavailable

6

CASE, R. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 1012255

51421-360-010

Unavailable

6

CASE, R. FR. FORK (LOWER) | Use up to Frame SN 1012254

51421-360-305

Unavailable

7

DUST SEAL (SHOWA) This part replaces 51425-110-003.

91254-436-003

$16.75

7

DUST SEAL (SHOWA)

91254-436-003

$16.75

8

PIECE, OIL LOCKING (NOT AVAILABLE)

51432-360-000

Unavailable

9

RING, PISTON (NOT AVAILABLE)

51437-331-770

Unavailable

10

SEAT (LOWER) (NOT AVAILABLE)

51440-360-000

Unavailable

16

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-360-000

Unavailable

17

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use up to Frame SN 1012254 This part replaces 51521-360-000.

51521-360-305

Unavailable

17

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 1012255

51521-360-010

Unavailable

17

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use up to Frame SN 1012254

51521-360-305

Unavailable

18

STEM, STEERING *A1* (SEMI GLAZED BLACK)

53200-360-000SG

Unavailable

19

CAP, STEERING STEM (NOT AVAILABLE)

53209-360-000

Unavailable

20

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

20

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

21

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

22

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

23

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

23

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

23

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

23

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

24

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

25

BRIDGE, FORK TOP *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 53230-360-000SG.

53230-360-305SG

Unavailable

25

BRIDGE, FORK TOP *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) | Use up to Frame SN 2001412

53230-360-305SG

Unavailable

26

FENDER, FR. *NH42MC* (CUSTOM SILVER) (NOT AVAILABLE)

61100-357-000NQ

Unavailable

27

FLAP, FR. FENDER (NOT AVAILABLE) This part replaces 61101-357-000.

61101-358-000

Unavailable

28

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

29

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

29

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

29

COLLAR, RR. FENDER

61105-428-000

Unavailable

30

PLATE ASSY., NUMBER *NH42MC* (CUSTOM SILVER) (NOT AVAILABLE)

61131-357-000NQ

Unavailable

31

PLATE A, NUMBER (YELLOW) (NOT AVAILABLE)

61132-357-810

Unavailable

32

BAND, FR. NUMBER PLATE

61133-357-000

Unavailable

33

PLATE B, NUMBER (WHITE) (NOT AVAILABLE)

61133-357-810

Unavailable

34

CUSHION, NUMBER PLATE (NOT AVAILABLE)

61138-360-000

Unavailable

35

BOLT, FLANGE (8X36)

90111-362-000

$4.80

36

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

36

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

37

SCREW (4X12)

90164-357-000

Unavailable

38

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.84

38

WASHER, STEERING STEM

90503-051-870

$2.84

39

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

40

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

41

WASHER (6.5X20)

90545-292-000

$1.77

42

WASHER, PLAIN (8MM)

90518-921-000

$1.49

42

WASHER, PLAIN (8MM) This part replaces 90518-931-000.

90518-921-000

$1.49

42

WASHER, PLAIN (8MM) This part replaces 90555-283-000.

90518-921-000

$1.49

43

WASHER, SPECIAL (4MM) (NOT AVAILABLE)

90555-357-000

Unavailable

44

OIL SEAL SET (FR FORK)

51495-331-405

$19.75

44

OIL SEAL SET (FR FORK) This part replaces 91255-331-671.

51495-331-405

$19.75

45

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

45

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

45

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

46

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

46

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

46

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

47

BOLT, HEX. (8X56) This part replaces 92000-08056-0A.

92101-08056-0A

Unavailable

48

BOLT, HEX. (8X56) This part replaces 92000-08056-0B.

92101-08056-0B

Unavailable

49

NUT, HEX. (4MM)

94001-04000-0S

$1.49

50

NUT, HEX. (8MM)

94001-08000-0S

$1.49

51

WASHER, PLAIN (8MM)

94102-08000

$1.49

52

WASHER, FLAT (8MM)

94102-08200

$1.49

53

WASHER, SPRING (4MM)

94111-04000

$1.49

54

WASHER, SPRING (8MM)

94111-08000

$1.49

56

RING, OIL SEAL STOP | Use from Frame SN 1012255

90601-354-000

$5.13

56

CIRCLIP (INNER) (45MM) (NOT AVAILABLE) | Use up to Frame SN 1012254

94521-45000

Unavailable

57

BOLT D1, FORK

94605-27101

$8.00

58

O-RING (23X2.4)

94608-30000

$1.49

60

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

61

NUT C, STEERING STEM

95020-13100

Unavailable

62

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
