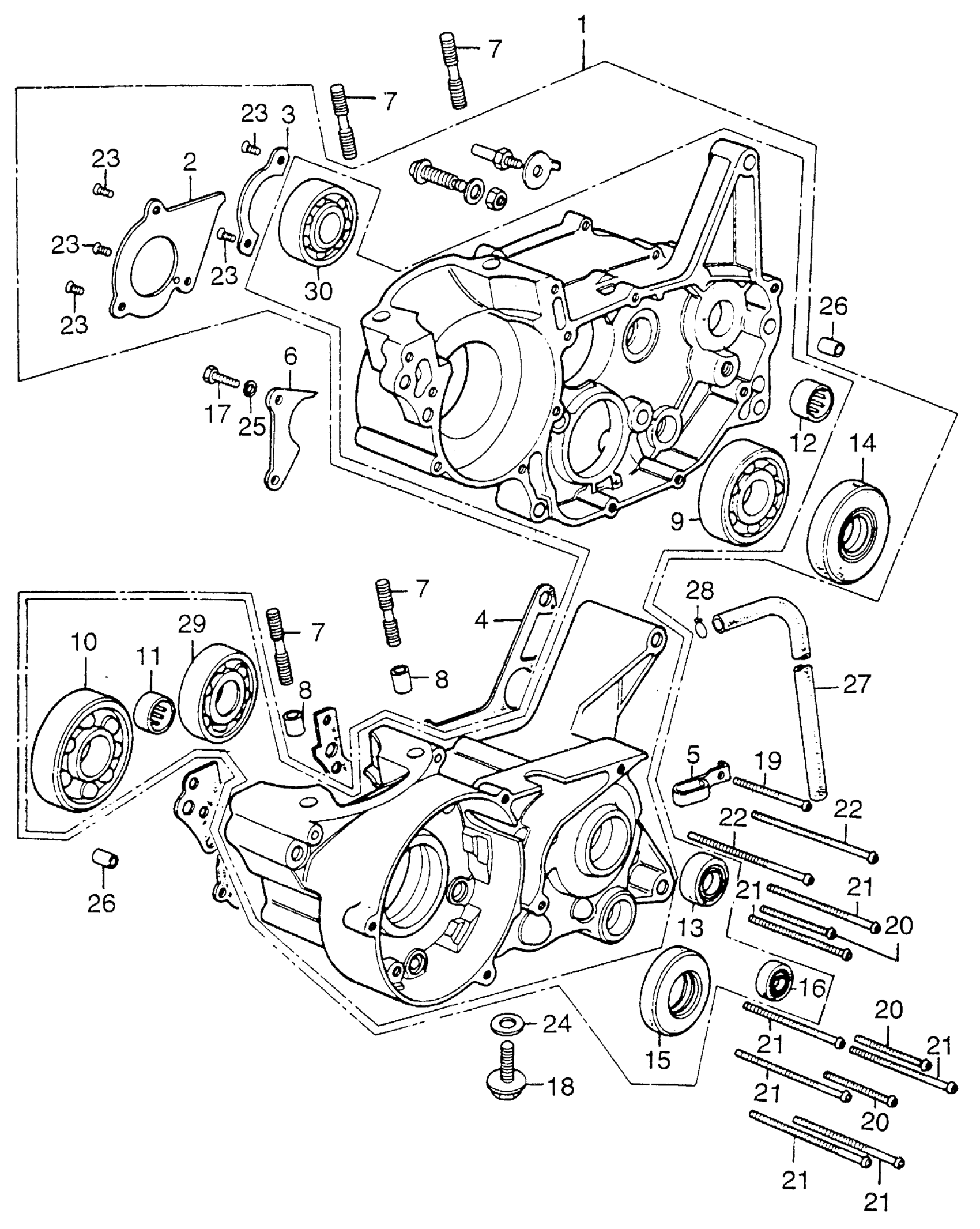

Honda CR125MA MOTORCYCLE, JPN, VIN# CR125M-1000001 TO CR125M-1025519 CRANKCASE SET Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE) This part replaces 11000-360-010.

11000-400-000

Unavailable

1

CRANKCASE SET (NOT AVAILABLE) This part replaces 11000-360-020.

11000-400-000

Unavailable

1

CRANKCASE SET (NOT AVAILABLE) This part replaces 11000-360-700.

11000-400-000

Unavailable

1

CRANKCASE SET (NOT AVAILABLE)

11000-400-000

Unavailable

2

PLATE A, BEARING SET (NOT AVAILABLE)

11104-360-000

Unavailable

3

PLATE B, BEARING SETTING (NOT AVAILABLE)

11105-360-000

Unavailable

4

GASKET, CRANKCASE | Use up to Engine SN 1003030 This part replaces 11191-360-000.

11191-360-306

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-360-010.

11191-360-306

Unavailable

4

GASKET, CRANKCASE | Use from Engine SN 1007046 This part replaces 11191-360-020.

11191-360-306

Unavailable

5

CLAMP, TUBE (NOT AVAILABLE)

11205-360-000

Unavailable

6

PLATE, GUIDE (NOT AVAILABLE) | Use up to Engine SN 1001378 This part replaces 24328-360-000.

24328-360-305

Unavailable

6

PLATE, GUIDE (NOT AVAILABLE)

24328-360-305

Unavailable

7

BOLT, CYLINDER STUD (NOT AVAILABLE)

90031-360-000

Unavailable

8

PIN, DOWEL (10X12)

90701-360-000

Unavailable

9

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

9

BEARING, RADIAL BALL (63/22) This part replaces 91001-360-004.

91002-KY4-901

$24.38

9

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

10

BEARING, BALL (6305) (NACHI) This part replaces 91002-360-004.

91002-360-005

Unavailable

10

BEARING, BALL (6305) (NACHI)

91002-360-005

Unavailable

11

BEARING, NEEDLE (15X22) This part replaces 91014-360-006.

91106-KC6-003

Unavailable

11

BEARING, NEEDLE (15X22)

91106-KC6-003

Unavailable

12

BEARING, NEEDLE (15X23X12) (TOMUSON)

91016-360-006

Unavailable

13

OIL SEAL (20X32X6) (NOK)

91201-360-005

$4.87

13

OIL SEAL (20X32X6) (NOK) This part replaces 91201-360-013.

91201-360-005

$4.87

14

OIL SEAL (28X56X9)

91203-360-003

Unavailable

15

OIL SEAL (25X45X7)

91204-360-003

Unavailable

16

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

17

BOLT, HEX. (6X16) | Use from Engine SN 1001379 This part replaces 92000-06016.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) | Use from Engine SN 1001379 This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) | Use from Engine SN 1001379 This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) | Use from Engine SN 1001379 This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) | Use from Engine SN 1001379

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) | Use from Engine SN 1001379 This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

19

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

19

SCREW, PAN (6X32)

93500-06032-0A

$1.49

20

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

20

SCREW, PAN (6X45)

93500-06045-0A

$1.49

21

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

21

SCREW, PAN (6X65)

93500-06065-0A

$1.53

22

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

22

SCREW, PAN (6X80)

93500-06080-0A

$1.49

23

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

23

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

24

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

25

WASHER, SPRING (6MM) | Use from Engine SN 1001379

94111-06000

$1.49

26

PIN A, DOWEL (10X16)

94301-10160

$2.28

27

BULK HOSE, FUEL (5.5X3000) (5.5X260)

95001-55003-60M

$47.32

27

BULK HOSE, FUEL (5.5X3000) (5.5X300) | Use up to Engine SN 1002262

95001-55003-60M

$47.32

28

CLIP, TUBE (B10)

95002-02100

$1.90

29

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

30

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040.

96120-63040-10

$22.40

30

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040-00.

96120-63040-10

$22.40

30

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40
