- CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025
TRANSMISSION

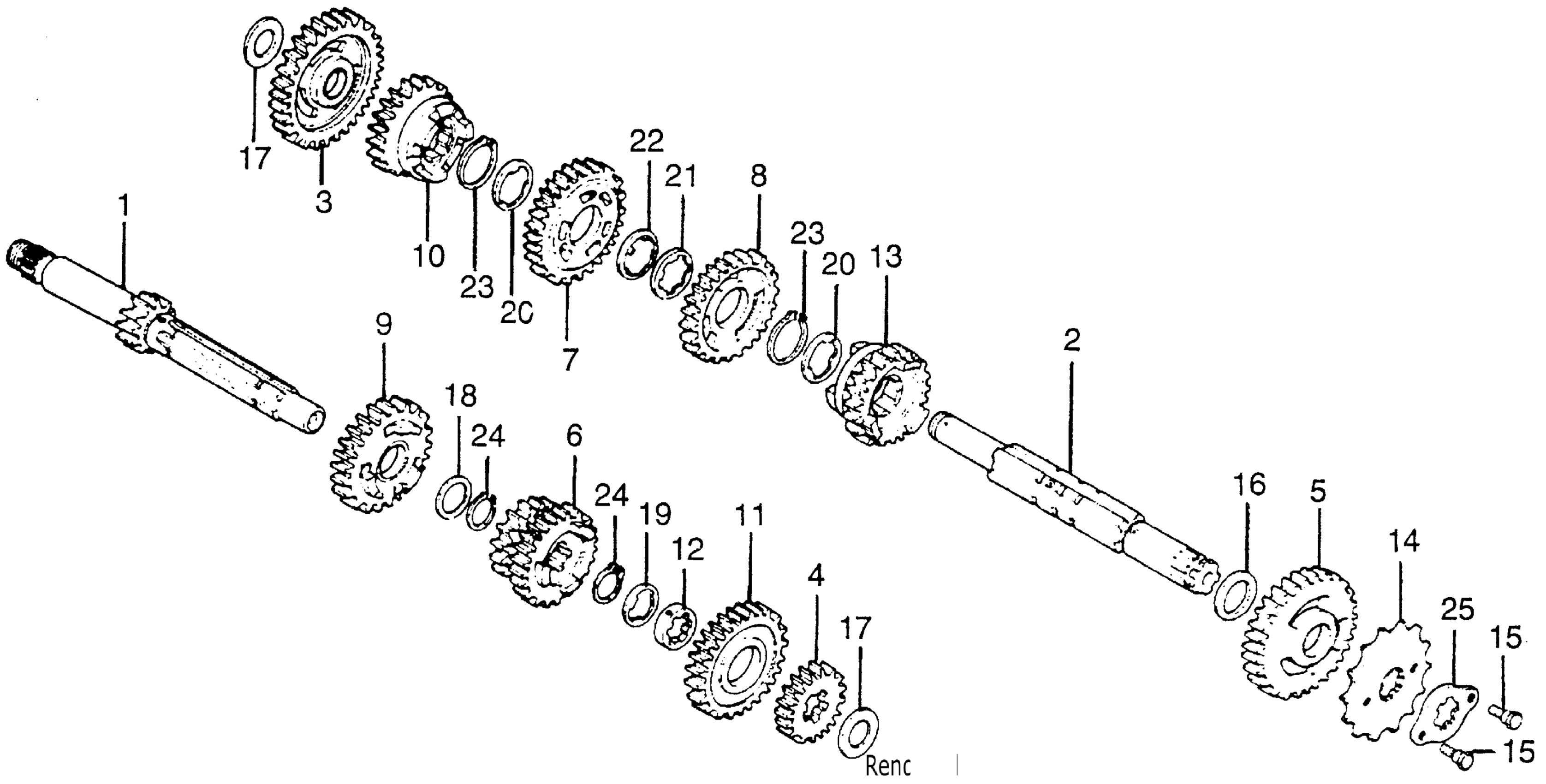

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 TRANSMISSION Diagram
#
Description
Price
1
MAINSHAFT, TRANSMISSION
23210-360-700
Unavailable
2
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-360-700
Unavailable
3
GEAR, COUNTERSHAFT LOW (32T)
23410-400-000
Unavailable
4
GEAR, MAINSHAFT SECOND (18T)
23421-360-000
Unavailable
5
GEAR, COUNTERSHAFT SECOND (29T)
23431-400-000
Unavailable
6
GEAR, MAINSHAFT THIRD & FOURTH (20T 22T) (NOT AVAILABLE)
23441-400-000
Unavailable
7
GEAR, COUNTERSHAFT THIRD (26T) (NOT AVAILABLE)
23451-400-000
Unavailable
8
GEAR, COUNTERSHAFT FOURTH (24T) (NOT AVAILABLE)
23461-400-000
Unavailable
9
GEAR, MAINSHAFT FIFTH (24T) (NOT AVAILABLE)
23470-400-000
Unavailable
10
GEAR, COUNTERSHAFT FIFTH (23T) (NOT AVAILABLE)
23481-400-000
Unavailable
11
GEAR, MAINSHAFT SIXTH (25T) (NOT AVAILABLE)
23491-400-000
Unavailable
12
COLLAR, MAINSHAFT SIXTH SPLINE (NOT AVAILABLE)
23492-360-000
Unavailable
13
GEAR, COUNTERSHAFT SIXTH (22T) (NOT AVAILABLE)
23501-400-000
Unavailable
14
SPROCKET, DRIVE
23801-121-000
Unavailable
14
SPROCKET, DRIVE This part replaces 23803-360-810.
23801-121-000
Unavailable
14
SPROCKET, DRIVE (15T) | (Optional). This part replaces 23804-360-000.
23801-230-000
Unavailable
17
WASHER, THRUST (15MM)
90451-166-000
Unavailable
17
WASHER, THRUST (15MM) This part replaces 90454-360-000.
90451-166-000
Unavailable
18
WASHER A, THRUST (20MM) (NOT AVAILABLE)
90457-360-000
Unavailable
19
WASHER (20MM) (NOT AVAILABLE)
90461-360-000
Unavailable
20
WASHER (22MM) (NOT AVAILABLE)
90462-360-000
Unavailable
