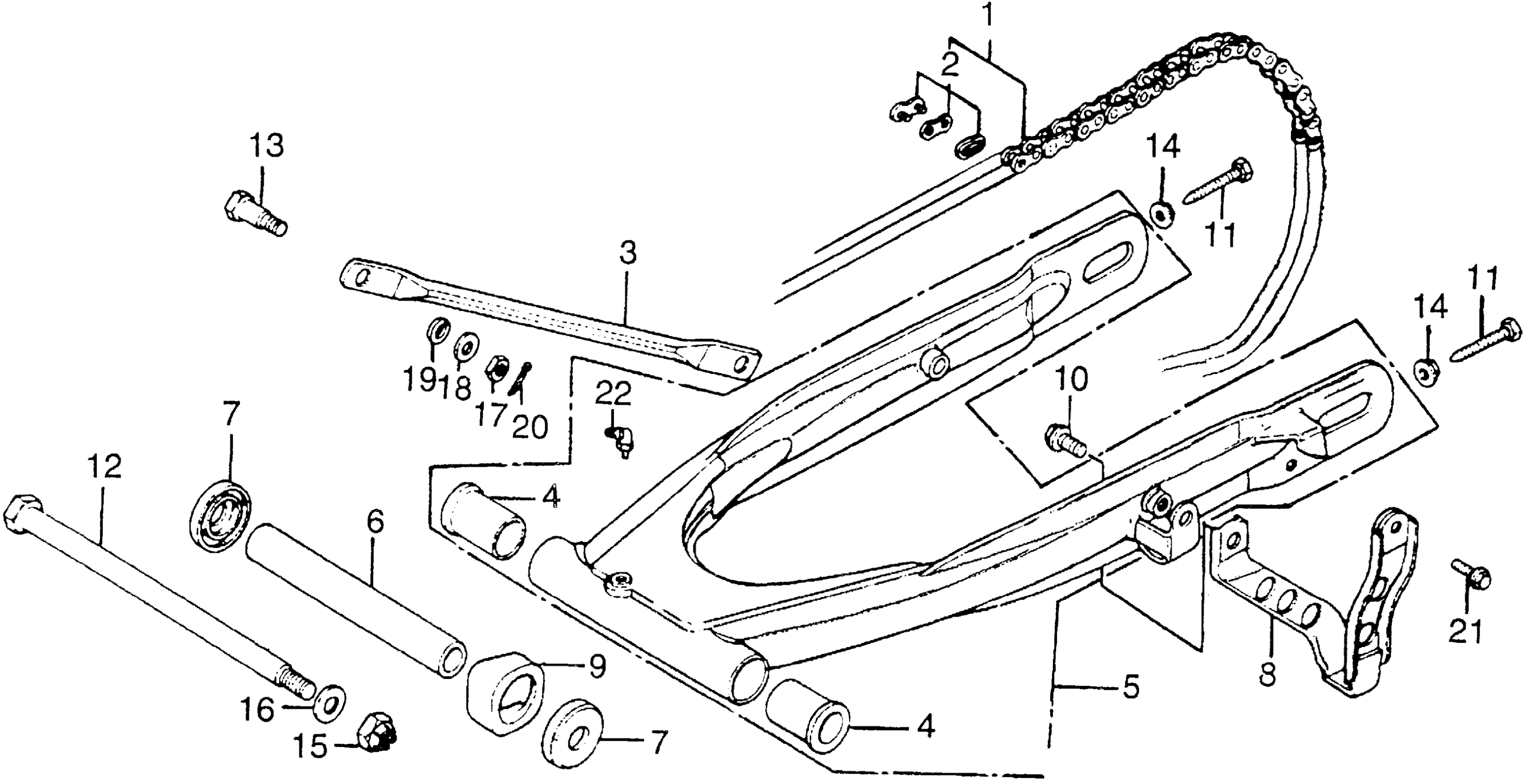

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 SWINGARM Diagram

CHAIN, DRIVE

405W3-KE1-505

Unavailable

CHAIN, DRIVE This part replaces 40530-KC1-003.

405W3-KE1-505

Unavailable

CHAIN, DRIVE This part replaces 40530-360-701.

405W3-KE1-505

Unavailable

CHAIN, DRIVE (124L) (DAIDO) (NOT AVAILABLE) | (Optional).

40530-360-811

Unavailable

MASTER LINK

40531-237-680

$4.15

MASTER LINK (DAIDO) This part replaces 40531-355-003.

40531-355-013

$4.15

MASTER LINK (DAIDO)

40531-355-013

$4.15

MASTER LINK This part replaces 40531-360-701.

40533-943-003

$4.56

MASTER LINK This part replaces 40531-399-003.

40533-943-003

$4.56

MASTER LINK

40533-943-003

$4.56

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-360-000

Unavailable

BUSH, PIVOT THRUST This part replaces 52109-360-300.

52109-360-310

$41.11

BUSH, PIVOT THRUST

52109-360-310

$41.11

SWINGARM ASSY., RR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

52110-400-010ZA

Unavailable

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-360-010

Unavailable

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$11.80

GUIDE, CHAIN (NOT AVAILABLE)

52156-400-000

Unavailable

SLIDER, CHAIN (NOT AVAILABLE)

52170-400-000

Unavailable

BOLT (10X12) (NOT AVAILABLE)

90082-704-000

Unavailable

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

BOLT, RR. SWINGARM PIVOT

90121-360-010

Unavailable

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

NUT, HEX. (8MM)

90309-357-000

$3.40

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

WASHER, TENSIONER ARM (NOT AVAILABLE)

90505-708-000

Unavailable

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

FITTING, GREASE (B.76S)

96201-80000

$2.56
