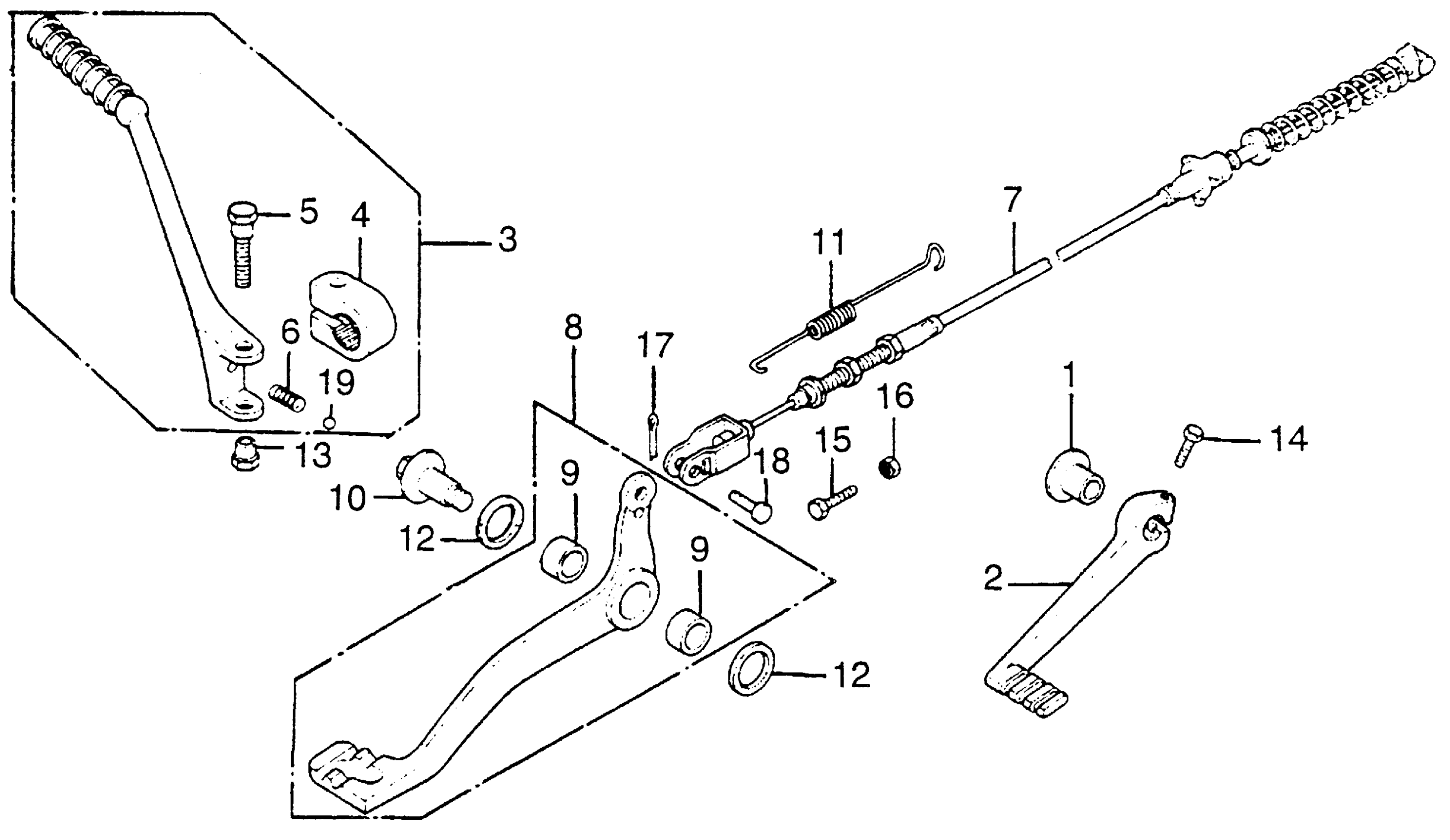

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PROTECTOR, SHIFT SPINDLE (NOT AVAILABLE)

24617-360-000

Unavailable

2

PEDAL, GEARSHIFT

24701-360-000

Unavailable

3

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-400-000

Unavailable

4

JOINT, KICK ARM (NOT AVAILABLE)

28302-400-000

$50.28

5

BOLT, KICK STARTER

28303-360-010

Unavailable

6

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

7

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-400-000

Unavailable

8

PEDAL, BRAKE (NOT AVAILABLE)

46510-400-000

Unavailable

9

BUSHING, PEDAL

46512-360-300

$6.87

10

SHAFT, BRAKE PIVOT (NOT AVAILABLE)

46513-357-010

Unavailable

11

SPRING, RR. BRAKE RETURN (NOT AVAILABLE)

46514-400-000

Unavailable

12

DUST SEAL, BRAKE PEDAL

46516-357-000

Unavailable

13

NUT, KICK ARM (NOT AVAILABLE)

90012-360-000

Unavailable

14

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

14

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

15

BOLT, HEX. (6X25) This part replaces 92023-06025.

92025-06025-0A

$1.49

15

BOLT, HEX. (6X25) This part replaces 92023-06025-0A.

92025-06025-0A

$1.49

15

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

PIN, COTTER (1.6X12)

94201-16120

$1.49

18

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

19

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
