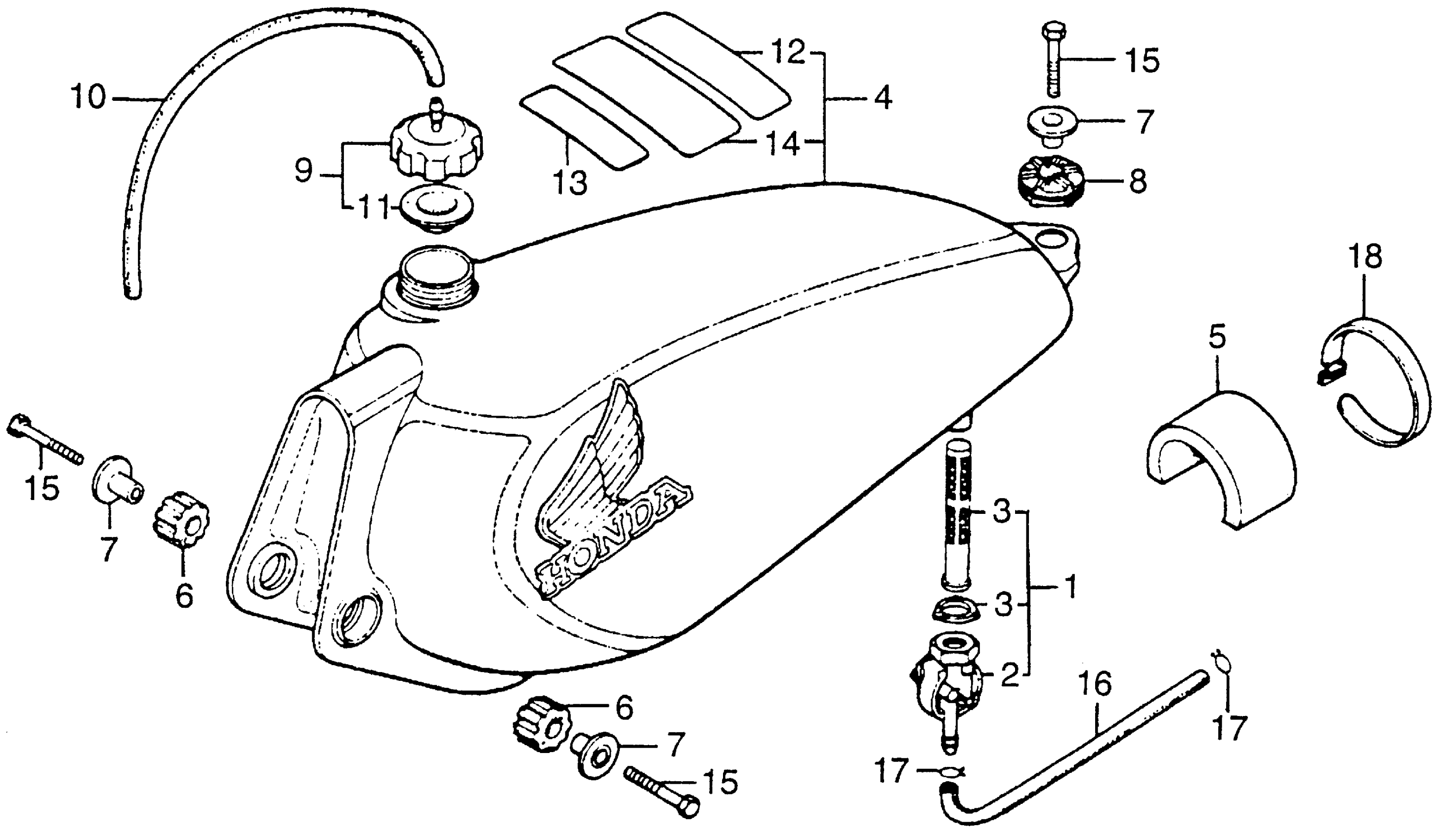

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 FUEL TANK + FUEL VALVE Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-400-005

Unavailable

2

BODY SET, PETCOCK (NOT AVAILABLE)

16951-400-005

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16952-388-005.

16952-388-015

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-388-015

Unavailable

4

TANK ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17500-400-670ZA

Unavailable

5

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE)

17506-400-000

Unavailable

6

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE)

17507-358-000

Unavailable

6

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE) This part replaces 17507-361-000.

17507-358-000

Unavailable

7

COLLAR, FUEL TANK MOUNT (NOT AVAILABLE)

17508-361-000

Unavailable

8

RUBBER, RR. FUEL TANK MOUNT (NOT AVAILABLE)

17509-400-000

Unavailable

9

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17510-355-010

Unavailable

10

TUBE, FUEL CAP BREATHER (NOT AVAILABLE)

17520-357-000

Unavailable

11

GASKET, FUEL CAP This part replaces 17624-355-010.

17624-896-750

Unavailable

11

GASKET, FUEL CAP

17624-896-750

Unavailable

12

MARK A, CAUTION (NOT AVAILABLE)

87208-357-670

Unavailable

13

LABEL, OPERATOR WARNING *NH1* (BLACK)

87510-147-670ZA

$2.92

14

LABEL, CAUTION

87560-357-671

$9.21

15

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

15

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

15

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

16

BULK HOSE, FUEL (5.5X3000) (5.5X180)

95001-55003-60M

$47.32

17

CLIP, TUBE (B10)

95002-02100

$1.90

18

BAND A3, CABLE

95014-61300

$1.97
