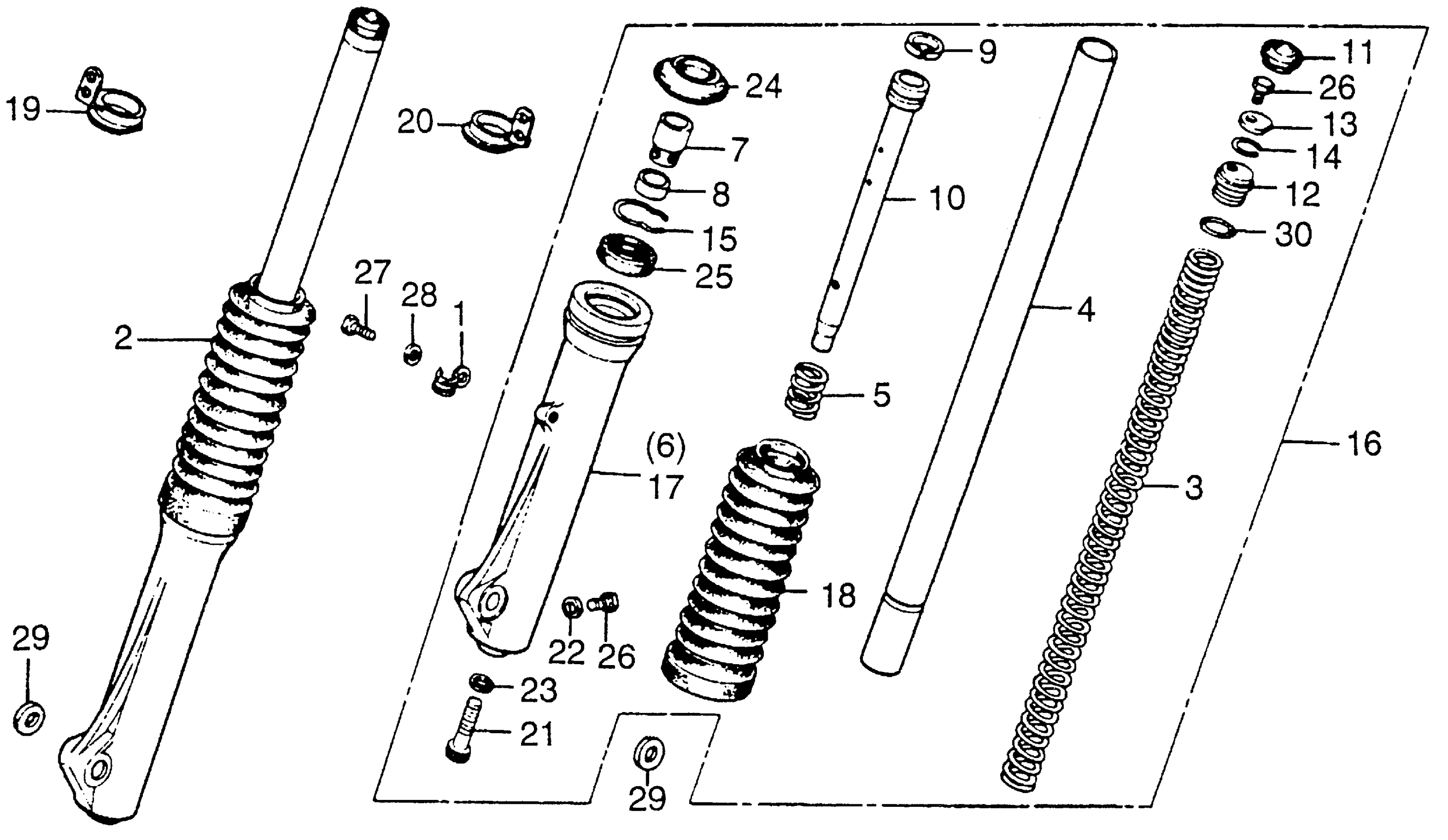

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 FRONT FORK 77-78 Diagram

#

Description
Price

1

CLIP, BRAKE CABLE (NOT AVAILABLE)

45465-400-770

Unavailable

2

FORK ASSY., R. FR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

51400-400-681ZA

Unavailable

2

FORK ASSY., R. FR. *R23* (TAHITIAN RED) (NOT AVAILABLE) This part replaces 54000-400-681.

51400-400-681ZA

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-400-681

Unavailable

4

PIPE, FR. FORK

51410-400-003

Unavailable

5

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

6

CASE, L. FORK (LOWER) *R23* (TAHITIAN RED) (NOT AVAILABLE)

51421-400-771ZB

Unavailable

7

PIECE, OIL LOCKING (NOT AVAILABLE)

51432-400-003

Unavailable

8

VALVE, CHECK (NOT AVAILABLE)

51433-400-003

Unavailable

9

RING, PISTON

51437-400-771

$6.30

10

SEAT (LOWER) (NOT AVAILABLE)

51440-400-681

Unavailable

11

CAP, FORK PIPE (NOT AVAILABLE)

51449-381-013

Unavailable

12

SEAT, SPRING (UPPER) (NOT AVAILABLE)

51454-381-013

Unavailable

13

WASHER, SUPPORT (NOT AVAILABLE)

51455-381-003

Unavailable

14

RING, STOPPER (NOT AVAILABLE)

51456-381-003

Unavailable

15

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

15

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

16

FORK ASSY., L. FR. *R23* (TAHITIAN RED)

51500-400-681ZA

Unavailable

17

CASE, L. FORK (LOWER) *R23* (TAHITIAN RED)

51521-400-771ZB

Unavailable

18

BOOT, FR. FORK *R23* (TAHITIAN RED) (NOT AVAILABLE)

51651-400-771ZA

Unavailable

19

HOLDER, R. BOOT (NOT AVAILABLE)

51652-400-770

Unavailable

20

HOLDER, L. BOOT

51653-400-770

Unavailable

21

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

21

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

22

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

23

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

24

DUST SEAL (35MM) This part replaces 91254-400-771.

91254-434-003

$13.96

24

DUST SEAL (35MM)

91254-434-003

$13.96

25

OIL SEAL (35X48X14)

51495-425-830

Unavailable

25

OIL SEAL (35X48X14) This part replaces 91255-341-305.

51495-425-830

Unavailable

25

OIL SEAL (35X48X14) This part replaces 91255-400-771.

51495-425-830

Unavailable

26

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

26

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

26

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

27

BOLT-WASHER (6X16)

93401-06016-00

$1.55

27

BOLT-WASHER (6X16) This part replaces 93411-06016-00.

93401-06016-00

$1.55

27

BOLT-WASHER (6X16) This part replaces 93481-06016.

93401-06016-00

$1.55

27

BOLT-WASHER (6X16) This part replaces 93481-06016-00.

93401-06016-00

$1.55

29

WASHER, PLAIN (12MM)

94101-12000

$1.49

30

O-RING (23X2.8)

94608-50000

$1.49
