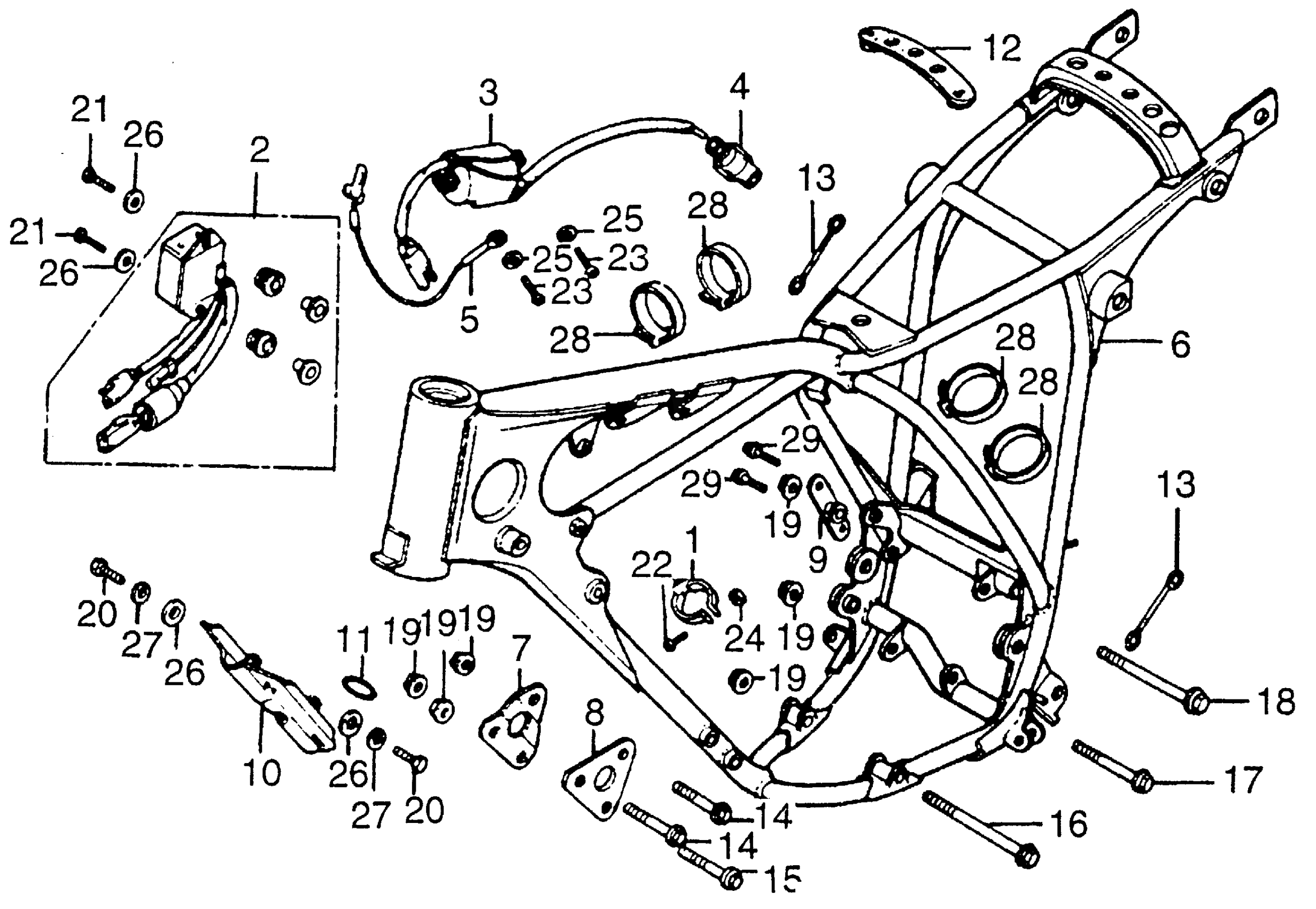

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 FRAME Diagram
#
Description
Price
1
CLAMP, TACHOMETER CABLE This part replaces 22877-360-000.
22878-KB4-700
Unavailable
1
CLAMP, TACHOMETER CABLE
22878-KB4-700
Unavailable
2
MODULE, IGNITION CONTROL ASSY. (CDI)
30400-360-003
Unavailable
3
COIL, C.D.I. (NOT AVAILABLE)
30500-360-003
Unavailable
4
TERMINAL ASSY., COIL (NOT AVAILABLE)
30700-360-701
Unavailable
5
WIRE, GROUND (NOT AVAILABLE)
38105-360-700
Unavailable
6
FRAME *R23* (TAHITIAN RED)
50100-400-000ZA
Unavailable
7
PLATE, R. ENGINE HANGER (NOT AVAILABLE)
50351-360-000
Unavailable
8
PLATE, L. ENGINE HANGER (NOT AVAILABLE)
50352-360-000
Unavailable
9
BRACKET, R. ENGINE (UPPER) (NOT AVAILABLE)
50353-400-000
Unavailable
10
SPLASH GUARD, ENGINE (NOT AVAILABLE) | (Optional).
61141-357-810
Unavailable
11
RING, SPLASH GUARD (NOT AVAILABLE) | (Optional).
61143-357-810
Unavailable
12
RUBBER, SEAT MOUNT (NOT AVAILABLE)
77106-357-000
Unavailable
13
BAND, SIDE COVER (NOT AVAILABLE)
83503-400-000
Unavailable
14
BOLT, HEX. (8X59) (NOT AVAILABLE)
90101-360-000
Unavailable
15
BOLT, HEX. (8MM) (NOT AVAILABLE)
90103-357-000
Unavailable
16
BOLT, HEX. (8X147) (NOT AVAILABLE)
90103-360-000
Unavailable
17
BOLT, HEX. (8X104) This part replaces 90104-360-000.
90104-360-405
Unavailable
18
BOLT, HEX. (8X126) (NOT AVAILABLE)
90104-400-000
Unavailable
