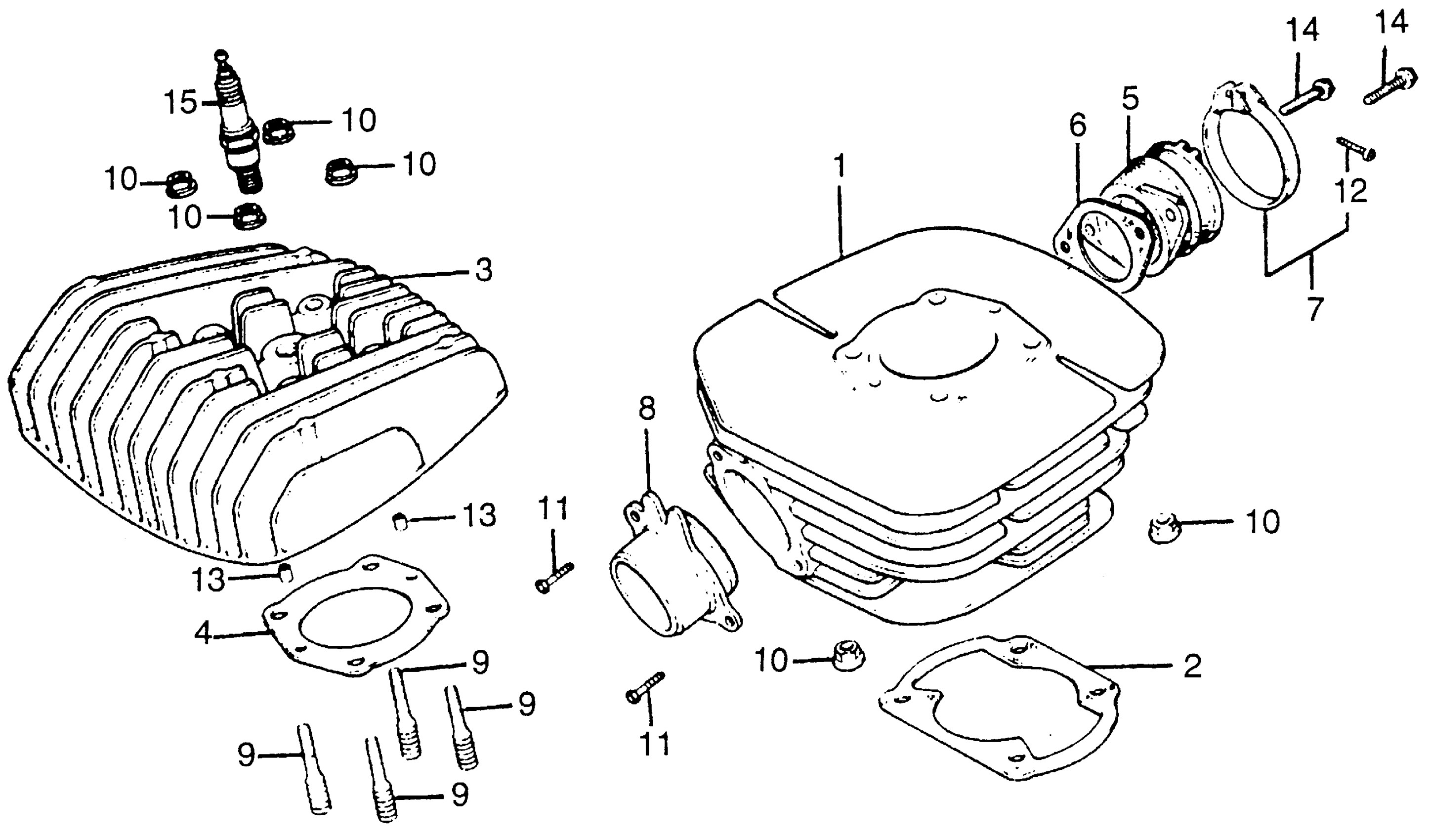

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-400-010

Unavailable

2

GASKET, CYLINDER This part replaces 12191-373-000.

12191-373-306

Unavailable

2

GASKET, CYLINDER

12191-373-306

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-400-000

Unavailable

4

GASKET, CYLINDER HEAD

12251-360-000

Unavailable

4

GASKET, CYLINDER HEAD (NOT AVAILABLE) | (Optional).

12253-360-000

Unavailable

5

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-400-000

Unavailable

6

GASKET, INSULATOR This part replaces 16212-360-000.

16212-360-306

Unavailable

7

BAND, INSULATOR

16223-KS5-000

$14.20

7

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

8

JOINT, EX. PIPE (NOT AVAILABLE)

18351-400-000

Unavailable

9

BOLT, CYLINDER STUD (NOT AVAILABLE)

90034-360-700

Unavailable

10

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

10

NUT, FLANGE (8MM)

94050-08000

$1.49

10

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

11

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

11

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

12

SCREW, PAN (5X16)

93500-05016-0G

$1.49

13

PIN A, DOWEL (6X10)

94301-06100

$2.25

14

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

14

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

15

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59644.

98079-59679

$5.80

15

SPARK PLUG (BR9EG) (NGK)

98079-59679

$5.80
