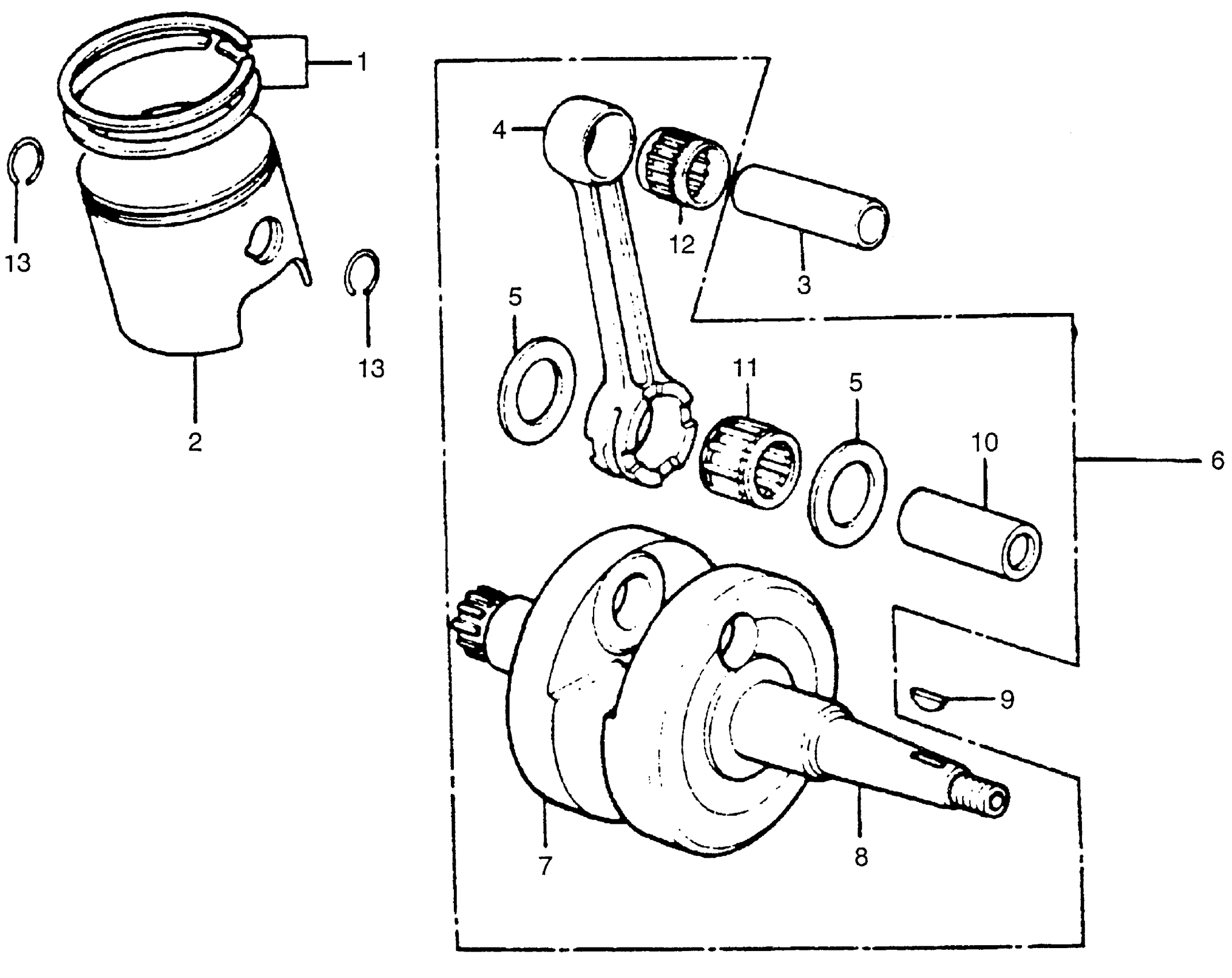

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (NIPPON) (NOT AVAILABLE)

13011-400-003

Unavailable

1

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

13021-400-003

$47.03

1

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

13031-400-003

Unavailable

1

RING SET, PISTON (0.75) (NIPPON) | (Optional).

13041-400-003

$38.13

1

RING SET, PISTON (1.00) (NIPPON) | (Optional).

13051-400-003

Unavailable

2

PISTON (STD)

13101-400-020

Unavailable

2

PISTON (OS 0.25) | (Optional).

13102-400-010

$95.25

2

PISTON (OS 0.50) | (Optional).

13103-400-010

$124.95

2

PISTON (0.75) | (Optional).

13104-400-010

Unavailable

2

PISTON (1.00) | (Optional).

13105-400-010

Unavailable

3

PIN, PISTON This part replaces 13111-360-000.

13111-444-000

Unavailable

3

PIN, PISTON

13111-444-000

Unavailable

4

ROD, CONNECTING (NOT AVAILABLE)

13201-360-310

Unavailable

5

WASHER, CONNECTING ROD

13202-360-300

$15.10

6

CRANKSHAFT (NOT AVAILABLE) This part replaces 13300-400-010.

13300-361-010

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE) This part replaces 13311-360-300.

13311-361-300

Unavailable

8

CRANKSHAFT, L. (NOT AVAILABLE)

13321-400-300

Unavailable

9

KEY, WOODRUFF SPECIAL (25X1)

13331-360-000

$3.47

10

PIN 1, CRANK (2-GRV) (NOT AVAILABLE)

13381-360-310

Unavailable

10

PIN 2, CRANK (ONE GROOVE) (NOT AVAILABLE)

13382-360-300

Unavailable

10

PIN 3, CRANK (NON-GROOVED) (NOT AVAILABLE)

13383-360-300

Unavailable

11

BEARING 3, CONN ROD LARGE END (0.004/-0.006) (KOYO)

91006-360-024

Unavailable

11

BEARING 1, CONNECTING ROD LARGE END (0/-0.002) (KOYO) (NOT AVAILABLE)

91004-360-024

Unavailable

11

BEARING 2, CONNECTING ROD (-0.002/-0.004) (KOYO) (NOT AVAILABLE)

91005-360-024

Unavailable

12

BEARING, CONNECTING ROD SMALL END (0 -0.002) (KOYO) This part replaces 91007-360-004.

91007-444-004

Unavailable

12

BEARING, CONNECTING ROD SMALL END (0 -0.002) (KOYO)

91007-444-004

Unavailable

12

BEARING, CONNECTING ROD SMALL END (-0.002/-0.004) (KOYO) This part replaces 91008-360-004.

91008-444-004

Unavailable

12

BEARING, CONNECTING ROD SMALL END (-0.002/-0.004) (KOYO)

91008-444-004

Unavailable

12

BEARING, CONNECTING ROD SMALL END (-0.004/-0.006) (KOYO) (NOT AVAILABLE) This part replaces 91009-360-004.

91009-444-004

Unavailable

12

BEARING, CONNECTING ROD SMALL END (-0.004/-0.006) (KOYO) (NOT AVAILABLE)

91009-444-004

Unavailable

13

CLIP, PISTON PIN (14MM)

94601-14000

$1.49
