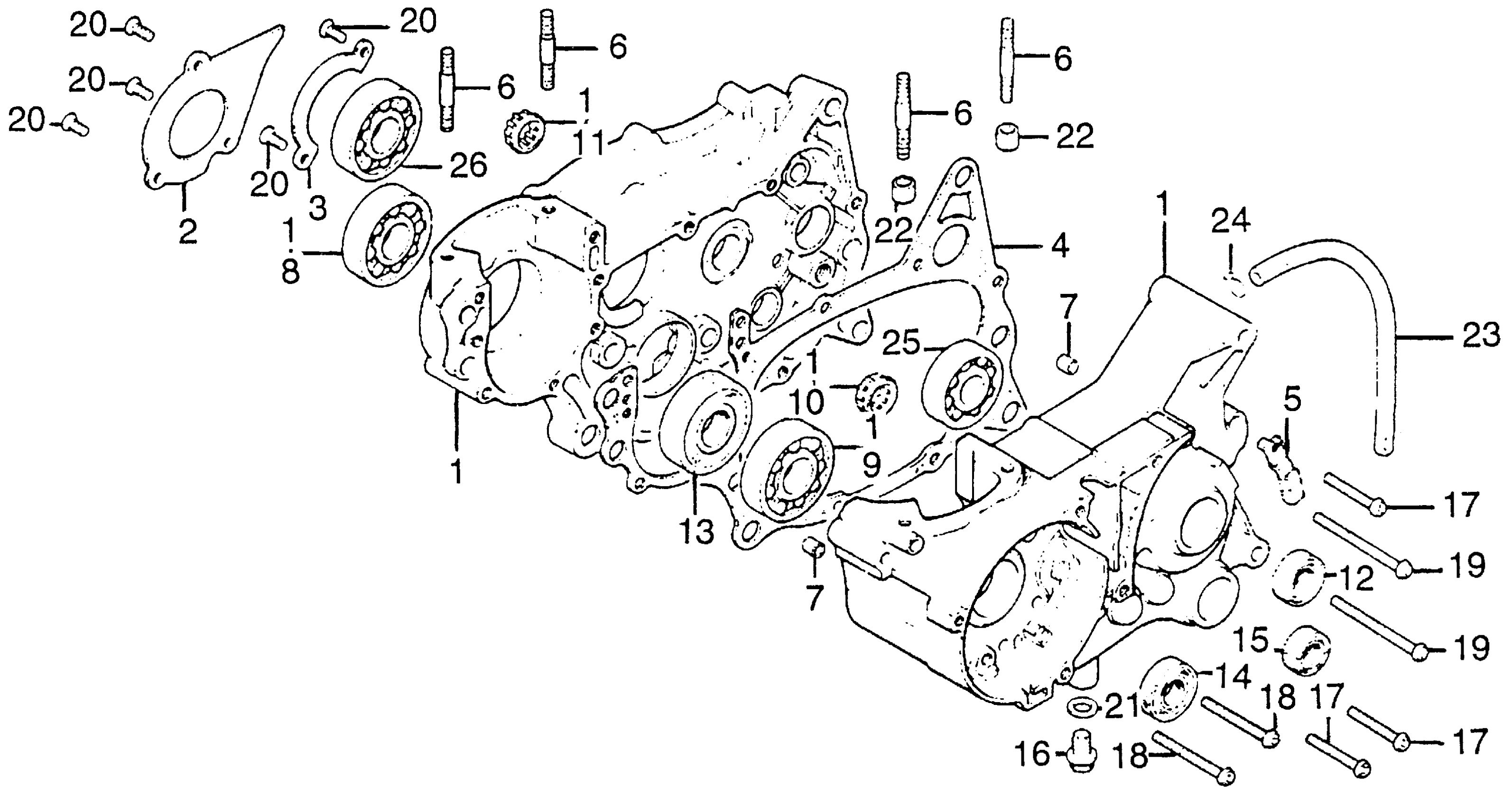

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-400-000

Unavailable

2

PLATE A, BEARING SET (NOT AVAILABLE)

11104-360-000

Unavailable

3

PLATE B, BEARING SETTING (NOT AVAILABLE)

11105-360-000

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-373-000.

11191-373-306

$12.54

5

CLAMP, TUBE (NOT AVAILABLE)

11205-360-000

Unavailable

6

BOLT, CYLINDER STUD (NOT AVAILABLE)

90041-369-300

Unavailable

7

PIN, DOWEL (10X12)

90701-360-000

Unavailable

8

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

8

BEARING, RADIAL BALL (63/22) This part replaces 91001-360-004.

91002-KY4-901

$24.38

8

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

9

BEARING, BALL (6305) (NACHI) This part replaces 91002-360-004.

91002-360-005

Unavailable

9

BEARING, BALL (6305) (NACHI)

91002-360-005

Unavailable

10

BEARING, NEEDLE (15X22) This part replaces 91014-360-006.

91106-KC6-003

Unavailable

10

BEARING, NEEDLE (15X22)

91106-KC6-003

Unavailable

11

BEARING, NEEDLE (15X23X12) (TOMUSON)

91016-360-006

Unavailable

12

OIL SEAL (20X32X6) (NOK)

91201-360-005

$4.87

12

OIL SEAL (20X32X6) (NOK) This part replaces 91201-360-013.

91201-360-005

$4.87

13

OIL SEAL (28X56X9) This part replaces 91203-360-000.

91203-360-003

Unavailable

13

OIL SEAL (28X56X9)

91203-360-003

Unavailable

14

OIL SEAL (25X45X7) This part replaces 91204-360-000.

91204-360-003

Unavailable

14

OIL SEAL (25X45X7)

91204-360-003

Unavailable

15

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

16

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

17

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

17

SCREW, PAN (6X45)

93500-06045-0A

$1.49

18

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

18

SCREW, PAN (6X65)

93500-06065-0A

$1.53

19

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

19

SCREW, PAN (6X80)

93500-06080-0A

$1.49

20

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

20

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

21

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

22

PIN A, DOWEL (10X14)

94301-10140

$2.28

23

BULK HOSE, FUEL (5.5X3000) (5.5X260)

95001-55003-60M

$47.32

24

CLIP, TUBE (B10)

95002-02100

$1.90

25

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

25

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

26

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040.

96120-63040-10

$22.40

26

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40
