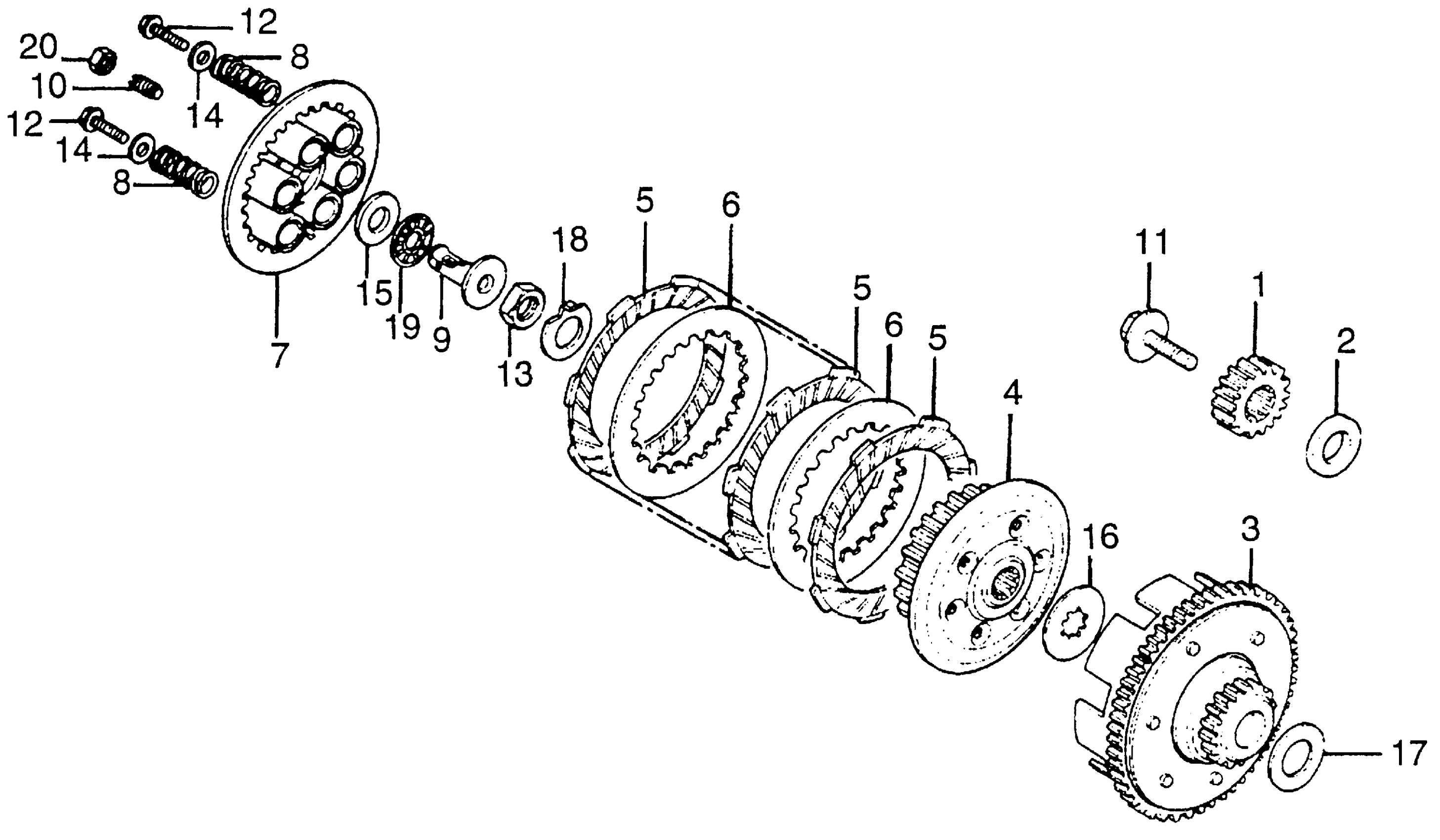

Honda CR125MA (78) ELSINORE, JPN, VIN# CR125M-3200025 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE (16T) (NOT AVAILABLE)
13615-360-000
Unavailable
2
COLLAR, PRIMARY DRIVE GEAR
13616-360-000
Unavailable
3
CLUTCH (OUTER) (NOT AVAILABLE)
22100-360-000
Unavailable
4
CLUTCH, CENTER (NOT AVAILABLE)
22120-360-700
Unavailable
5
DISK, CLUTCH FRICTION This part replaces 22201-360-000.
22201-360-306
Unavailable
5
DISK, CLUTCH FRICTION
22201-360-306
Unavailable
6
PLATE B, CLUTCH
22321-360-000
Unavailable
7
PLATE, CLUTCH PRESSURE
22351-360-000
Unavailable
8
SPRING, CLUTCH
22401-360-700
Unavailable
9
ROD, LIFTER (NOT AVAILABLE)
22851-361-000
Unavailable
10
SCREW, CLUTCH ADJUSTING (NOT AVAILABLE)
22853-360-000
Unavailable
13
NUT (16MM) (NOT AVAILABLE)
90233-360-000
Unavailable
14
WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)
90417-001-000
Unavailable
15
WASHER, THRUST (12.5MM) (NOT AVAILABLE)
90459-360-700
Unavailable
16
WASHER, SPLINE (NOT AVAILABLE)
90463-360-700
Unavailable
17
WASHER, THRUST (20MM) (NOT AVAILABLE)
90501-360-000
Unavailable
18
WASHER, LOCK (16MM) (NOT AVAILABLE)
90505-360-000
Unavailable
19
BEARING, THRUST (1226) (NOT AVAILABLE)
91015-360-000
Unavailable
