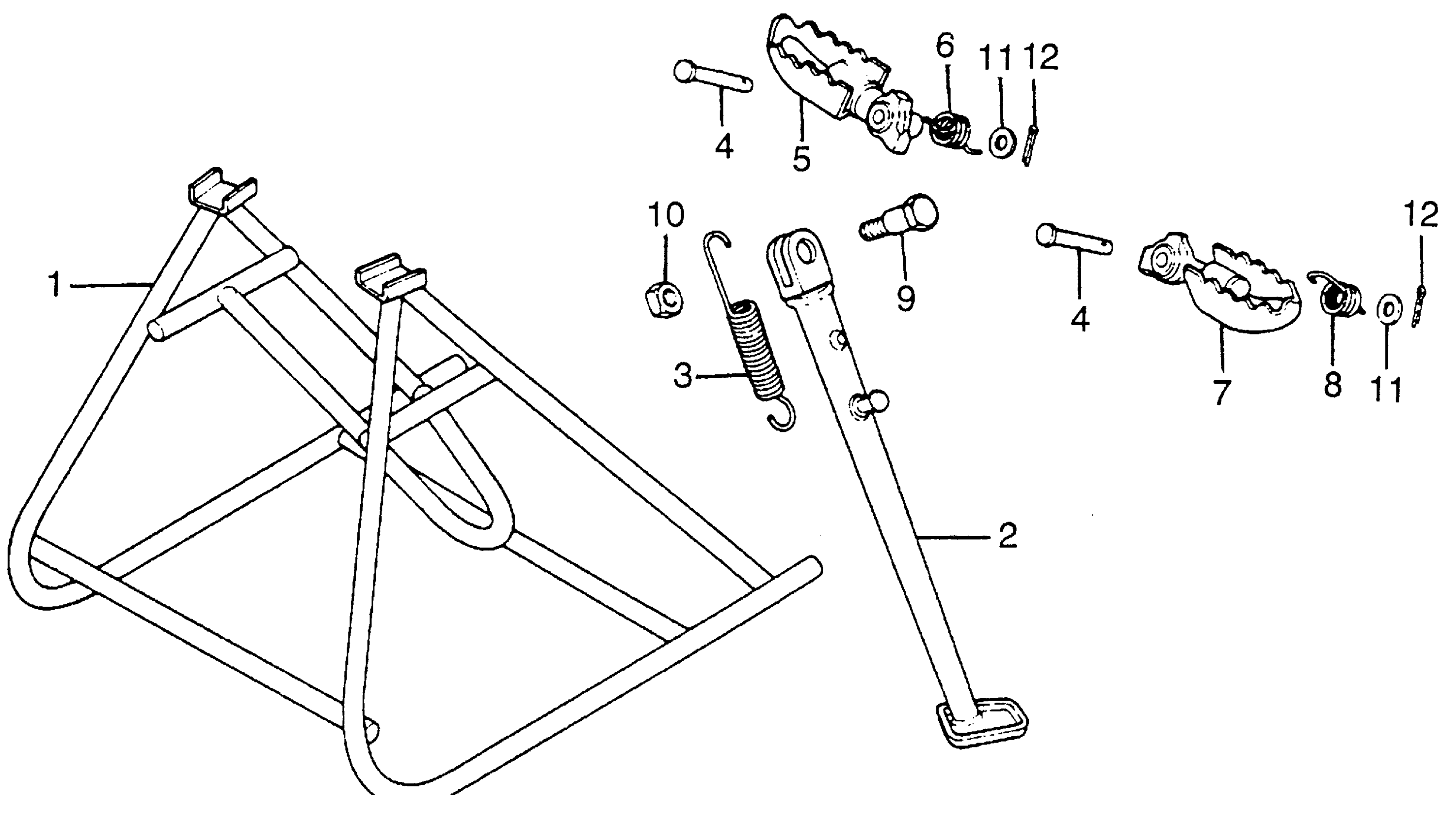

Honda CR125MA (77) ELSINORE, JPN, VIN# CR125M-3100001 TO CR125M-3108720 STEP + STAND Diagram

STAND, MAIN (NOT AVAILABLE) | (Optional).

50500-400-810

Unavailable

BAR, SIDE STAND (NOT AVAILABLE)

50530-381-000

Unavailable

SPRING, SIDE STAND

50542-310-010

Unavailable

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

STEP, R.

50616-357-000

Unavailable

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

STEP, L. (NOT AVAILABLE)

50642-357-000

Unavailable

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

NUT, HEX. (10MM)

94030-10000

$1.49

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49
