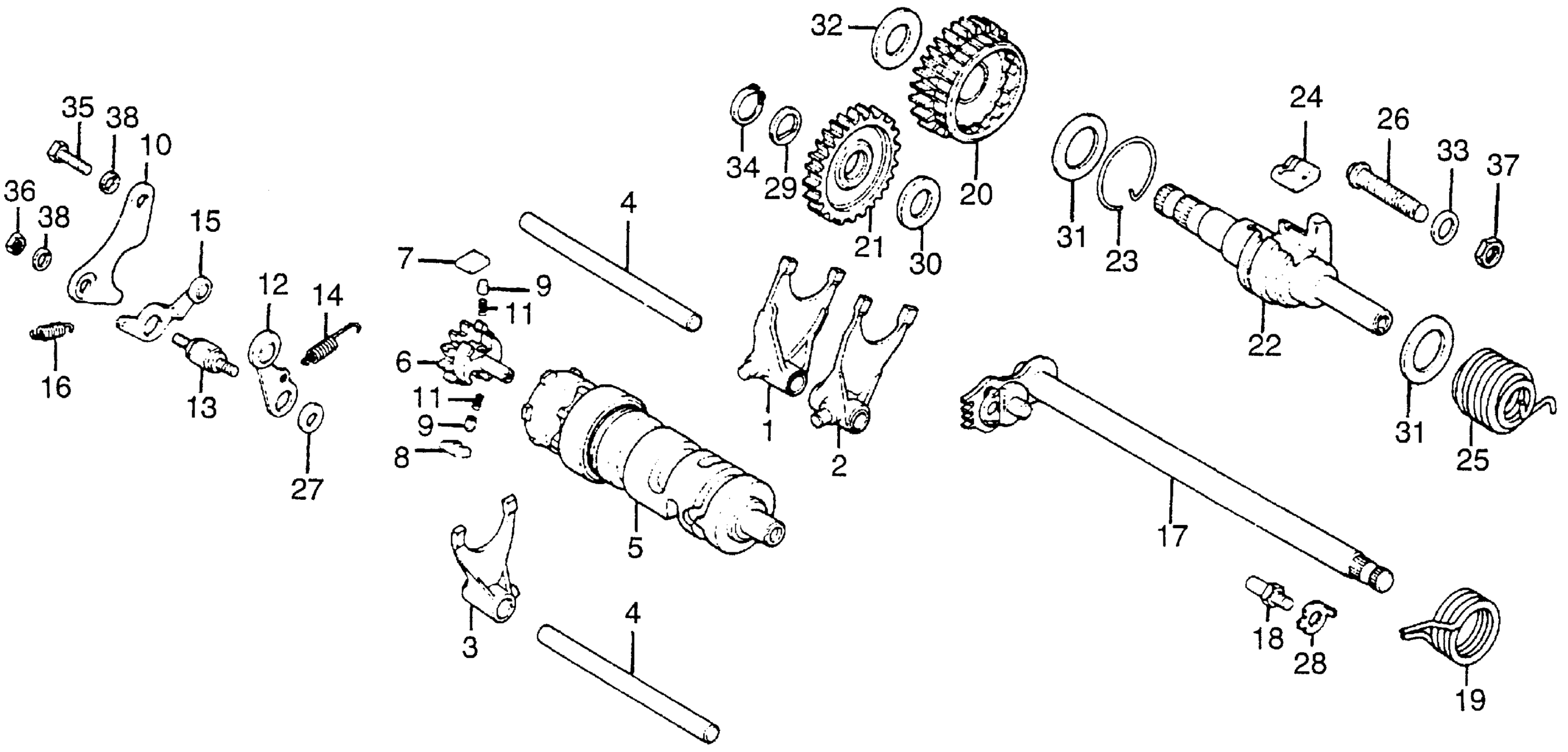

Honda CR125MA (77) ELSINORE, JPN, VIN# CR125M-3100001 TO CR125M-3108720 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-360-000

Unavailable

2

FORK, L. GEARSHIFT

24221-360-000

Unavailable

3

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24231-360-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24265-360-000

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24310-400-000

Unavailable

6

SHIFTER, DRUM (NOT AVAILABLE)

24321-KA3-000

Unavailable

6

SHIFTER, DRUM (NOT AVAILABLE) This part replaces 24321-360-700.

24321-KA3-000

Unavailable

7

PAWL A, RATCHET (NOT AVAILABLE)

24324-360-000

Unavailable

8

PAWL B, RATCHET (NOT AVAILABLE)

24325-360-000

Unavailable

9

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

9

PLUNGER, PAWL

24326-360-010

$5.19

10

PLATE, GUIDE

24328-360-010

Unavailable

11

SPRING, PAWL PLUNGER

24329-360-000

$2.90

12

ARM, DRUM STOPPER (NOT AVAILABLE)

24430-360-000

Unavailable

13

COLLAR, DRUM STOPPER ARM (NOT AVAILABLE)

24434-360-000

Unavailable

14

SPRING, SHIFT DRUM STOPPER ARM (NOT AVAILABLE)

24435-360-000

Unavailable

15

ARM, NEUTRAL STOPPER (NOT AVAILABLE)

24440-360-000

Unavailable

16

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24443-360-000

Unavailable

17

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-360-010

Unavailable

18

PIN, RETURN SPRING (NOT AVAILABLE)

24615-360-000

Unavailable

19

SPRING, GEARSHIFT (NOT AVAILABLE)

24651-360-000

Unavailable

20

PINION, KICK STARTER

28210-360-000

Unavailable

21

GEAR, STARTER IDLE (NOT AVAILABLE)

28230-360-000

$71.18

22

SHAFT, STARTER | Use up to Engine SN 3104242

28251-360-700

Unavailable

22

SHAFT, STARTER (NOT AVAILABLE) | Use from Engine SN 3104243

28251-360-701

Unavailable

23

SPRING, STARTER PAWL (NOT AVAILABLE)

28253-360-000

Unavailable

23

SPRING, STARTER PAWL (NOT AVAILABLE) | Use from Engine SN 3104243 This part replaces 28253-360-010.

28253-360-000

Unavailable

24

PAWL, KICK STARTER

28255-357-010

Unavailable

25

SPRING, KICK STARTER RETURN (NOT AVAILABLE)

28261-360-000

Unavailable

26

PIN, STARTER RETURN SPRING (NOT AVAILABLE)

28262-360-700

Unavailable

27

WASHER, DRUM STOPPER

90417-360-000

$1.74

28

WASHER, LOCK (8MM) (NOT AVAILABLE)

90432-360-000

Unavailable

29

WASHER, THRUST (16MM) (NOT AVAILABLE)

90433-360-000

Unavailable

30

WASHER, THRUST (15MM)

90451-166-000

Unavailable

30

WASHER, THRUST (15MM) This part replaces 90454-360-000.

90451-166-000

Unavailable

31

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

31

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

32

WASHER, THRUST (18MM) (NOT AVAILABLE)

90503-360-000

Unavailable

33

WASHER (10MM) (NOT AVAILABLE)

90504-360-000

Unavailable

34

SET-RING (15MM) (NOT AVAILABLE)

90603-360-000

Unavailable

35

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

35

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

36

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM)

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

37

NUT, HEX. (10MM) (SOURCE: VINTAGE PARTS INC.)

94002-10090-0S

Unavailable

38

WASHER, SPRING (6MM)

94111-06000

$1.49
