- CR125MA (77) ELSINORE, JPN, VIN# CR125M-3100001 TO CR125M-3108720
REAR SHOCK ABSORBER 76-77

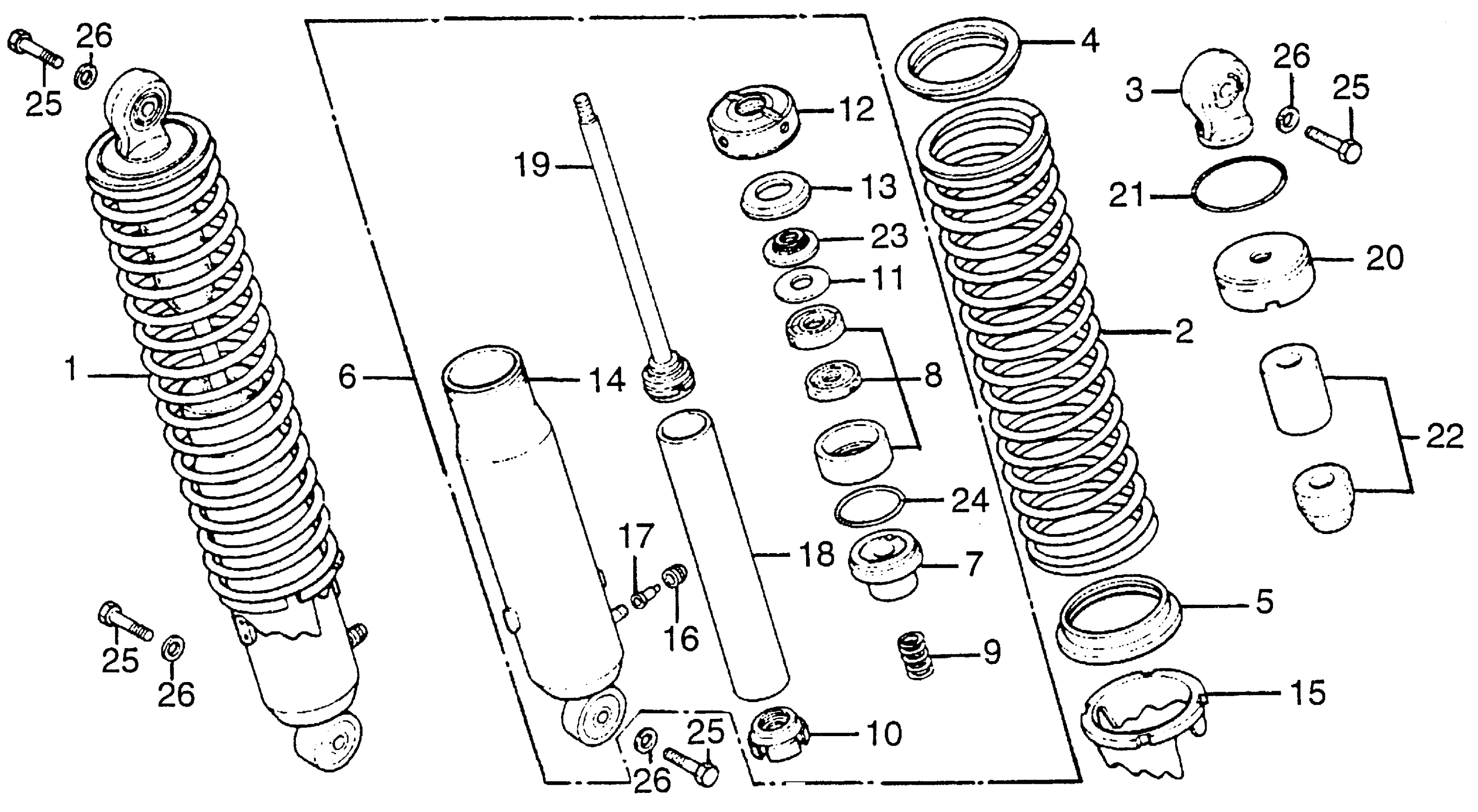

Honda CR125MA (77) ELSINORE, JPN, VIN# CR125M-3100001 TO CR125M-3108720 REAR SHOCK ABSORBER 76-77 Diagram
#
Description
Price
1
SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)
52400-400-003
Unavailable
2
SPRING, RR. SHOCK ABSORBER
52401-400-003
Unavailable
3
JOINT (UPPER) (NOT AVAILABLE)
52403-360-700
Unavailable
4
GUIDE, SPRING (UPPER) (NOT AVAILABLE)
52406-381-771
Unavailable
5
GUIDE, SPRING (LOWER) (NOT AVAILABLE)
52407-381-771
Unavailable
6
DAMPER, RR. (NOT AVAILABLE)
52410-400-003
Unavailable
7
GUIDE, ROD
52411-381-771
Unavailable
8
CASE, SEAL (NOT AVAILABLE)
52412-381-771
Unavailable
9
SPRING, REBOUND STOP
52414-381-771
Unavailable
10
HOLDER, VALVE (LOWER)
52415-400-003
Unavailable
11
GUIDE, SEAL
52416-381-771
Unavailable
12
SEAT, STOPPER (NOT AVAILABLE)
52418-381-771
Unavailable
13
PLATE (NOT AVAILABLE)
52419-381-771
Unavailable
14
CASE, RR. SHOCK ABSORBER
52420-400-003
Unavailable
15
ADJUSTER, SPRING (NOT AVAILABLE)
52422-381-771
Unavailable
17
CORE, VALVE
52426-381-771
Unavailable
18
CYLINDER
52430-381-771
Unavailable
19
ROD, RR.
52440-400-003
Unavailable
20
SEAT, SPRING (NOT AVAILABLE)
52459-381-771
Unavailable
21
RING, STOPPER (NOT AVAILABLE)
52460-381-771
Unavailable
22
RUBBER ASSY., STOPPER (NOT AVAILABLE)
52517-400-003
Unavailable
23
DUST SEAL (NOT AVAILABLE)
91256-381-771
Unavailable
24
O-RING
91317-381-771
Unavailable
25
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10032.
92101-10032-0A
Unavailable
25
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10032-0A.
92101-10032-0A
Unavailable
25
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92025-10032-0A.
92101-10032-0A
Unavailable
25
BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.)
92101-10032-0A
Unavailable
