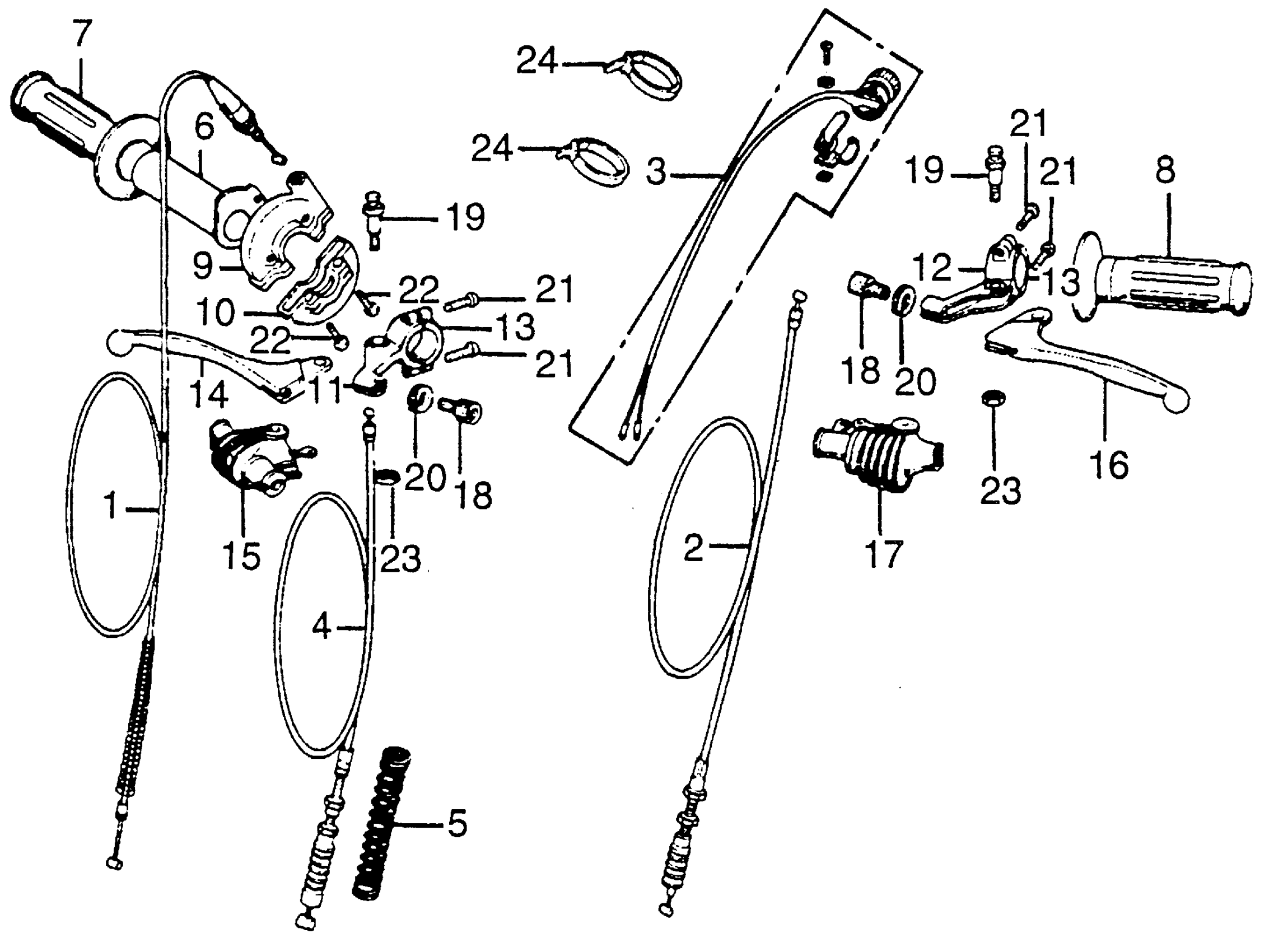

Honda CR125MA (76) ELSINORE, JPN, VIN# CR125M-3000006 TO CR125M-3011345 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-400-000

Unavailable

2

CABLE, CLUTCH

22870-KB4-000

$34.75

2

CABLE, CLUTCH This part replaces 22870-356-000.

22870-KB4-000

$34.75

2

CABLE, CLUTCH This part replaces 22870-400-000.

22870-KB4-000

$34.75

3

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-381-771

Unavailable

4

CABLE, FR. BRAKE

45450-KE4-P00

Unavailable

4

CABLE, FR. BRAKE This part replaces 45450-361-780.

45450-KE4-P00

Unavailable

4

CABLE, FR. BRAKE This part replaces 45450-401-650.

45450-KE4-P00

Unavailable

4

CABLE, FR. BRAKE This part replaces 45450-436-770.

45450-KE4-P00

Unavailable

5

SPRING, FR. BRAKE CABLE

45454-360-010

$4.77

6

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-357-010

Unavailable

7

GRIP, R. HANDLEBAR

53165-116-670

$11.18

8

GRIP, L. HANDLEBAR

53166-116-670

$11.20

9

HOUSING A, GRIP (NOT AVAILABLE)

53167-381-000

Unavailable

10

HOUSING B, GRIP (NOT AVAILABLE)

53168-381-000

Unavailable

11

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-376-000

Unavailable

12

BRACKET, L. HANDLEBAR (NOT AVAILABLE)

53172-376-000

Unavailable

13

HOLDER, LEVER BRACKET This part replaces 53173-KN5-670.

53173-376-000

$10.04

13

HOLDER, LEVER BRACKET

53173-376-000

$10.04

14

LEVER, R. HANDLEBAR This part replaces 53175-360-700.

53175-KY0-980

$28.49

14

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$28.49

15

COVER, R. CONTROL LEVER

53176-329-000

$11.43

16

LEVER, L. HANDLEBAR This part replaces 53178-360-700.

53178-401-651

Unavailable

16

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

16

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

16

LEVER, L. HANDLEBAR This part replaces 53190-401-681.

53178-401-651

Unavailable

16

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

17

COVER, L. CONTROL LEVER

53179-329-000

$13.87

18

BOLT, CABLE ADJUSTING

53192-268-000

$6.23

19

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.41

20

NUT, FIXING

90321-315-670

$6.97

20

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.97

21

SCREW, PAN (5X16)

93500-05016-0A

$0.84

22

SCREW, PAN (5X20)

93500-05020-0A

$0.76

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM)

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.21

24

BAND B1, CABLE

32161-404-000

$2.16

24

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.16
