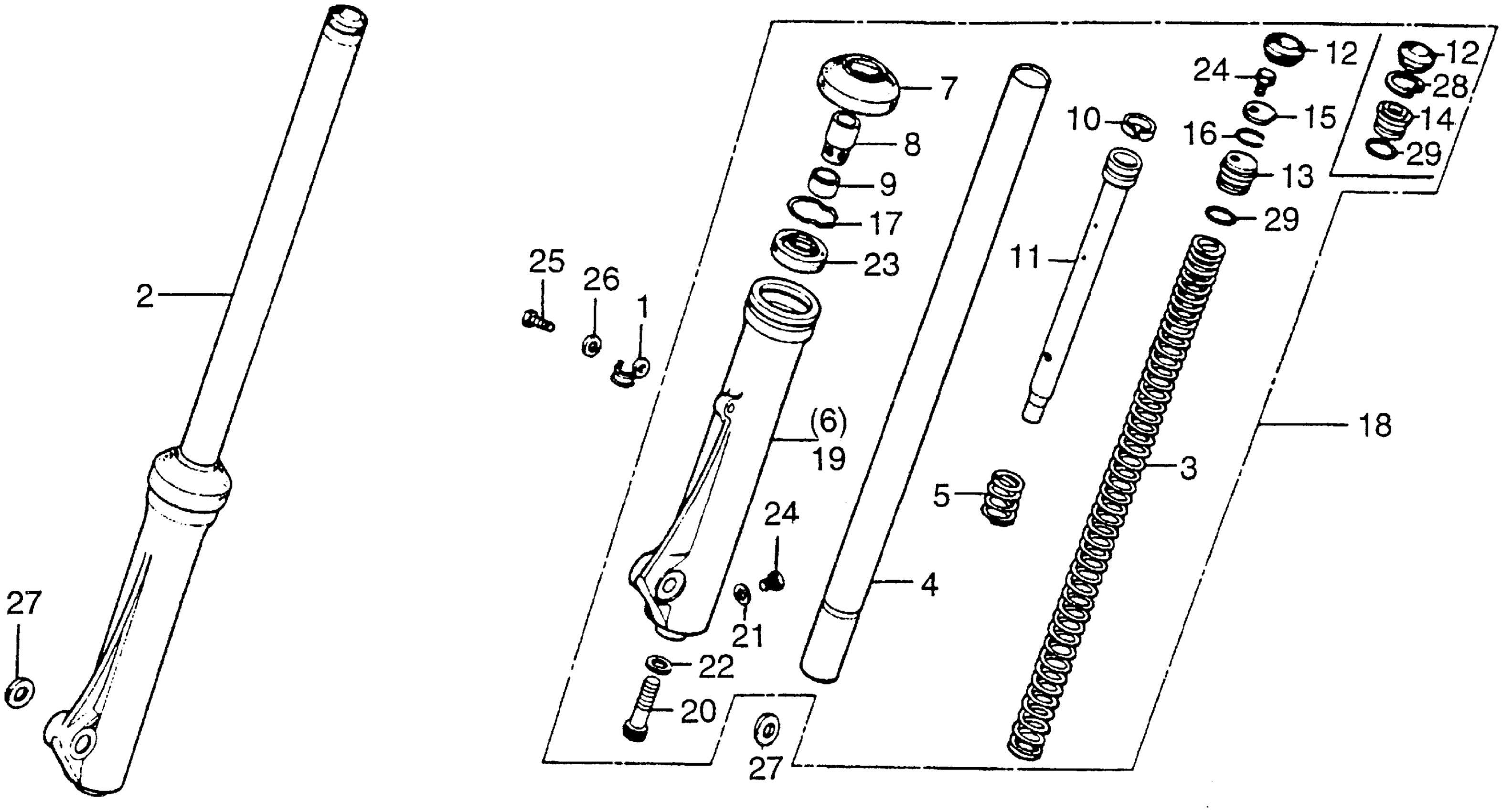

Honda CR125MA (76) ELSINORE, JPN, VIN# CR125M-3000006 TO CR125M-3011345 FRONT FORK 76 Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-329-010

Unavailable

2

FORK ASSY., R. FR. (NOT AVAILABLE) | Use up to Frame SN 3008743 This part replaces 51400-400-003.

51400-400-013

Unavailable

2

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-400-013

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-400-003

Unavailable

4

PIPE, FR. FORK

51410-400-003

Unavailable

5

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

6

CASE, R. FORK (LOWER)

51421-400-003

Unavailable

7

DUST SEAL, FR. FORK This part replaces 51425-340-000.

91254-435-003

$15.40

7

DUST SEAL, FR. FORK

91254-435-003

$15.40

8

PIECE, OIL LOCKING (NOT AVAILABLE)

51432-400-003

Unavailable

9

VALVE, CHECK (NOT AVAILABLE)

51433-400-003

Unavailable

10

RING, PISTON

51437-329-010

$7.14

11

SEAT (LOWER) (NOT AVAILABLE)

51440-400-003

Unavailable

12

CAP, FORK PIPE (NOT AVAILABLE) | Use up to Frame SN 3008743 This part replaces 51449-381-003.

51449-381-013

Unavailable

12

CAP, FORK PIPE (NOT AVAILABLE)

51449-381-013

Unavailable

13

SEAT, SPRING (UPPER) (NOT AVAILABLE) | Use from Frame SN 3008744

51454-381-013

Unavailable

14

SEAT SET, SPRING (NOT AVAILABLE) | Use up to Frame SN 3008743 This part replaces 51454-381-003.

51460-381-305

Unavailable

14

SEAT SET, SPRING (NOT AVAILABLE) | Use up to Frame SN 3008743 This part replaces 51454-400-003.

51460-381-305

Unavailable

14

SEAT SET, SPRING (NOT AVAILABLE) | Use up to Frame SN 3008743

51460-381-305

Unavailable

15

WASHER, SUPPORT (NOT AVAILABLE) | Use from Frame SN 3008744

51455-381-003

Unavailable

16

RING, STOPPER (NOT AVAILABLE) | Use from Frame SN 3008744

51456-381-003

Unavailable

17

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

17

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

18

FORK ASSY., L. FR. | Use up to Frame SN 3008743 This part replaces 51500-400-003.

51500-400-013

Unavailable

18

FORK ASSY., L. FR. | Use up to Frame SN 3008743

51500-400-013

Unavailable

18

FORK ASSY., L. FR.

51500-400-013

Unavailable

19

CASE, L. FORK (LOWER) (NOT AVAILABLE)

51521-400-003

Unavailable

20

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

20

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

21

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

24

BOLT, HEX. (6X8) | Use up to Frame SN 3008743 This part replaces 92000-06008.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) | Use from Frame SN 3008744 This part replaces 92000-06008.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) | Use up to Frame SN 3008743 This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) | Use from Frame SN 3008744 This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) | Use up to Frame SN 3008743

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) | Use from Frame SN 3008744

92101-06008-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (12MM)

94101-12000

$1.49

28

CIRCLIP (INNER) (30MM) (SOURCE: VINTAGE PARTS INC.) | Use up to Frame SN 3008743

94521-30000

Unavailable

29

O-RING (23X2.8)

94608-50000

$1.49
