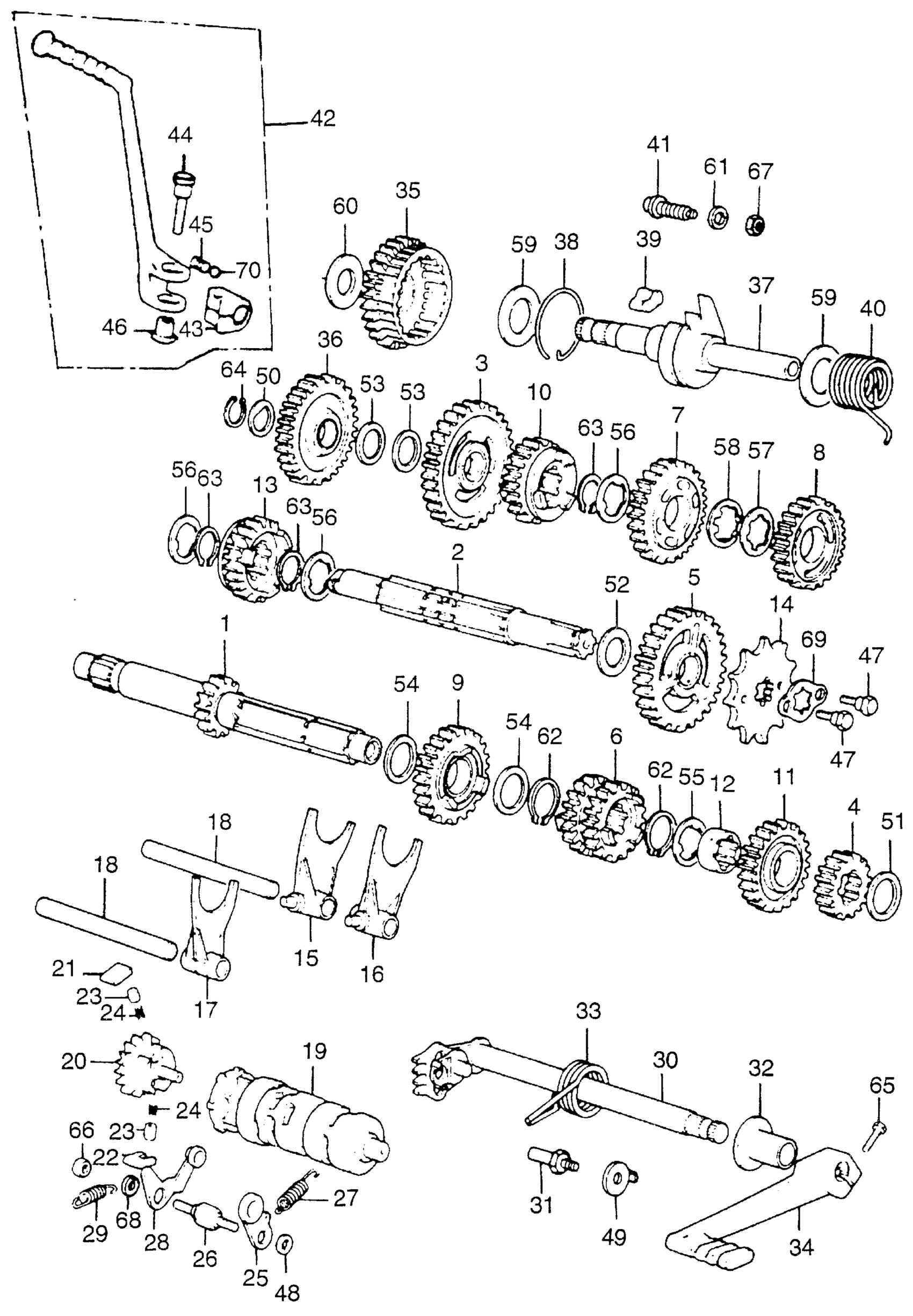

Honda CR125M1A MOTORCYCLE, JPN, VIN# CR125M-2000006 TO CR125M-2018555 TRANSMISSION + KICK SPINDLE Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23210-360-700

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-360-700

Unavailable

3

GEAR, COUNTERSHAFT LOW (32T) (NOT AVAILABLE)

23410-360-000

Unavailable

4

GEAR, MAINSHAFT SECOND (18T) (NOT AVAILABLE)

23421-360-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (29T)

23431-360-000

Unavailable

6

GEAR, MAINSHAFT THIRD (22T)

23441-360-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (26T)

23451-360-000

Unavailable

8

GEAR, COUNTERSHAFT FOURTH (24T)

23461-360-000

Unavailable

9

GEAR, MAINSHAFT FIFTH (24T)

23470-360-000

Unavailable

10

GEAR, COUNTERSHAFT FIFTH (23T) (NOT AVAILABLE) This part replaces 23481-360-000.

23481-360-700

Unavailable

10

GEAR, COUNTERSHAFT FIFTH (23T) (NOT AVAILABLE)

23481-360-700

Unavailable

11

GEAR, MAINSHAFT SIXTH (25T)

23491-360-000

Unavailable

12

COLLAR, MAINSHAFT SIXTH SPLINE (NOT AVAILABLE)

23492-360-000

Unavailable

13

GEAR, COUNTERSHAFT SIXTH (22T) (NOT AVAILABLE) This part replaces 23501-360-000.

23501-360-700

Unavailable

13

GEAR, COUNTERSHAFT SIXTH (22T) (NOT AVAILABLE)

23501-360-700

Unavailable

14

SPROCKET, DRIVE

23801-121-000

Unavailable

14

SPROCKET, DRIVE This part replaces 23803-360-810.

23801-121-000

Unavailable

14

SPROCKET, DRIVE (15T) This part replaces 23804-360-000.

23801-230-000

Unavailable

15

FORK, R. GEARSHIFT

24211-360-000

Unavailable

16

FORK, L. GEARSHIFT

24221-360-000

Unavailable

17

FORK, CENTER GEARSHIFT

24231-360-000

Unavailable

18

SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24265-360-000

Unavailable

19

DRUM, GEARSHIFT This part replaces 24310-360-000.

24310-360-700

Unavailable

19

DRUM, GEARSHIFT

24310-360-700

Unavailable

20

SHIFTER, DRUM (NOT AVAILABLE) This part replaces 24321-360-700.

24321-KA3-000

Unavailable

21

PAWL A, RATCHET (NOT AVAILABLE)

24324-360-000

Unavailable

22

PAWL B, RATCHET (NOT AVAILABLE)

24325-360-000

Unavailable

23

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

23

PLUNGER, PAWL

24326-360-010

$5.19

24

SPRING, PAWL PLUNGER

24329-360-000

$2.90

25

ARM, DRUM STOPPER (NOT AVAILABLE)

24430-360-000

Unavailable

26

COLLAR, DRUM STOPPER ARM (NOT AVAILABLE)

24434-360-000

Unavailable

27

SPRING, SHIFT DRUM STOPPER ARM (NOT AVAILABLE)

24435-360-000

Unavailable

28

ARM, NEUTRAL STOPPER (NOT AVAILABLE)

24440-360-000

Unavailable

29

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24443-360-000

Unavailable

30

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 1003944 This part replaces 24610-360-000.

24610-360-010

Unavailable

30

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-360-010

Unavailable

31

PIN, RETURN SPRING (NOT AVAILABLE)

24615-360-000

Unavailable

32

PROTECTOR, SHIFT SPINDLE (NOT AVAILABLE)

24617-360-000

Unavailable

33

SPRING, GEARSHIFT (NOT AVAILABLE)

24651-360-000

Unavailable

34

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-360-000

Unavailable

35

PINION, KICK STARTER

28210-360-000

Unavailable

36

GEAR, STARTER IDLE (NOT AVAILABLE)

28230-360-000

$71.18

37

SHAFT, STARTER This part replaces 28251-360-000.

28251-360-700

Unavailable

37

SHAFT, STARTER

28251-360-700

Unavailable

38

SPRING, STARTER PAWL (NOT AVAILABLE)

28253-360-000

Unavailable

39

PAWL, KICK STARTER (NOT AVAILABLE)

28255-357-010

Unavailable

40

SPRING, KICK STARTER RETURN (NOT AVAILABLE)

28261-360-000

Unavailable

41

PIN, STARTER RETURN SPRING (NOT AVAILABLE) This part replaces 28262-360-000.

28262-360-700

Unavailable

41

PIN, STARTER RETURN SPRING (NOT AVAILABLE)

28262-360-700

Unavailable

42

ARM ASSY., KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1002484 This part replaces 28300-360-000.

28300-361-000

Unavailable

42

ARM ASSY., KICK STARTER (NOT AVAILABLE) This part replaces 28300-360-010.

28300-361-000

Unavailable

42

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-361-000

Unavailable

43

JOINT, KICK ARM

28302-361-000

Unavailable

44

BOLT, KICK STARTER

28303-360-010

Unavailable

45

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

46

NUT, KICK ARM (NOT AVAILABLE) | Use from Engine SN 1002485

90012-360-000

Unavailable

47

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

48

WASHER, DRUM STOPPER

90417-360-000

$1.74

49

WASHER, LOCK (8MM) (NOT AVAILABLE)

90432-360-000

Unavailable

50

WASHER, THRUST (16MM) (NOT AVAILABLE)

90433-360-000

Unavailable

51

WASHER, THRUST (15MM)

90451-166-000

Unavailable

51

WASHER, THRUST (15MM) This part replaces 90451-360-000.

90451-166-000

Unavailable

51

WASHER, THRUST (15MM) This part replaces 90454-360-000.

90451-166-000

Unavailable

52

WASHER, THRUST (20MM)

90453-360-000

$3.30

53

WASHER, THRUST (15MM)

90451-166-000

Unavailable

53

WASHER, THRUST (15MM) This part replaces 90454-360-000.

90451-166-000

Unavailable

54

WASHER A, THRUST (20MM) (NOT AVAILABLE)

90457-360-000

Unavailable

55

WASHER (20MM) (NOT AVAILABLE)

90461-360-000

Unavailable

56

WASHER (22MM) (NOT AVAILABLE)

90462-360-000

Unavailable

57

WASHER, COUNTERSHAFT THIRD SPLINE

90464-360-000

$4.87

58

WASHER, LOCK

90465-360-000

$6.74

59

WASHER B, THRUST (22MM)

90455-ML7-000

$4.85

59

WASHER B, THRUST (22MM) (BLUE) This part replaces 90502-360-000.

90455-ML7-000

$4.85

60

WASHER, THRUST (18MM) (NOT AVAILABLE)

90503-360-000

Unavailable

61

WASHER (10MM) (NOT AVAILABLE)

90504-360-000

Unavailable

62

SET-RING (20MM)

90601-360-000

$9.19

63

SET-RING, COUNTER SECOND

90602-360-000

$9.66

64

SET-RING (15MM) (NOT AVAILABLE)

90603-360-000

Unavailable

65

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

65

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

66

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

66

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

66

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

66

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

66

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

66

NUT, HEX. (6MM)

94001-06200-0S

$1.49

66

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

67

NUT, HEX. (10MM) (SOURCE: VINTAGE PARTS INC.)

94002-10090-0S

Unavailable

68

WASHER, SPRING (6MM)

94111-06000

$1.49

69

PLATE B, FIXING | Use from Engine SN 1002064 This part replaces 23811-028-000.

95014-92100

$1.49

69

PLATE B, FIXING | Use from Engine SN 1002064

95014-92100

$1.49

69

PLATE B, FIXING

95014-92100

$1.49

70

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
