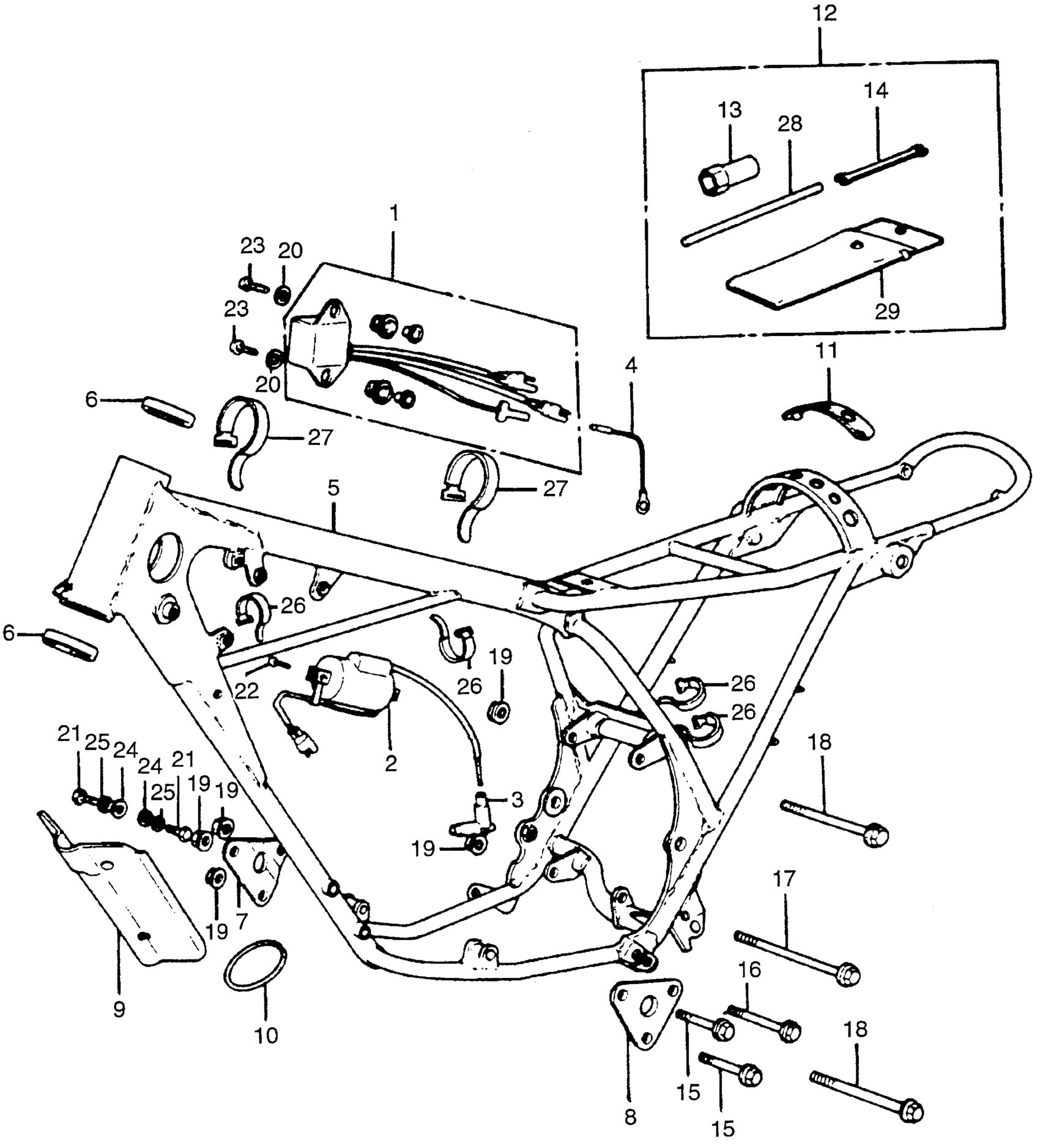

Honda CR125M1A MOTORCYCLE, JPN, VIN# CR125M-2000006 TO CR125M-2018555 FRAME + C.D.I. UNIT + IGNITION COIL Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL ASSY. (CDI)

30400-360-003

Unavailable

2

COIL, C.D.I. (NOT AVAILABLE)

30500-360-003

Unavailable

3

TERMINAL ASSY., COIL (NOT AVAILABLE)

30700-360-701

Unavailable

5

FRAME *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50100-360-000B.

50100-360-700B

Unavailable

5

FRAME *NH1* (BLACK) (NOT AVAILABLE)

50100-360-700B

Unavailable

6

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

6

RACE, STEERING TOP BALL

50301-041-010

$12.39

6

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

7

PLATE, R. ENGINE HANGER (NOT AVAILABLE)

50351-360-000

Unavailable

8

PLATE, L. ENGINE HANGER (NOT AVAILABLE)

50352-360-000

Unavailable

9

SPLASH GUARD, ENGINE (NOT AVAILABLE)

61141-357-810

Unavailable

10

RING, SPLASH GUARD (NOT AVAILABLE)

61143-357-810

Unavailable

11

RUBBER, SEAT MOUNT (NOT AVAILABLE)

77106-357-000

Unavailable

12

TOOL SET (NOT AVAILABLE)

89010-360-000

Unavailable

13

WRENCH, BOX (P21) (NOT AVAILABLE)

89216-357-000

Unavailable

14

SPANNER, SPOKE (NOT AVAILABLE)

89217-360-000

Unavailable

15

BOLT, HEX. (8X59) (NOT AVAILABLE)

90101-360-000

Unavailable

16

BOLT, HEX. (8MM) (NOT AVAILABLE)

90103-357-000

Unavailable

17

BOLT, HEX. (8X147) (NOT AVAILABLE)

90103-360-000

Unavailable

18

BOLT, HEX. (8X104) This part replaces 90104-360-000.

90104-360-405

Unavailable

19

NUT, HEX. (8MM)

90309-357-000

$3.40

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

22

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

23

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

23

SCREW, PAN (6X20)

93500-06020-0A

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

BAND B1, CABLE

32161-404-000

$2.23

26

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

27

BAND A2, CABLE

95014-61200

$2.33

28

BAR A, HANDLE

99005-01000

$1.49

29

BAG, TOOL

89101-ME5-670

Unavailable

29

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
