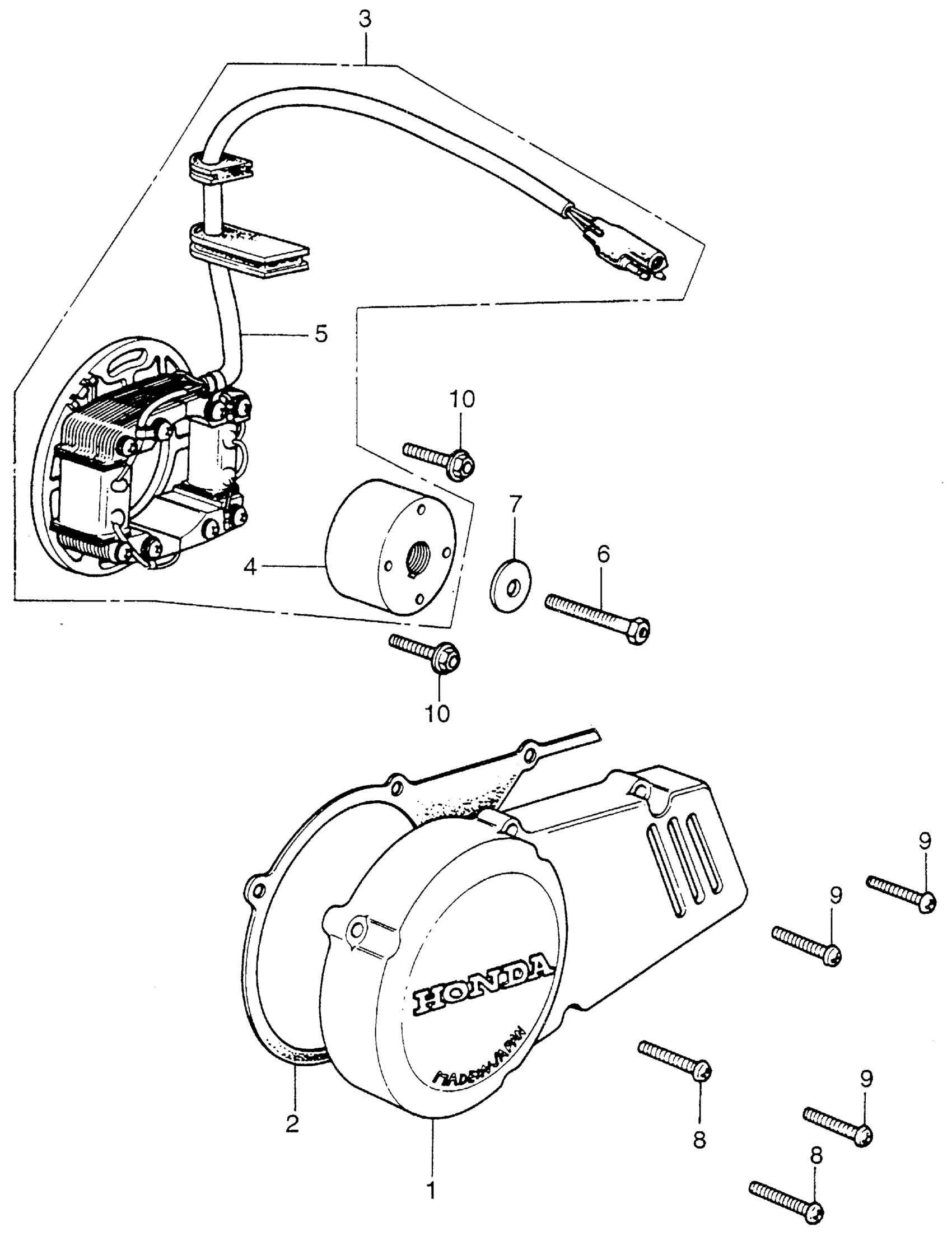

Honda CR125M1A MOTORCYCLE, JPN, VIN# CR125M-2000006 TO CR125M-2018555 ALTERNATOR + LEFT CRANKCASECOVER Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-360-000

Unavailable

GASKET, L. This part replaces 11395-360-000.

11395-360-306

Unavailable

GASKET, L. This part replaces 11395-360-700.

11395-360-306

Unavailable

ALTERNATOR ASSY. (KOKUSAN) (NOT AVAILABLE)

31100-360-003

Unavailable

ROTOR (KOKUSAN)

31101-360-003

Unavailable

STATOR (KOKUSAN) (NOT AVAILABLE) This part replaces 31102-360-003.

31102-360-701

Unavailable

STATOR (KOKUSAN) (NOT AVAILABLE)

31102-360-701

Unavailable

BOLT, SET (8X37) (NOT AVAILABLE)

90014-360-000

Unavailable

WASHER, SPECIAL (28X8.5X4.0)

90435-611-000

$8.69

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

SCREW, PAN (6X20)

93500-06020-0A

$1.49

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
