Description

Price

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.65

11009A

GASKET,TAIL LAMP

11009-1581

$6.89

11043

BRACKET,LICENSE PLATE

11043-1440

$27.35

11043A

BRACKET,LICENSE PLATE LAMP

11043-1497

Unavailable

14024

COVER,LICENSE PLATE LAMP

14025-1821

$20.00

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

Unavailable

23016

LAMP-ASSY,LICENSE PLATE

23016-1053

$72.93

23025

LAMP-TAIL

23025-1139

Unavailable

23026

LENS,LAMP

23026-1054

$9.28

23026A

LENS,TAIL LAMP

23026-1079

$32.10

23027

BODY-COMP-TAIL LAMP

23027-1069

Unavailable

92001

BOLT,6X20

92001-1773

$3.96

92002

BOLT,6X14

92002-1351

$4.31

92009

SCREW,TAPPING,4X20

92009-1297

$4.18

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92027

COLLAR 6.8X10X10.5

92027-120

$5.00

92027A

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 8W

92069-1012

$5.18

92075

DAMPER,10X24X12

92075-1690

$5.00

92075A

DAMPER,CASE

92075-222

$7.34

220

SCREW PAN HEAD 4X10

220B0410

$2.30

235

SCREW-PAN-WP-CROS,6X16

235C0616

$4.02

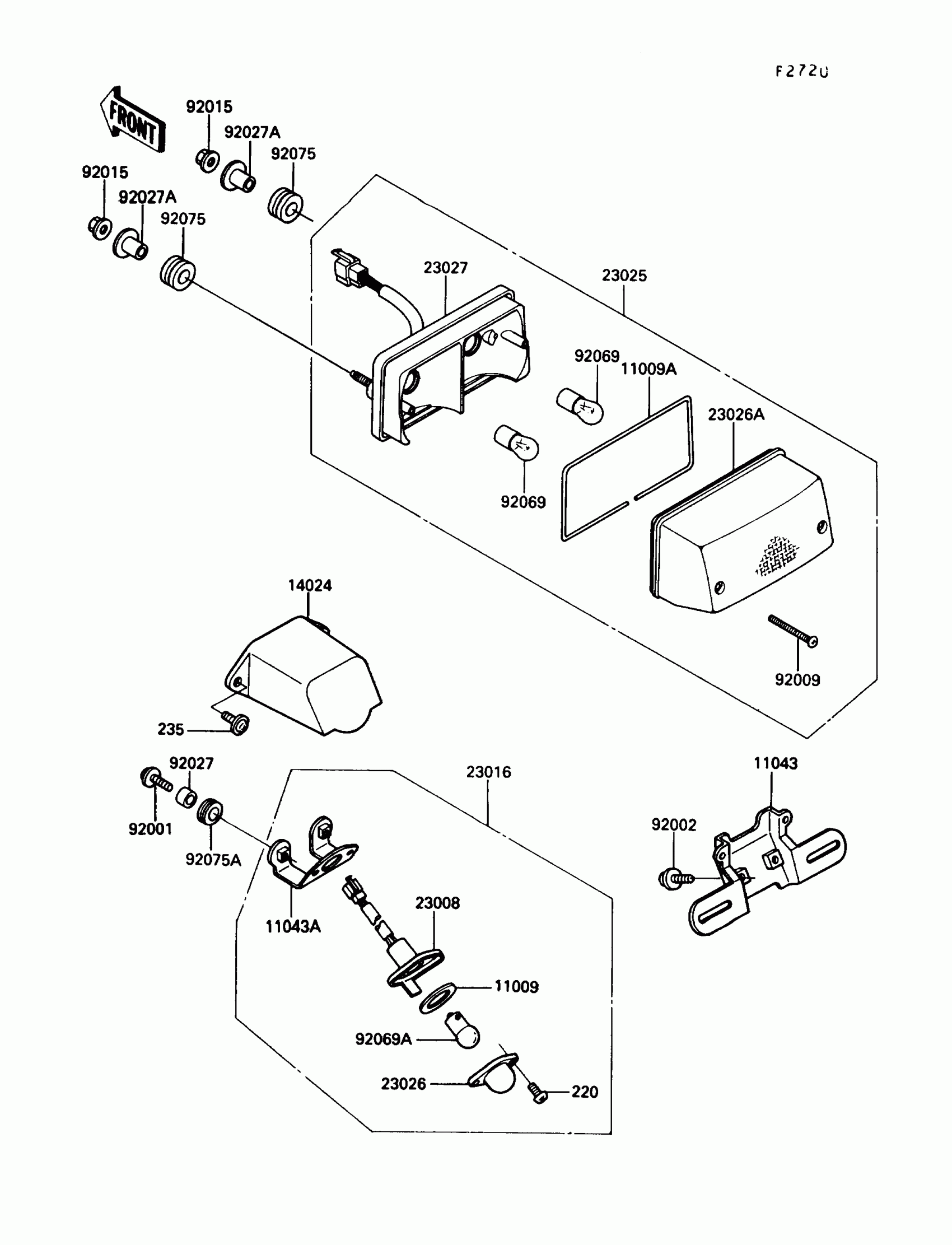

Kawasaki Concours Tail Lamp Diagram

GASKET,LICENSE PLATE LAMP

GASKET,TAIL LAMP

BRACKET,LICENSE PLATE

BRACKET,LICENSE PLATE LAMP

COVER,LICENSE PLATE LAMP

SOCKET-ASSY,LICENSE PLATE LAMP

LAMP-ASSY,LICENSE PLATE

LAMP-TAIL

LENS,LAMP

LENS,TAIL LAMP

BODY-COMP-TAIL LAMP

BOLT,6X20

BOLT,6X14

SCREW,TAPPING,4X20

NUT,FLANGED,6MM

COLLAR 6.8X10X10.5

COLLAR,L=13.1

BULB,12V 27/8W

BULB,12V 8W

DAMPER,10X24X12

DAMPER,CASE

SCREW PAN HEAD 4X10

SCREW-PAN-WP-CROS,6X16
