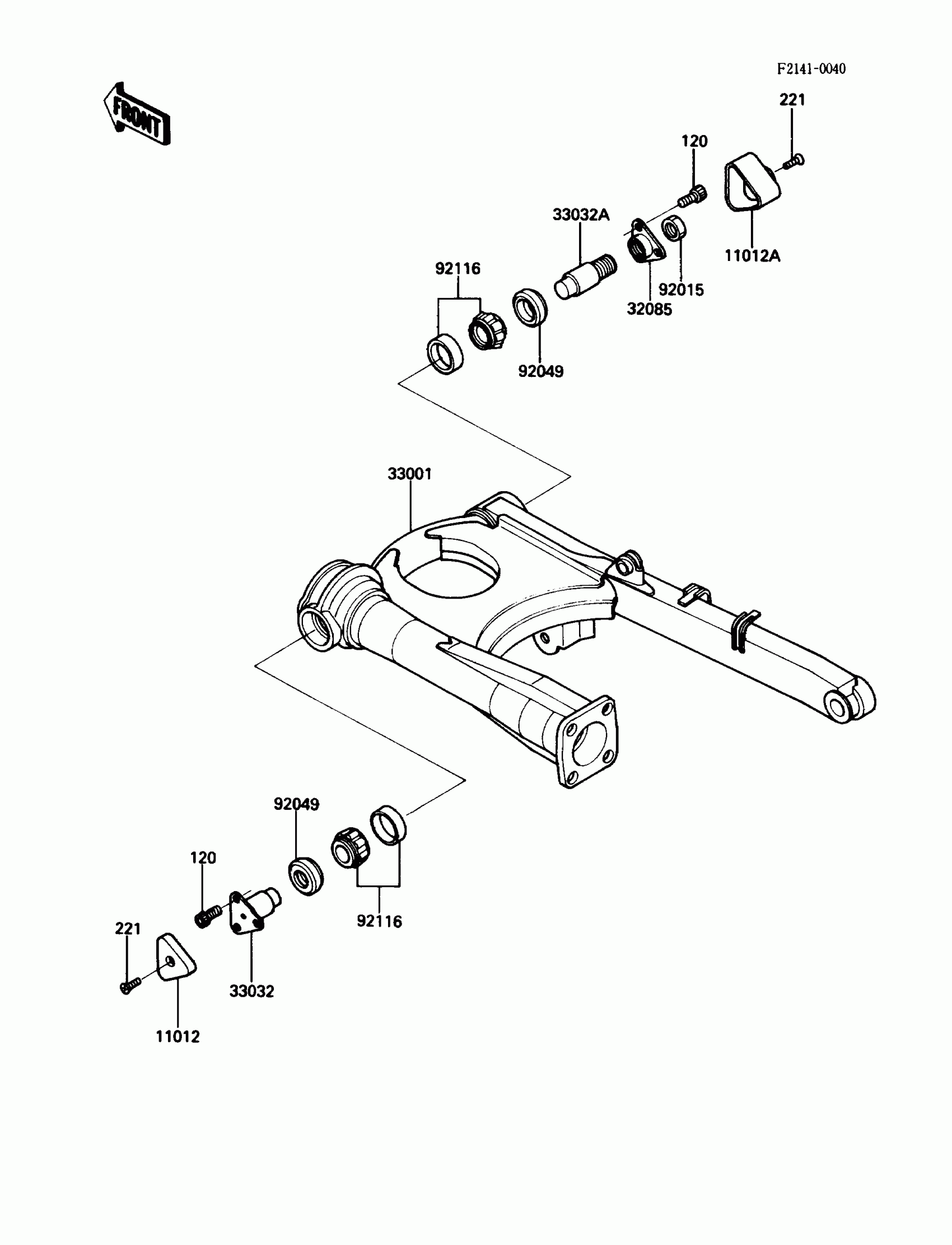

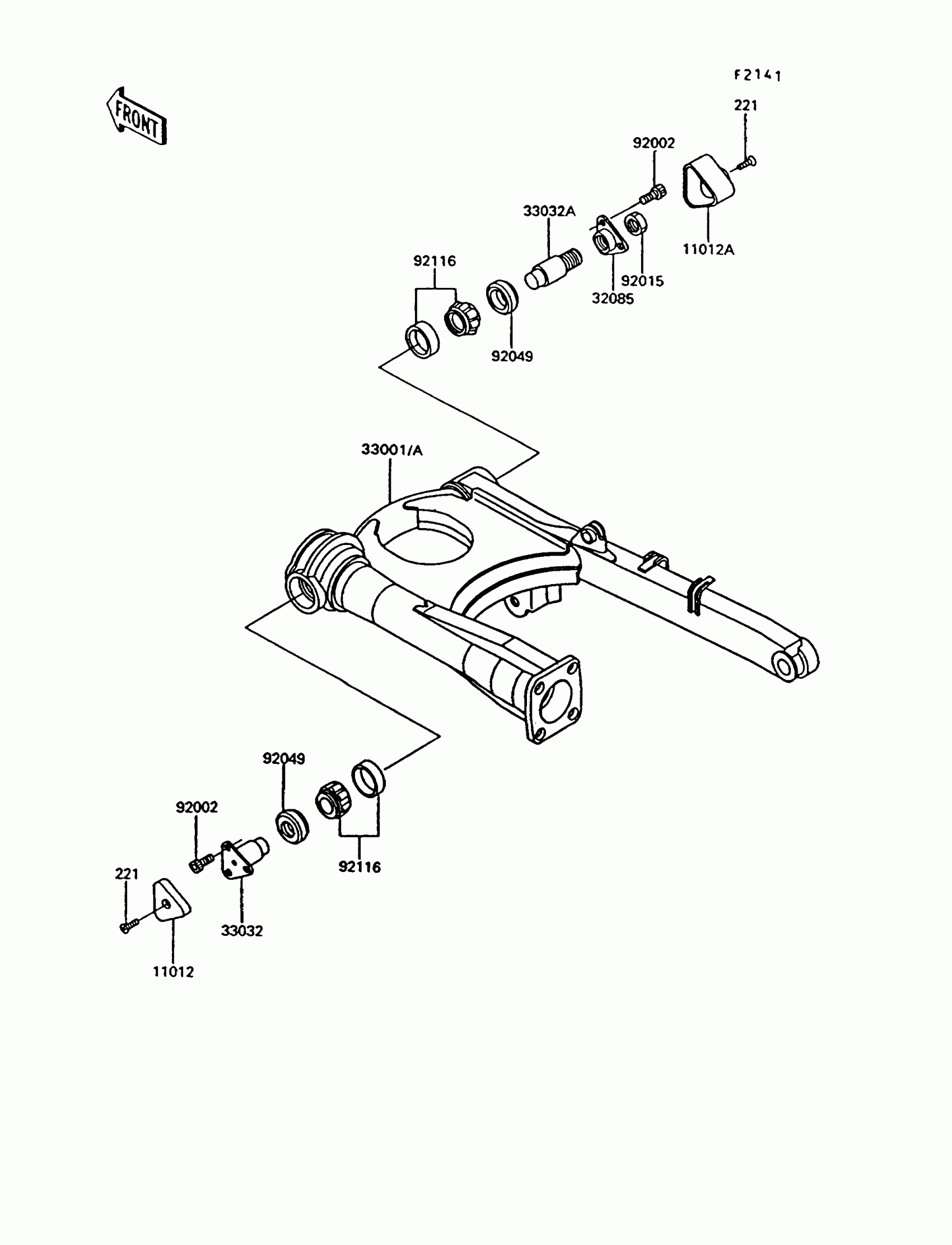

Find the part on the Swingarm diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM,LH

11012-1512

1

$14.44

In stock

11012A

CAP,SWING ARM,RH

11012-1518

1

$14.44

In stock

32085

1

$46.64

In stock

33001

ARM-COMP-SWING

33001-1267

1

$736.97

In stock

33032

SHAFT-SWING ARM,LH

33032-1122

1

$72.17

In stock

33032A

SHAFT-SWING ARM,RH

33032-1123

1

$54.30

In stock

92015

NUT,20MM

92015-1589

1

$5.88

In stock

92049

SEAL-OIL,26X42X6

92049-1256

1
Out of stock

92116

1

$41.34

In stock

120

BOLT-SOCKET,8X20

120P0820

1
Out of stock

221

SCREW-CSK-CROS,6X20

221C0620

1
Out of stock
