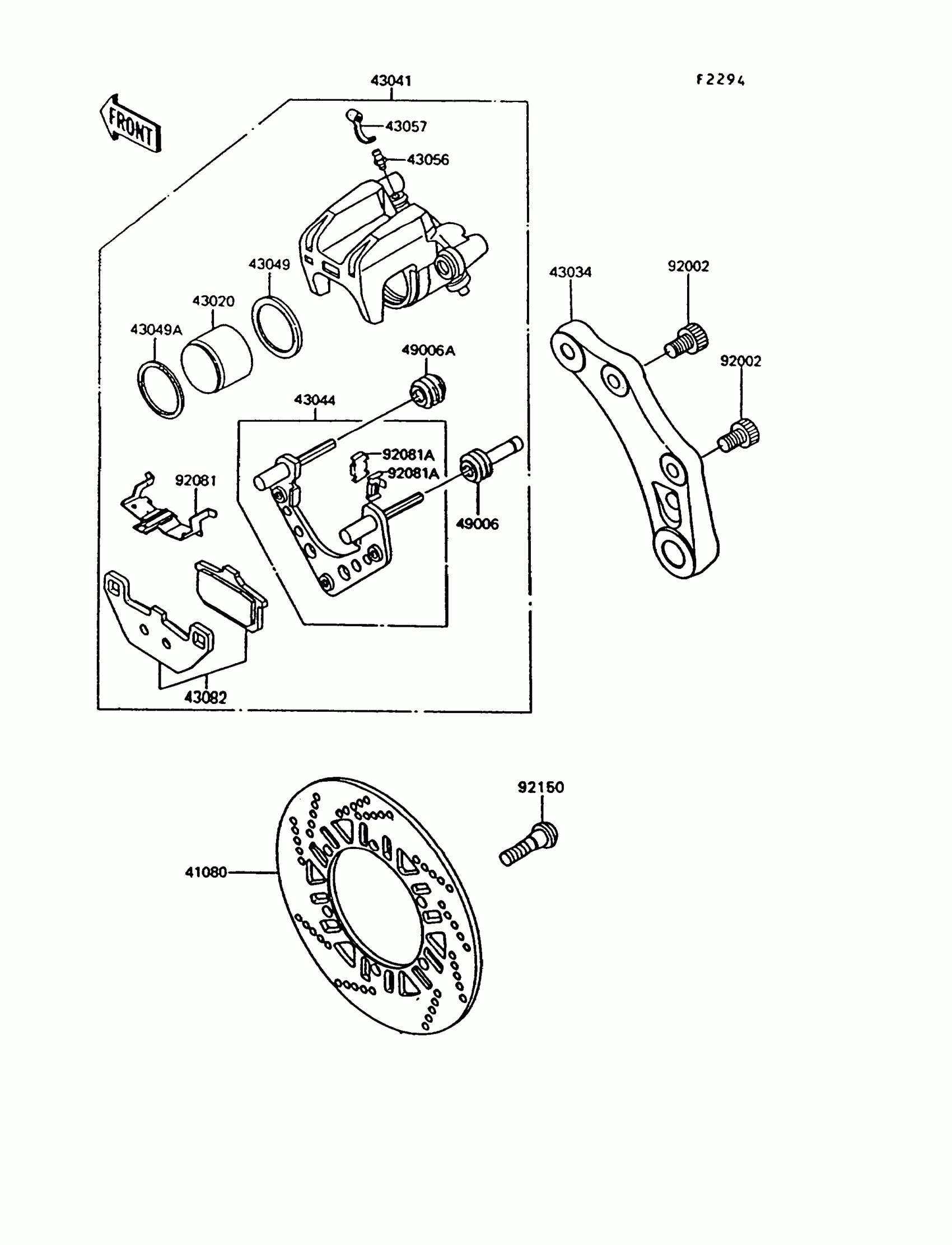

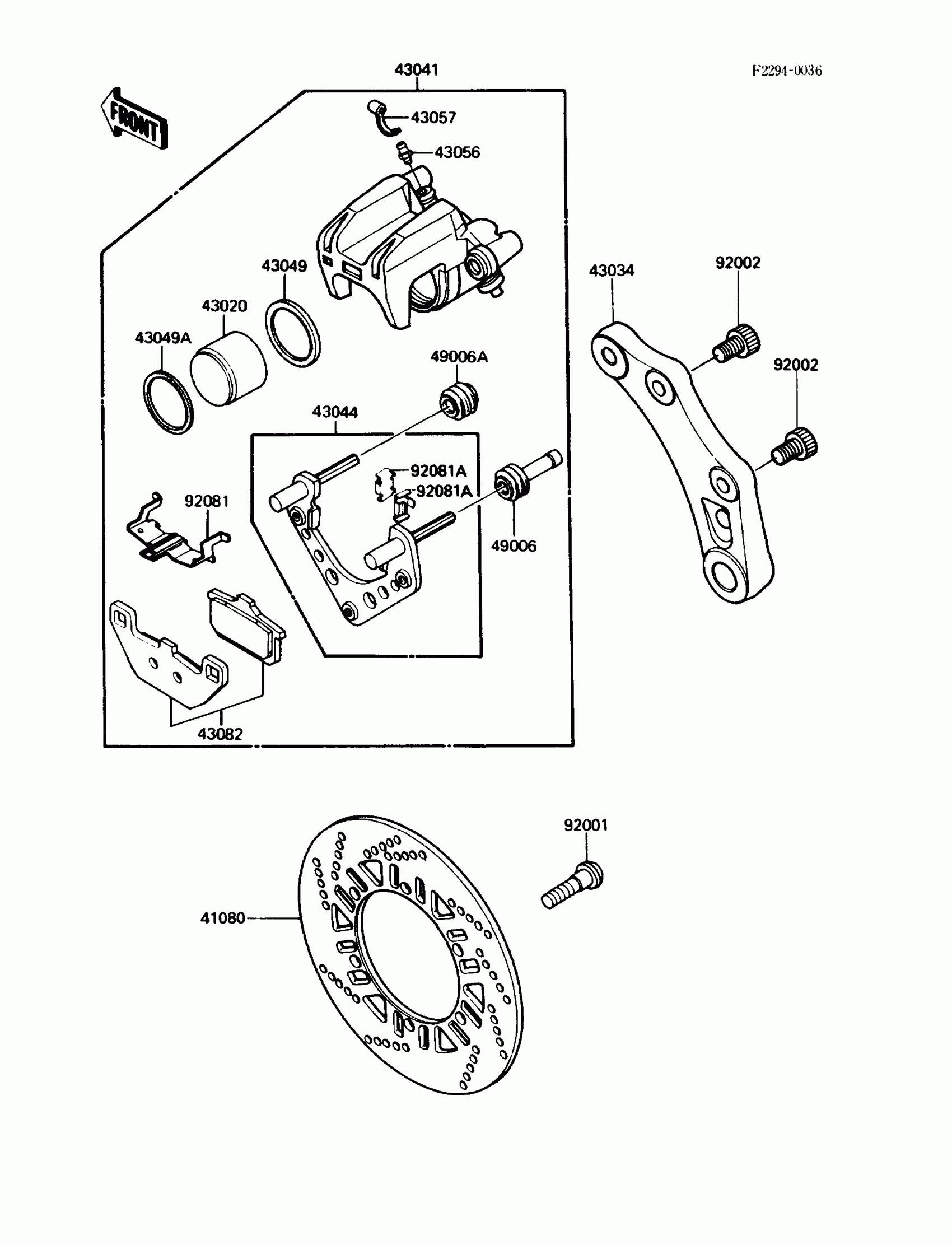

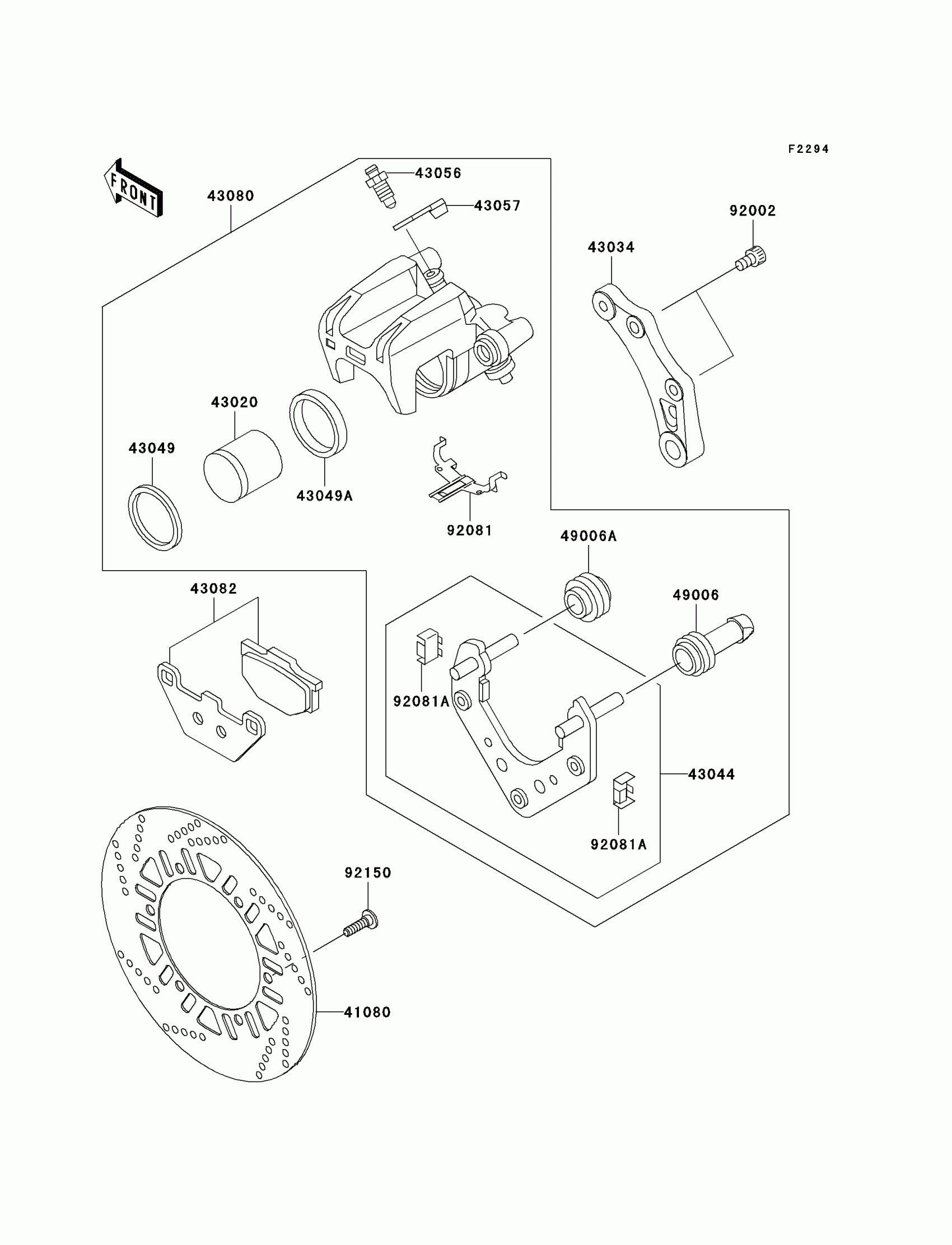

Kawasaki Concours Rear Brake Diagram

Description

Price

41080

DISC,RR

41080-1170

$449.85

43020

PISTON-COMP-BRAKE

43020-1066

$105.36

43034

HOLDER-BRAKE,RR CALIPER

43034-1069

$179.14

43041

CALIPER-ASSY,RR

43041-1318

$415.81

43044

HOLDER-COMP-CALIPER,FR,RH

43044-1036

$166.32

43049

PACKING,PISTON SEAL

43049-002

$13.90

43049A

PACKING,PISTON

43049-1028

$12.65

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1062

$61.15

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT,SOCKET,10X17

92002-1713

$7.34

92081

SPRING,PAD

92081-1525

$19.48

92081A

SPRING,PAD STOPPER

92081-1661

$11.80

92150

BOLT,8X30

92150-1728

$4.69
